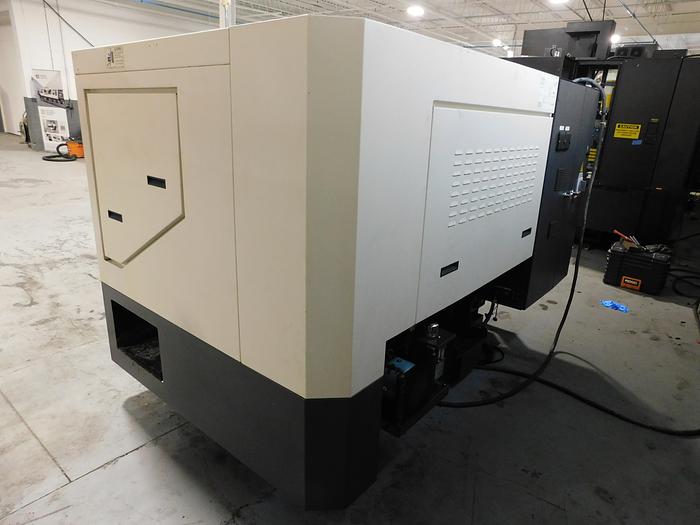

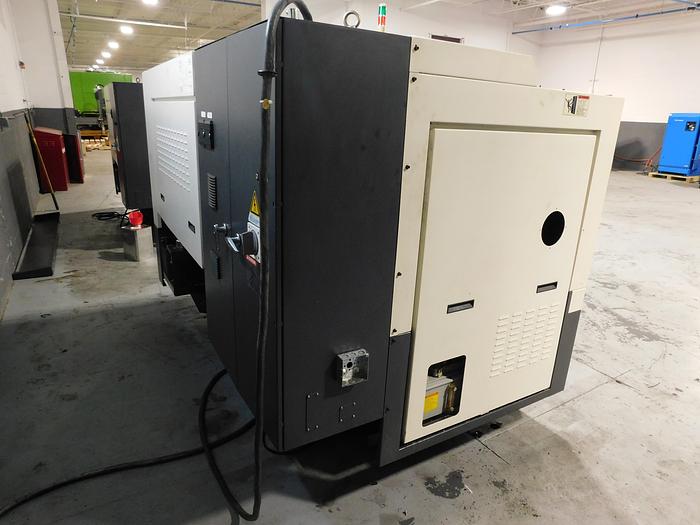

Hwacheon Hi-Tech 200A CNC Turning Center

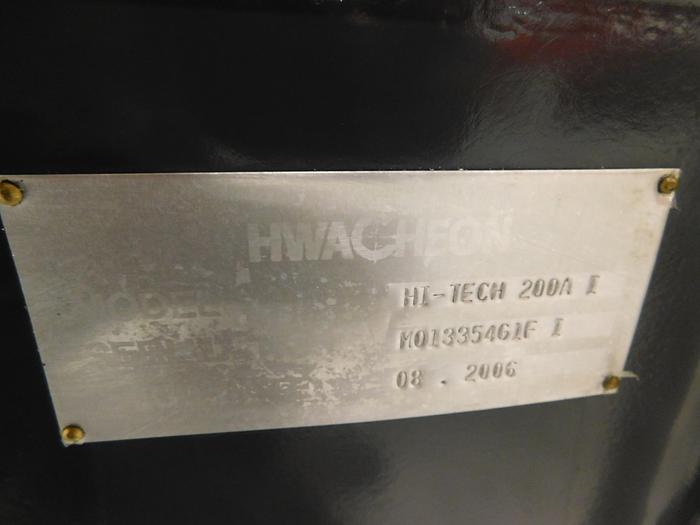

MAKE: HWACHEON

MODEL: HI-TECH 200A

YEAR: 2006

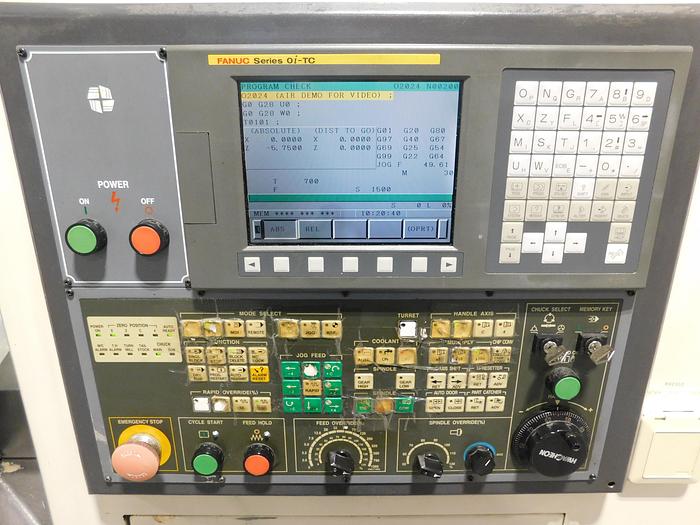

CONTROLS: FANUC 0iTC

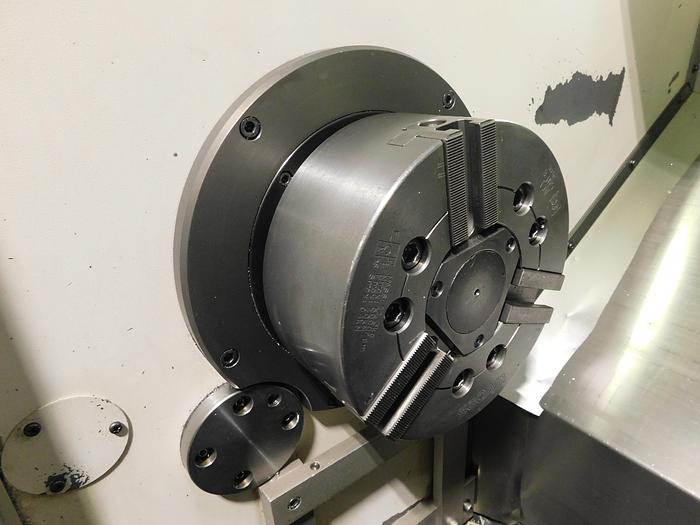

CHUCK: 8" 3-JAW HYD.

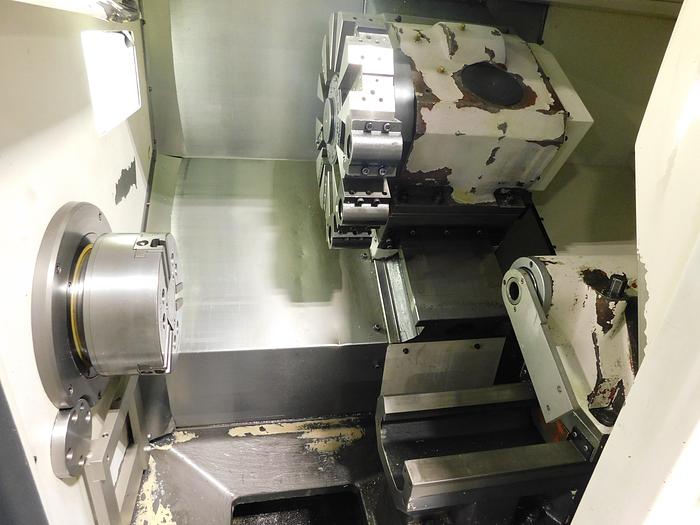

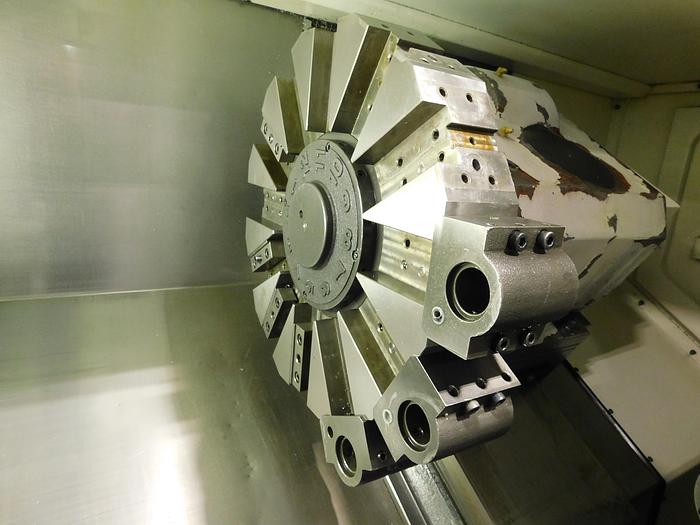

TURRET: 12 POSITION

MAXIMUM SWING: 19.7"

MAXIMUM TURNING DIAMETER: 13.8"

MAXIMUM TURNING LENGTH: 15.7"

BAR DIAMETER: 2"

SPINDLE NOSE: (A2-6)

SPINDLE BORE: 2"

SPINDLE SPEED: 5,000 RPM

SPINDLE HORSEPOWER: 15/20 HP

X-AXIS TRAVEL: 7.7"

Z-AXIS TRAVEL: 16.9"

RAPID TRAVERSE X/Z: 1181 IPM

TOOL SIZE, TURNING & FACING: 1" x 1"

BORING BAR MAX. DIAMETER: 1.5"

TAILSTOCK QUILL TAPER: MT#4

TAILSTOCK QUILL DIAMETER: 3.15"

TAILSTOCK QUILL STROKE: 3.94"

APPROX. FLOOR SPACE: 66" x 104"

APPROX. WEIGHT: 9,260 LBS

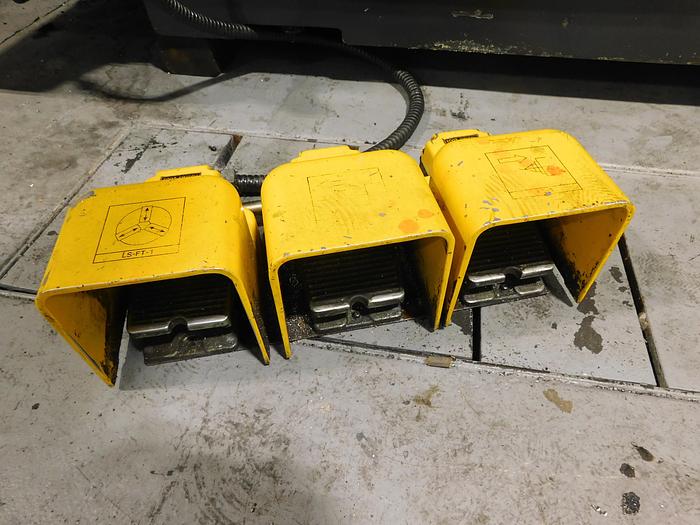

Includes: Manuals and Foot switches.
