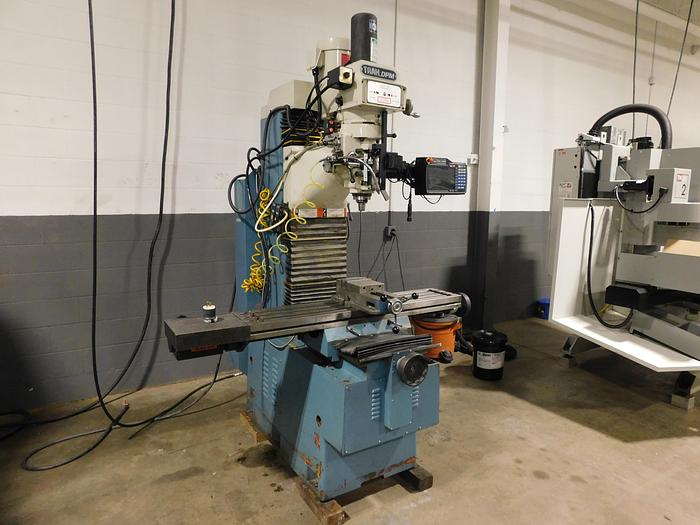

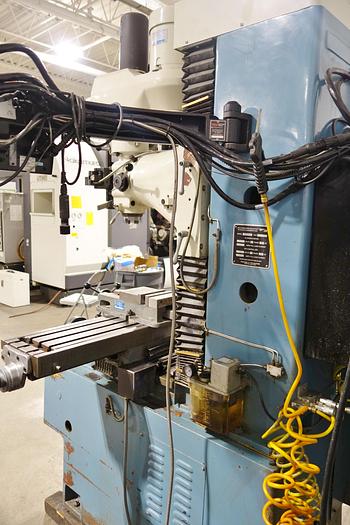

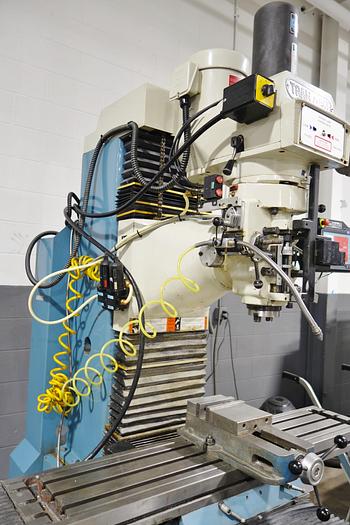

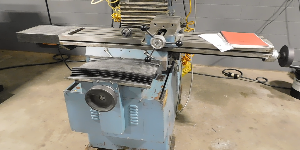

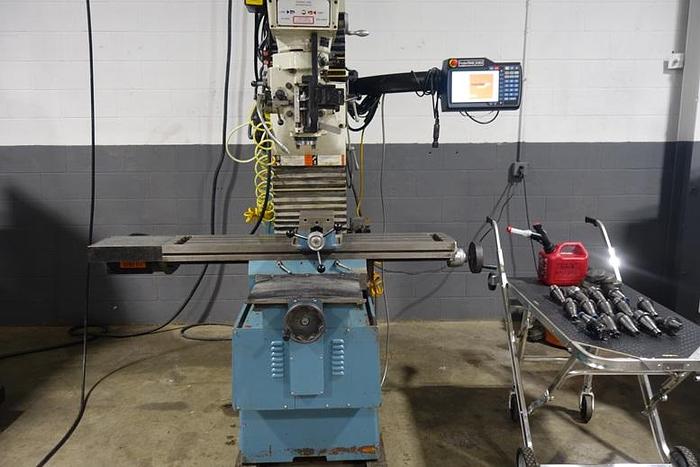

SWI Trak DPM CNC Knee Mill

Make: Southwestern Industries

Model: TRAK DPM

Table Size: 50” x 10”

Movement and Ranges;(XYZ)31”x 17” x 25”

Quill Travel Max: 5”

Quill Dia: 100 mm’

Spindle Taper: #40 NST, NMTB

Speed Range: 70 to 4,200 RPM

Spindle Nose to Table:( max part height) 0-25”

Spindle to Column Face: 17.3”

Quill Feeds: 0.002, 0.004, 0.006 Rev per minute

Head Swivel: Right and Left: 45 and 90 Degrees

Spindle Motor: 3 HP

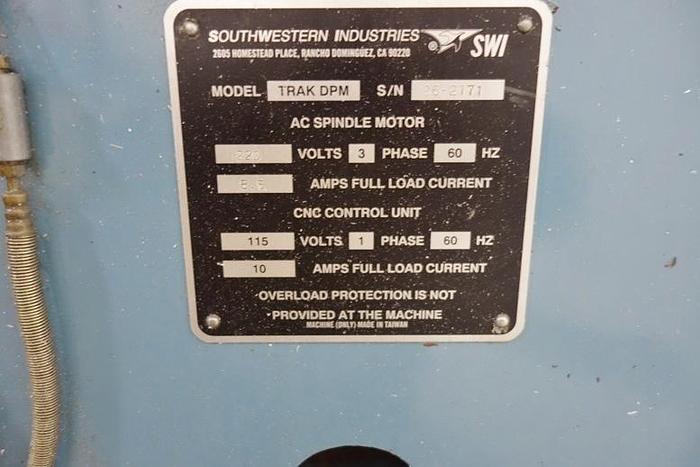

Electrical: 220V, 3ph

Maximum weight of Work Piece: 1,320 Lbs.

Weight approx.: 4,200 Lbs.

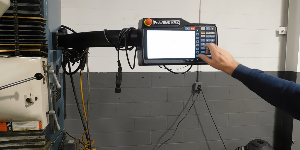

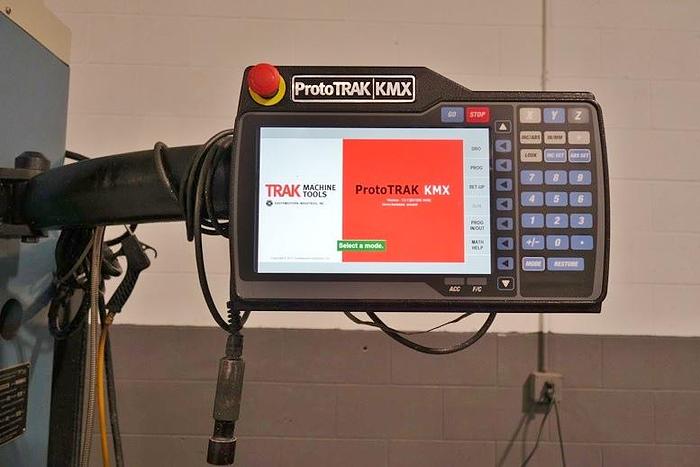

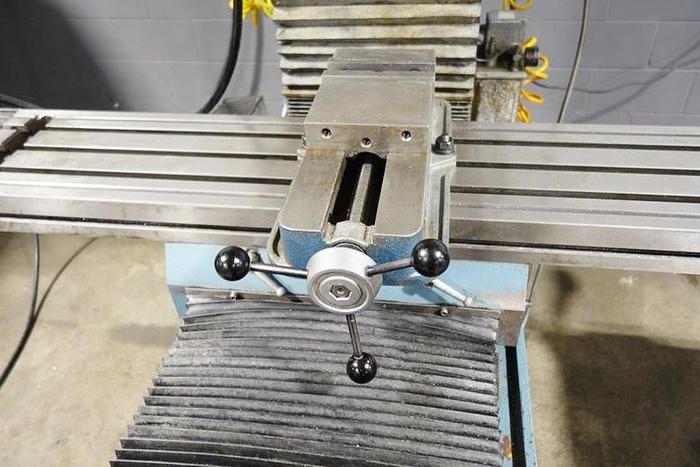

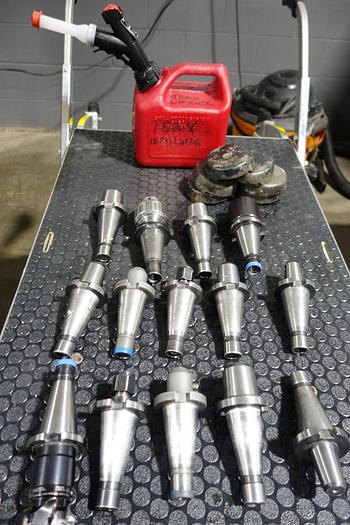

Equipped with: New upgraded KMX Control in 2022,  Assorted Tool Holders, Kurt Vice, Way Lube
