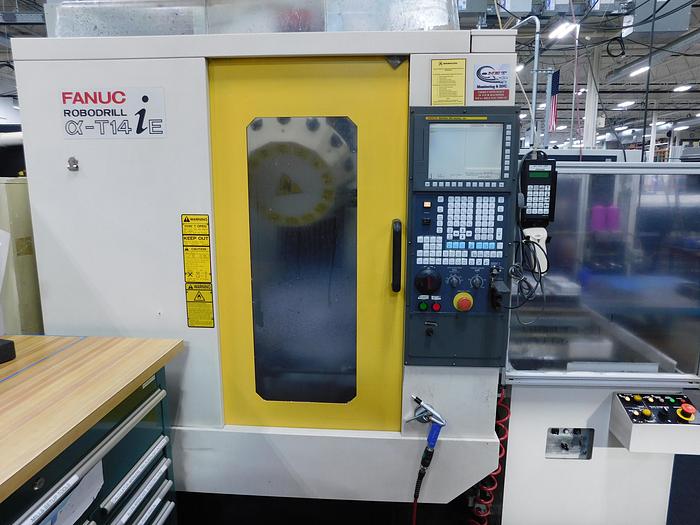

Fanuc Robodrill a-T14ie CNC Vertical Machining Center Pallet Shuttle

Make: Fanuc Robodrill

Model: Alpha T14ie

Year: 2005

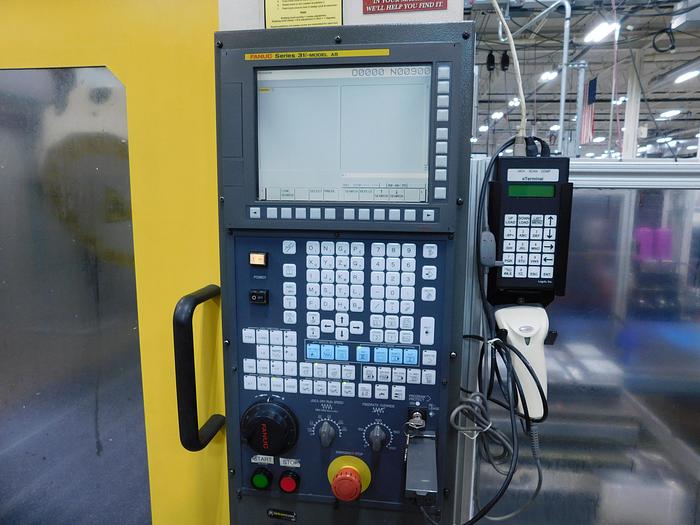

Machine Control: Fanuc 31i-B model A5

Table Size: 24.8" x 13"

Machine Travels (X/Y/Z): 11.8" x 11.8" x 13"

Spindle To Table Distance: 5.9" - 18.9"

Table Capacity: 660 Lbs.

Spindle Taper: BT-30 Spindle Taper

Spindle Speeds: 10,000 Max RPM

Rapid Traverse Rate (X/Y/Z): 2,125 IPM

Maximum Cutting Feed Rate: 1,181 IPM (2,362 Optional) 1.5 G Acceleration

Tool Changer Style: Turret

Tool Changer Capacity: 14 Stations

Tool Change Time: .9 Seconds

Max Tool Length: 9.8"

Max Tool weight: 6.6 Lbs.

Spindle Drive: 7.5 HP

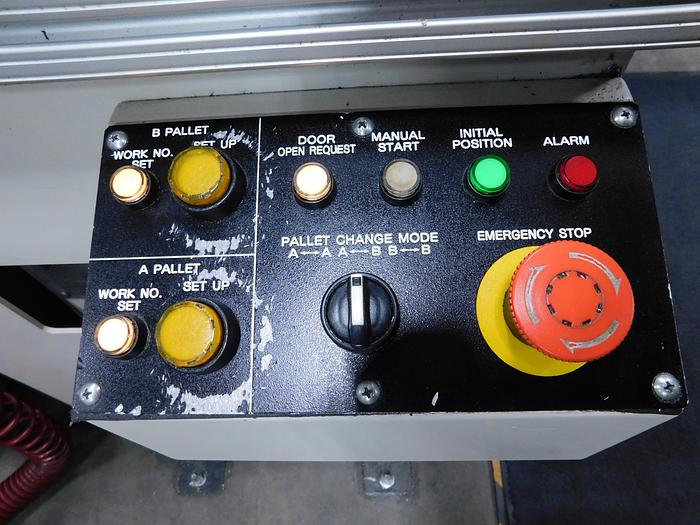

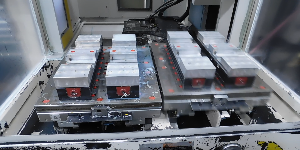

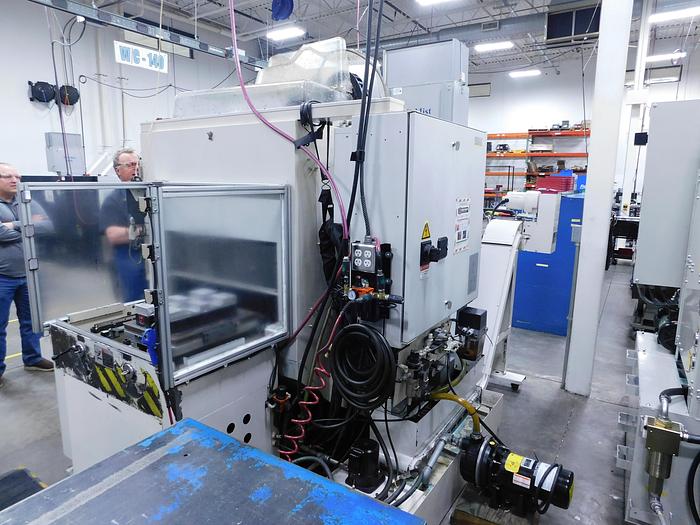

Pallet Shuttle: 2-Pallet

Each Pallet: 15"x20"

Electrical: 200/220V, 3Ph

Dimensions: 61"x84"x104"

Approximate Weight: 4,800Lbs

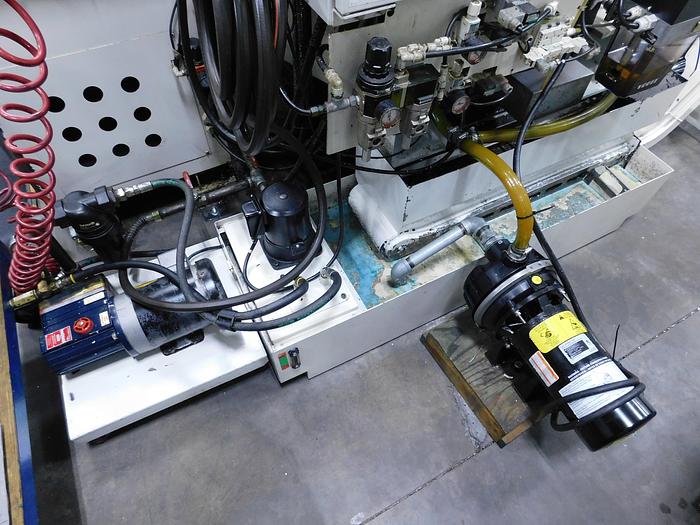

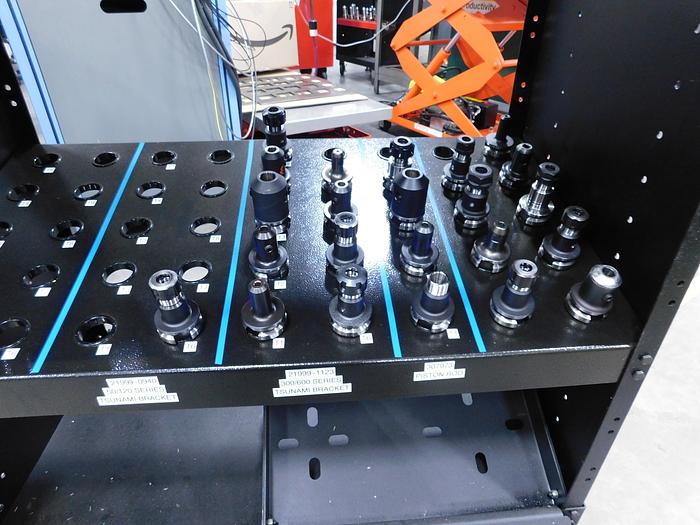

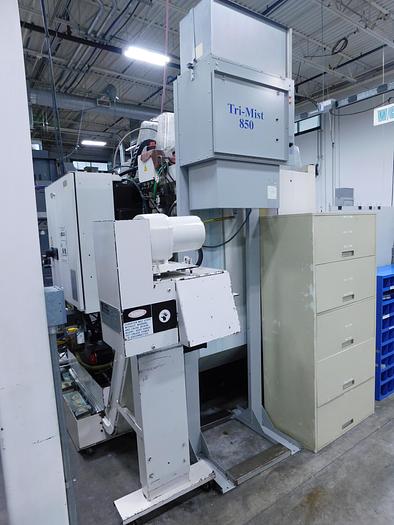

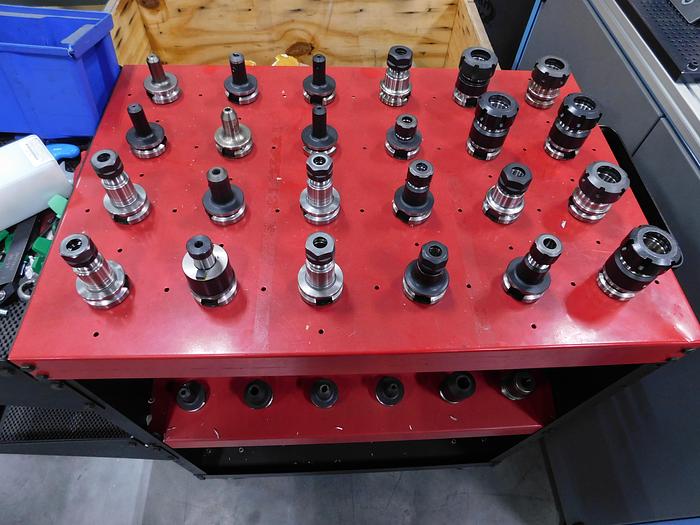

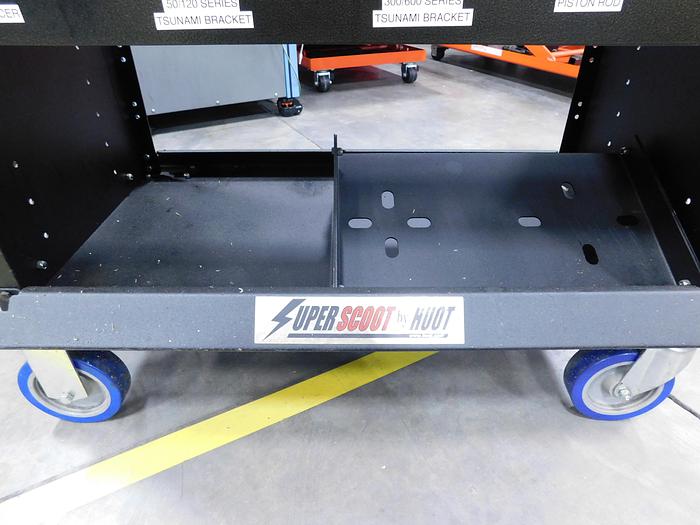

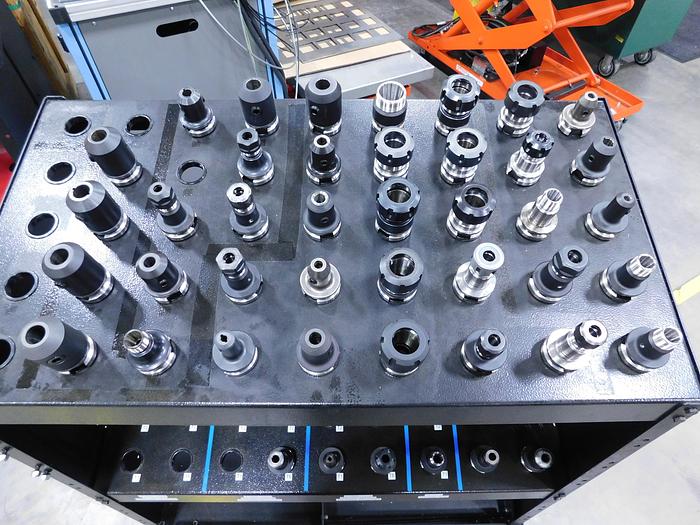

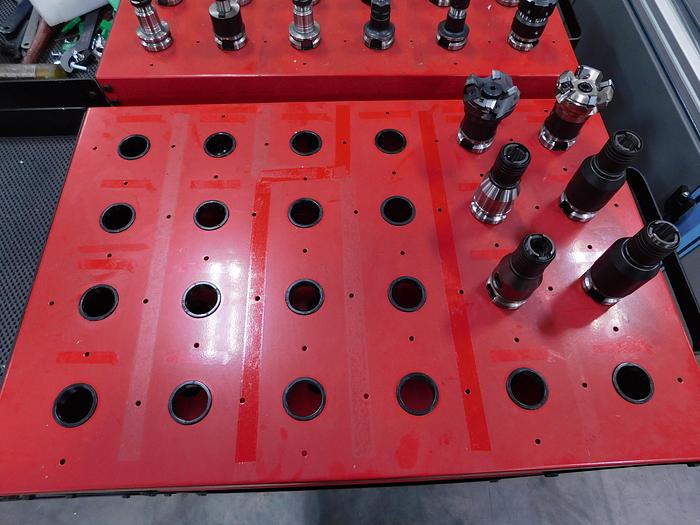

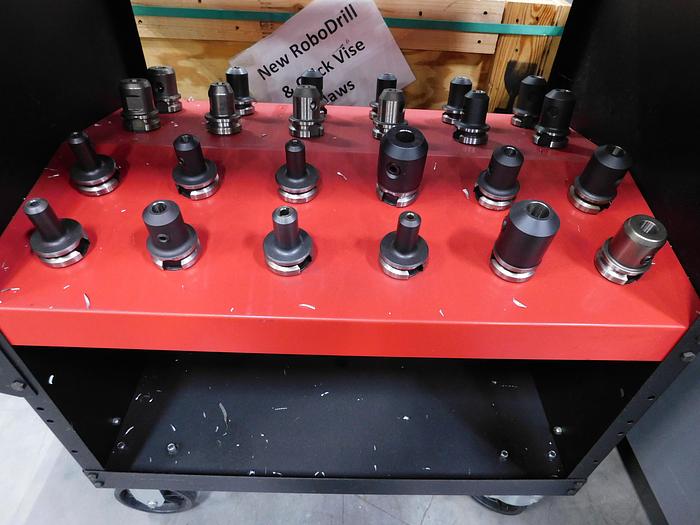

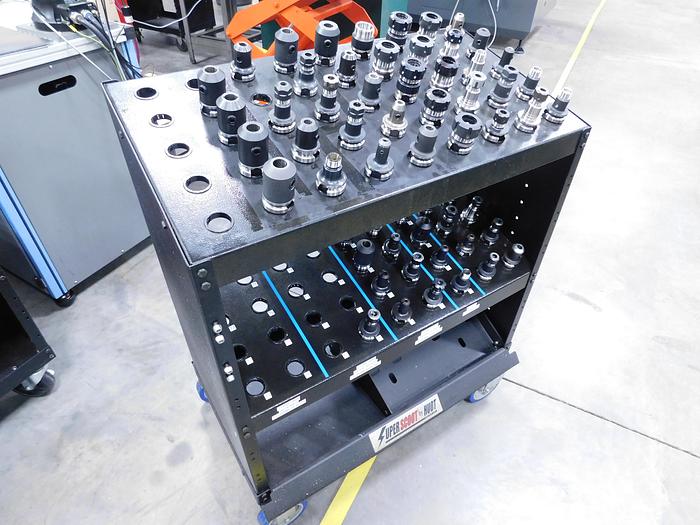

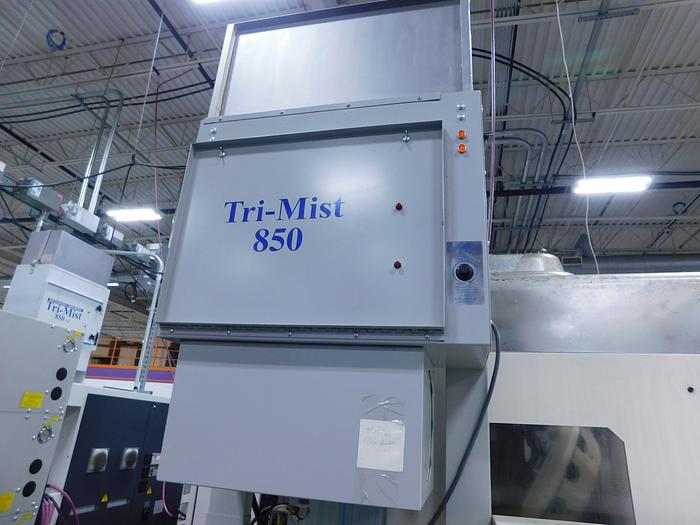

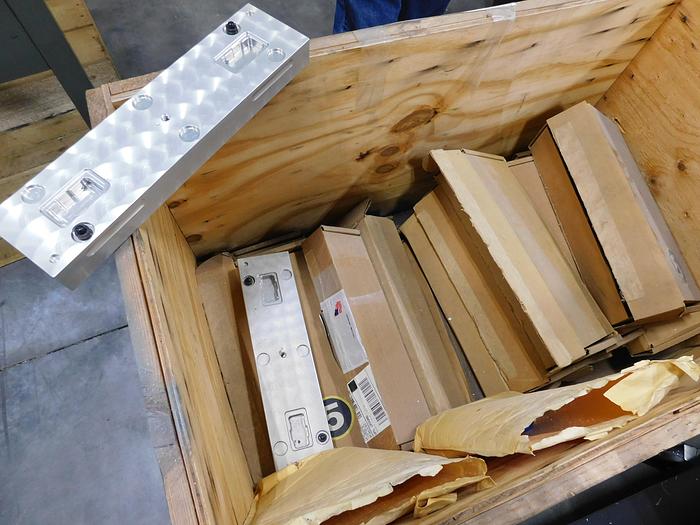

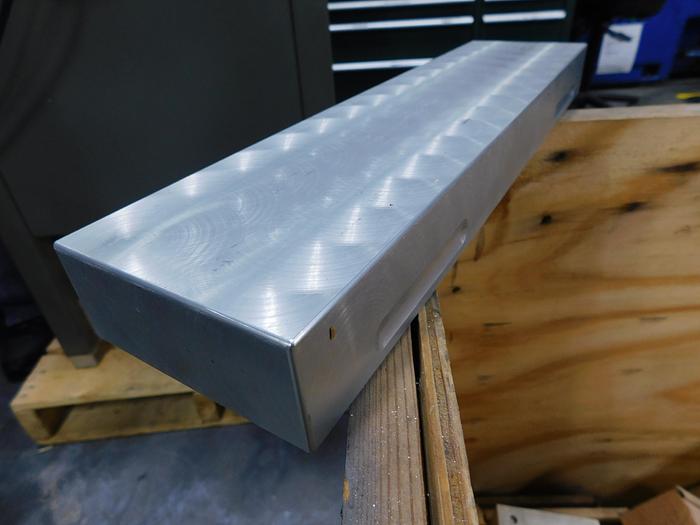

Includes: Chip conveyor, Coolant Pan, Pallet Shuttle system, Trimist Collector, Assortment of 50+ BT30-Tapered Tools holders/Carts, 4" Chic machine Vises / blank jaws and Machinery Manuals.
