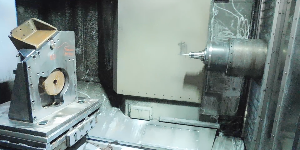

Mori Seiki NH6300DCGII CNC Horizontal Machining Center

Make: Mori Seiki

Model: NH6300DCGII CNC Horizontal Machining Center

Year: 2013

Control: F31iA

X-Axis Travel: 41.3″

Y-Axis Travel: 35.4″

Z-Axis Travel: 38.6″

Distance From Pallet Surface To Spindle Center: 3.9 – 39.4″

Distance From Pallet Center To Spindle Gauge Plane: 3.9 – 42.5″

Pallet

Distance From Floor Surface To Pallet Surface: 49.2″

Pallet Working Surface: 24.8 x 24.8″

Pallet Loading Capacity: 3,300 Pounds

Max. Workpiece Swing Diameter: 41.3″

Max. Workpiece Height: 51.1″

Pallet Surface Configuration: 24 Holes, M16 Tap, Pitch 5″

Minimum Pallet Indexing Angle: 1°

Pallet Indexing Time (Including Clamping And Unclamping): 2.0 Seconds (90°), 2.5 Seconds (180°)

Pallet Pool – CPP

Number of Pallets: 12 (modular, can add more)

Speed (with/without pallet) 131.2/82.0 ipm

Workpiece Setup Specifications: 45 Degree Turn Table System

Spindle

Max. Spindle Speed: 10,000 RPM

Number Of Spindle Speed Ranges: 1

Type Of Spindle Taper Hole: CAT50

Spindle Bearing Inner Diameter: 3.9″

Feedrate

Rapid Traverse Rate: X, Z: 1,968.5 Ipm, Y: 1,968.5 Ipm

Cutting Feedrate: X, Y, Z: 0.04 – 1,968.5 Ipm (Look-Ahead Control)

Max. Rotational Speed: B: 38.5 RPM

Jog Feedrate: 0 – 197.0 Ipm (20 Steps)

ATC

Type Of Tool Shank: CAT50

Type Of Retention Knob: DMG MORI 90° Type, 45° (MAS-I), 60° (MAS-II), HSK-A100, DIN

Tool Storage Capacity (Including One Tool At The Spindle Side): Chain-Type: 330

Max. Tool Diameter (With Adjacent Tools): 4.3″

Max. Tool Diameter (Without Adjacent Tools): 12.5″

Max. Tool Length: 24.8″

Max. Tool Mass: 66 Pounds

Max. Tool Mass Moment (From Spindle Gauge Line): 21.6 Ft-Lbf

Tool Changing Time: Tool-To-Tool: 1.7 Seconds, Cut-To-Cut (Chip-To-Chip): MAS: 4.4 Seconds, ISO 10791-9/JIS B6336-9: 16.6/4.5 Seconds (max./min.)

Motor

Spindle Drive Motor: 10,000Rpm

Feed Motor: X/Y/Z Axes: 6×2/7.5/7.5×2 HP, B Axis: 4 HP

Coolant Pump Motor: 1.5 HP (Spindle), 1.5 HP (Chip Removal), 3 HP (Shower Coolant)

Electrical: 66.0 kVA

Air Reserve: 72.5 Psi, 158.4 Gpm

Coolant Tank Capacity: 245.5 Gallons

Machine Height (From Floor): 134.4″

Floor Space (Width×Depth): 132.7 x 234.5″

Approximate Machine Weight: 41,800 Lbs.

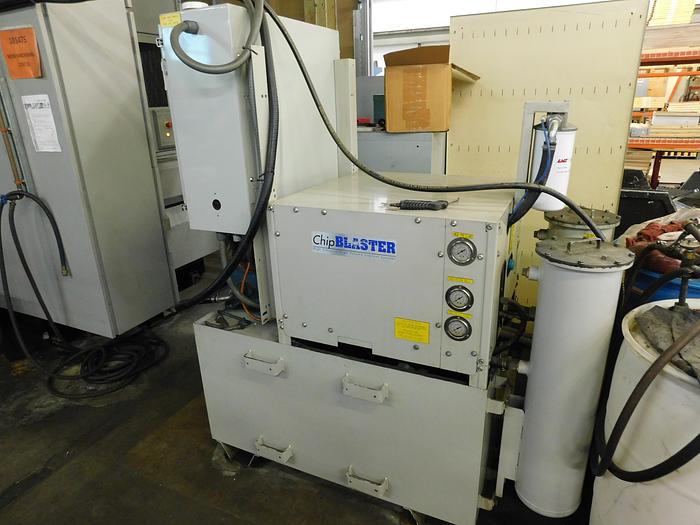

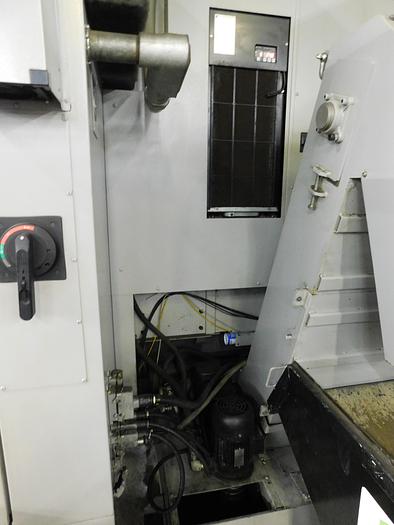

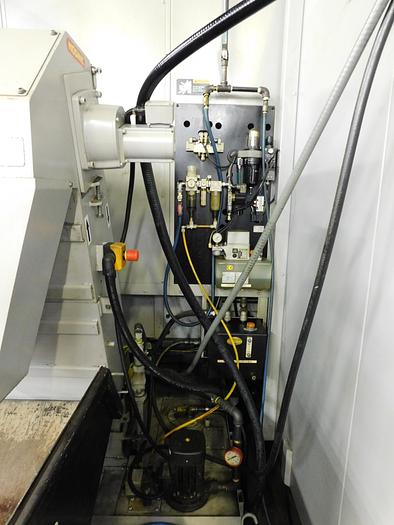

Features: CAT50 Tool Holder Matrix 330-Tool Magazine, Hi pressure Coolant chip blaster, Chip Conveyor, Coolant tank and Machinery manuals

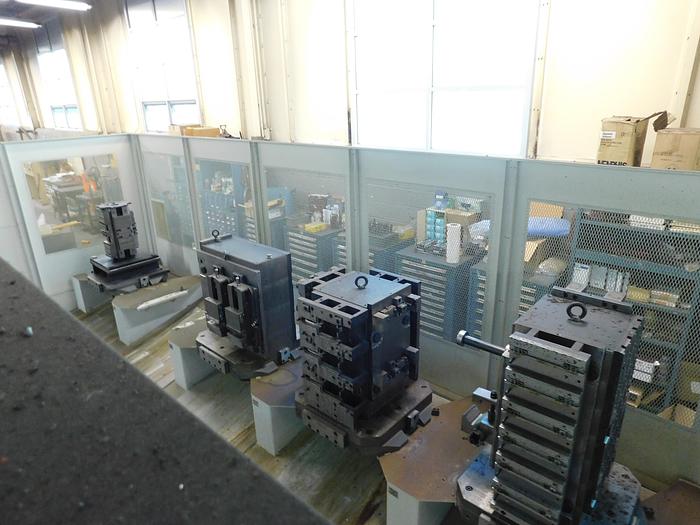

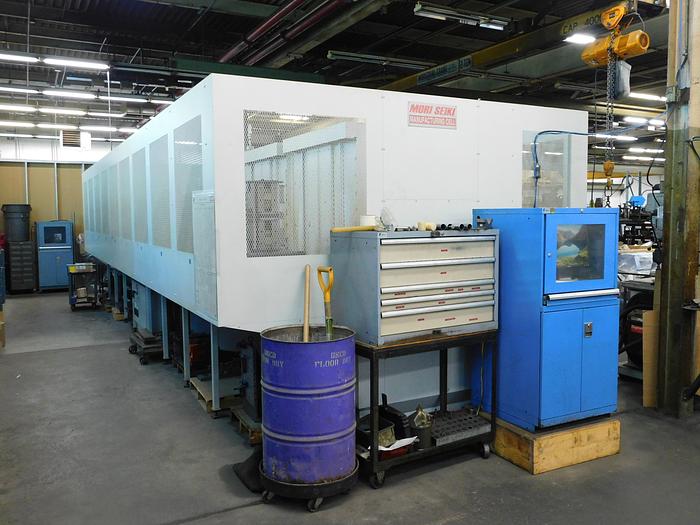

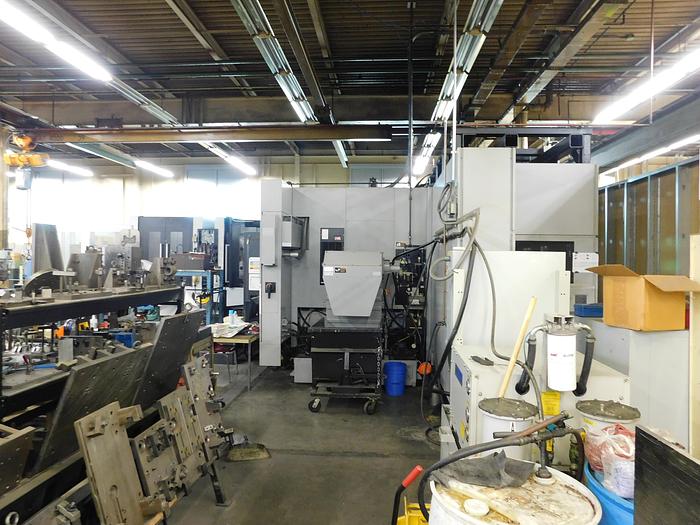

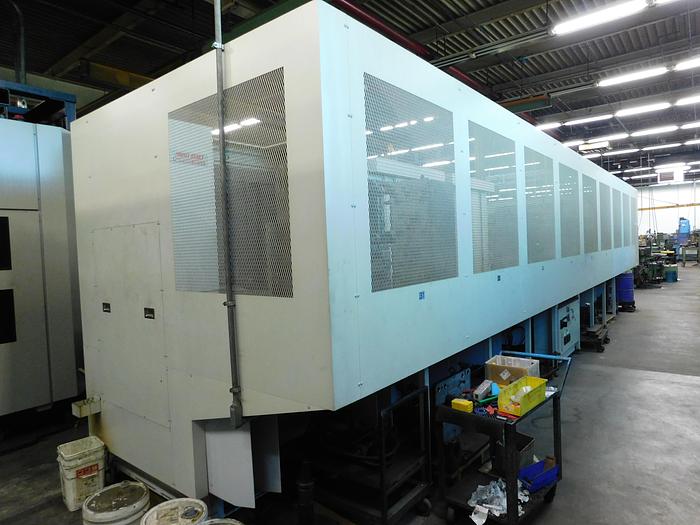

Mori Seiki NH6300IICPP 12-Pallet Pool

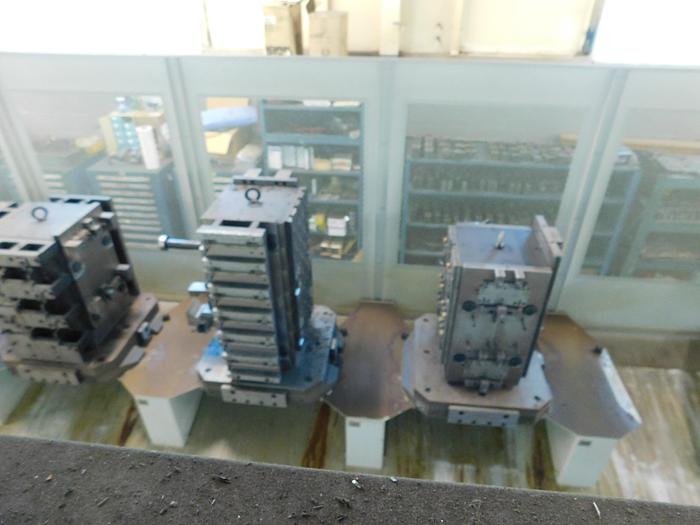

Features: Pallets, Tombstones, Control Panel, Pendant and Manuals

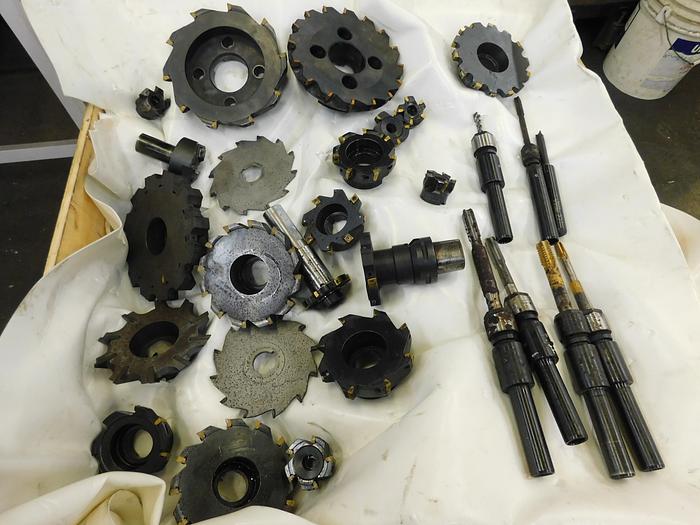

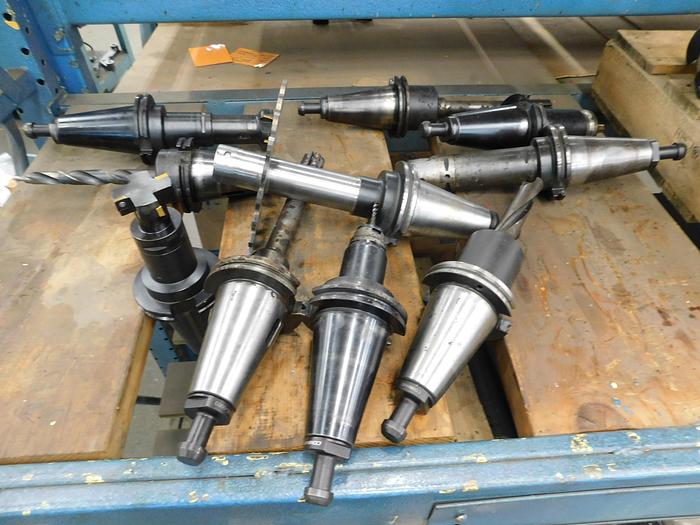

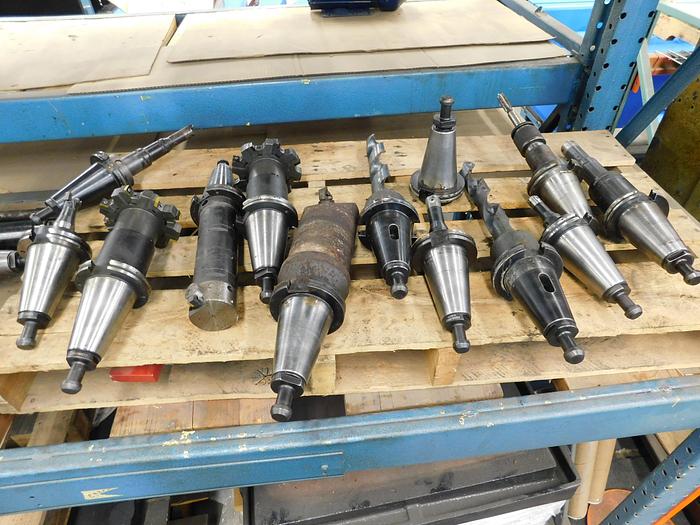

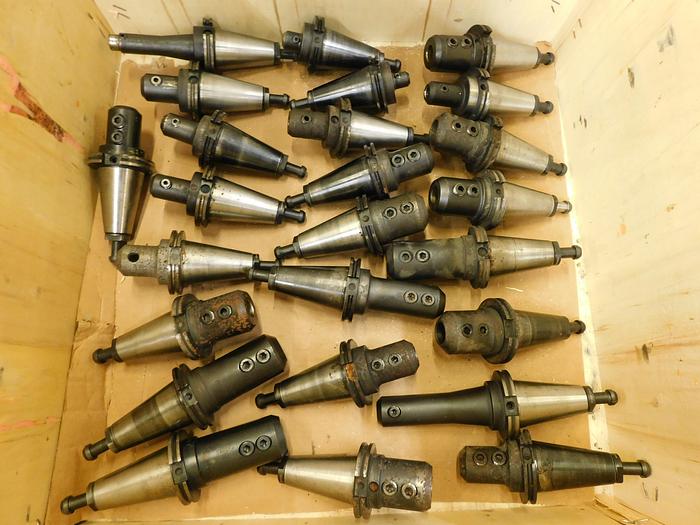

Includes over (300) Assorted CAT50 Tapered Tool Holders consisting of: Collet Chucks, Endmill holders, Shellmill holders, indexable Boring mills, Morse tapered chucks and Custom made Welded Steel-Platform
