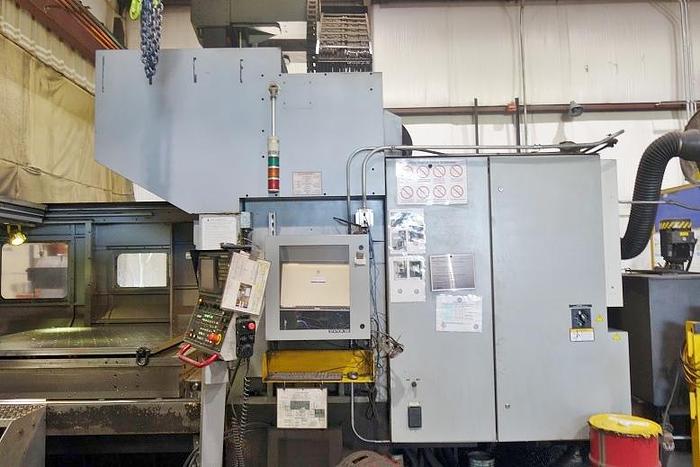

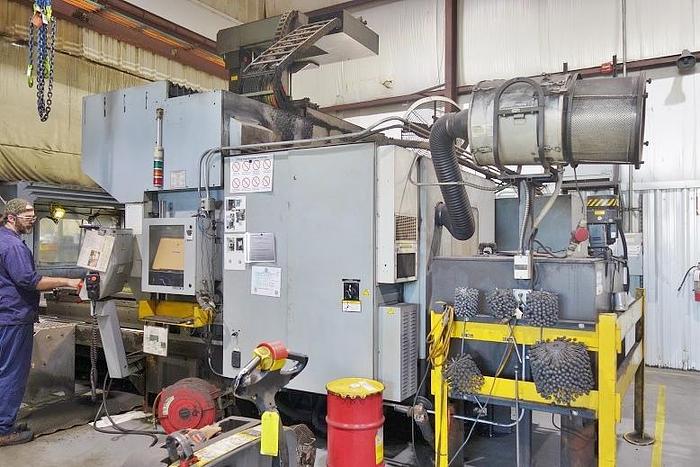

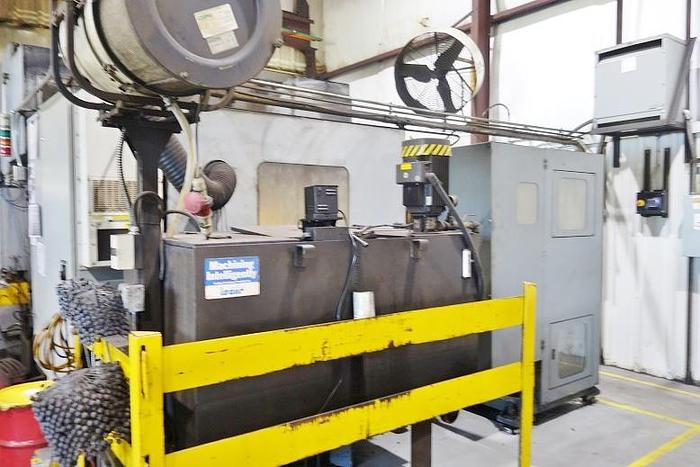

Toyoda Wele CNC Vertical Bridge Mill Fanuc

Make: Toyota Wele

Model: SB 216 Vertical Bridge Mill

Machining Center

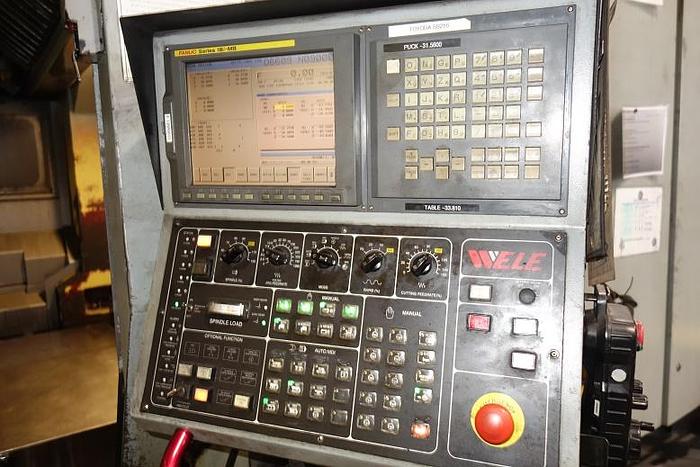

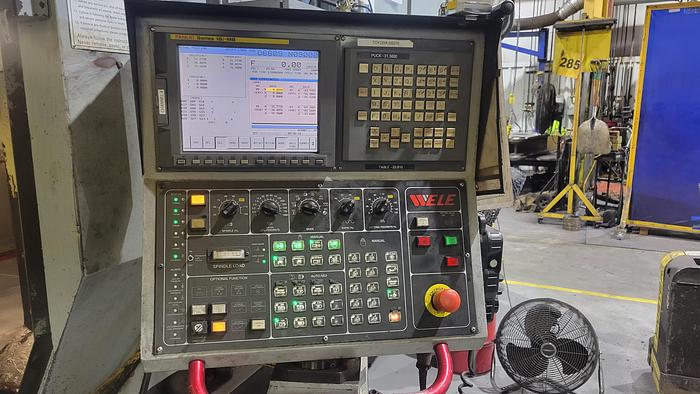

Control: Fanuc 18I MB

Year: 2008

Run Time: 13,108 HRS

Distance Between Columns: 66.9”

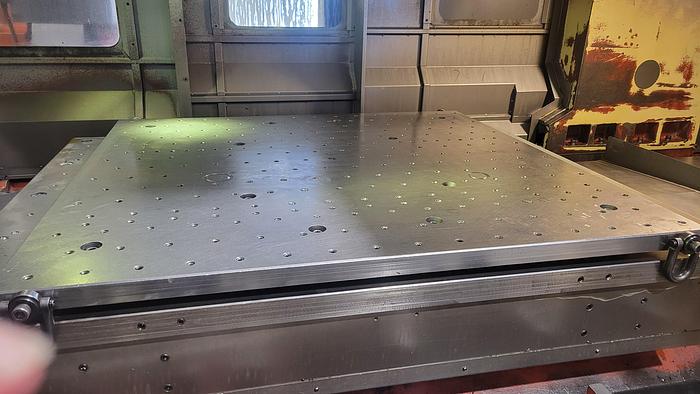

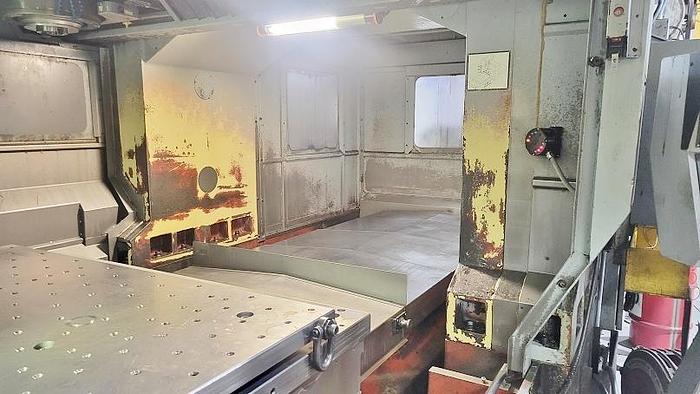

Table Size: 60”x78”

Table Fixture Size: 64”x60”

Table Load Capacity: 17,600 LBS

X Axis Travel: 82.7” x Y=63”x Z=31.5

Spindle Taper: 50 Taper

Spindle Speed: 6,000 rpm

Rapid Traverse Rate: x= 944.8 Y= 944.8 Z=708.7 IPMs

Tool Magazine Capacity: 60 Tool

Max Tool Length: 15.7

Max Tool Weight: 44.1 Lbs

Tool Shank: BT 50

Horse Power: 35 HP

Floor Space Requirement: 339” L x 189.7” W x 149.6 “H

Machine Weight: 83,000 LBS

Electrical: 220V/60/3PH

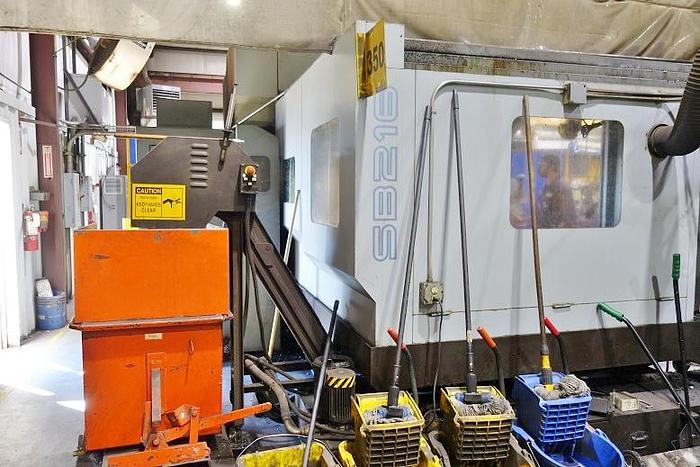

Equipped with: Spindle Temperature Control, Spindle Lubricating Monitoring System, Two Step Geared Head, Chip Conveyor, Coolant Thru the Spindle.

This Machine will be available in November 2024 and will include Assorted Tooling.
