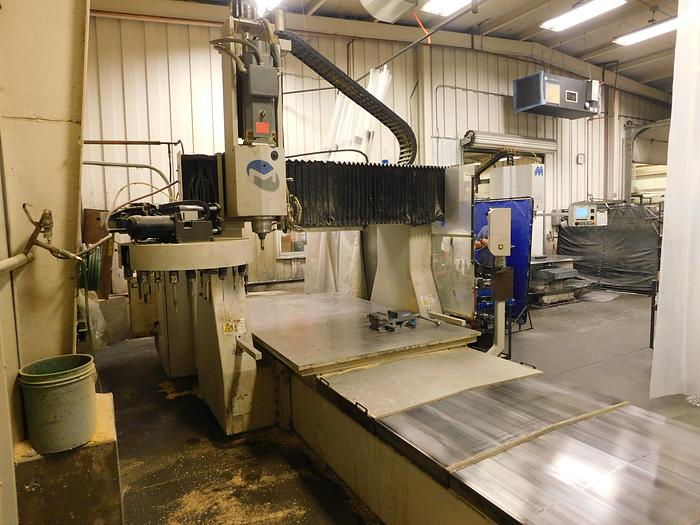

MILLTRONICS BR60IL CNC Bridgemill

Make: Milltronics

Model: BR60IL

Year: 2008

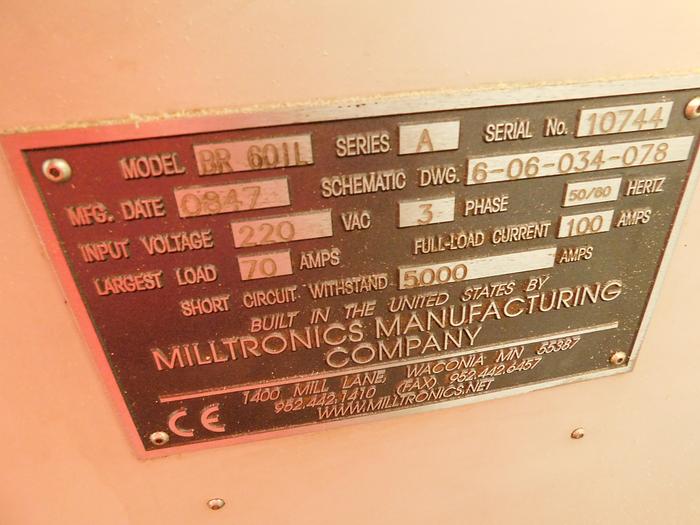

Serial Number: 10744

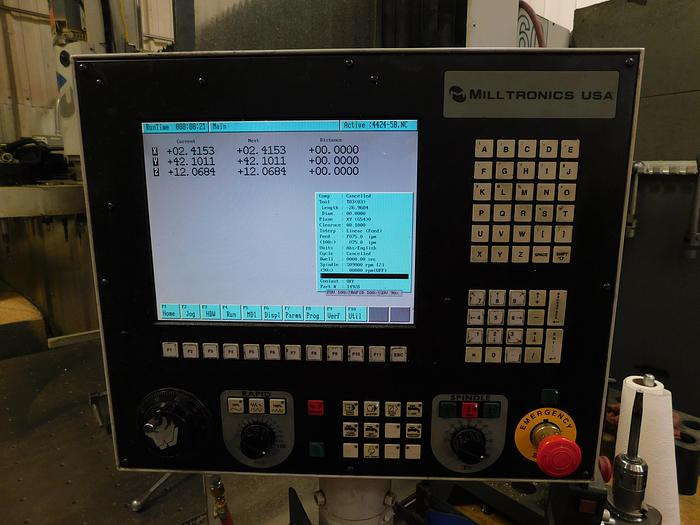

Controls: Milltronics 7200 CNC

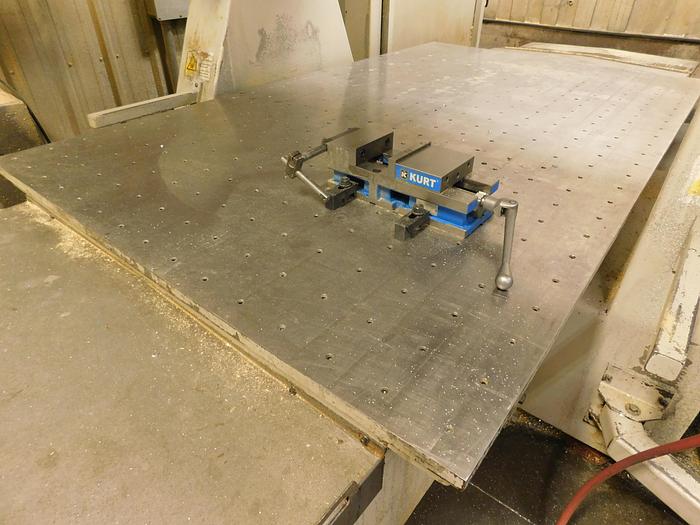

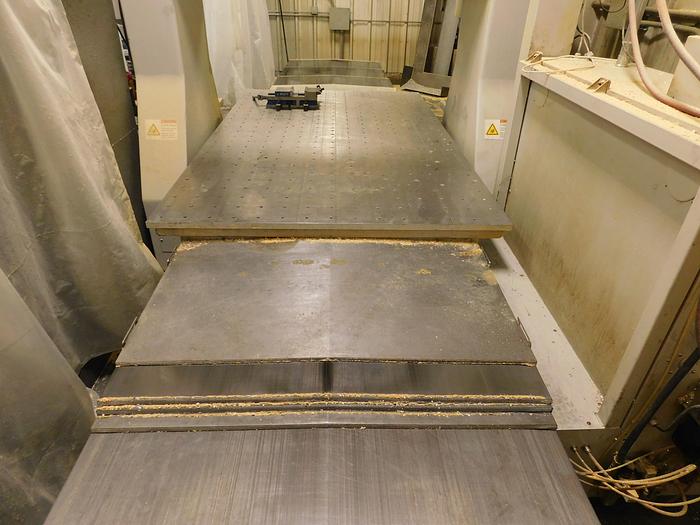

Table Size: 60" x 100"

Distance Between Columns: 63"

Machine Travels (Long / Cross): 100" x 60"

Z Axis Travel: 28"

Rapid Traverse Rates (Long / Cross/Z): 1000 IPM

Max Cutting Rate: 500 IPM

Max Z-Axis Clearance: 32"

Min Z-Axis Clearance: 4"

Max Table Load: 5000lbs

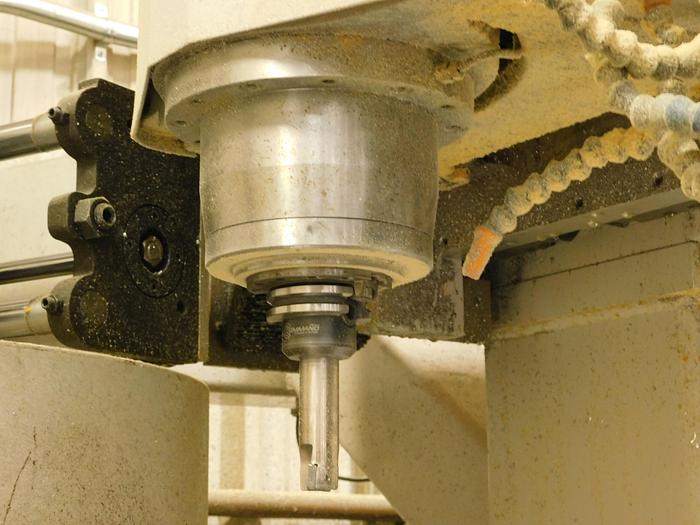

Spindle Speeds: 10,000 RPM

Spindle Taper: Cat 40

Spindle Drive: 24/15 HP 2-Speed

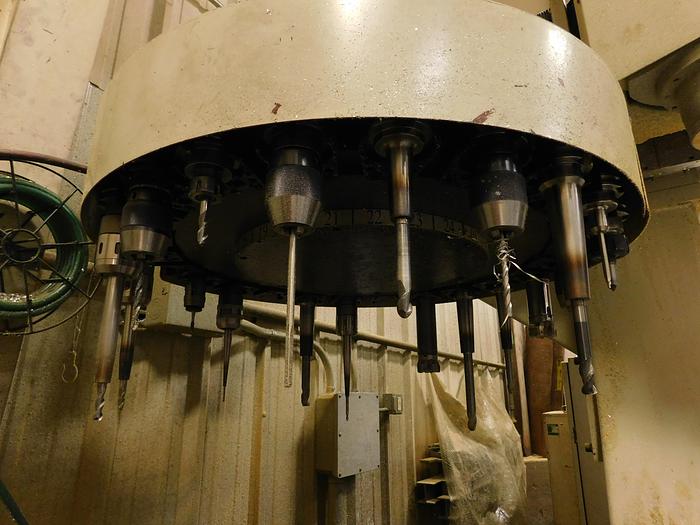

Tool Changer Type: Carousel

Tool Changer Capacity: 24

Max Tool Weight: 15lbs

Max Tool Dia.: 3.5"

Max Tool Length: 11"AUXILIARY

Main Unit Approx Weight: 14000.00 lbs

Main Unit Dimensions (in inches): Length: 265.00" Width: 148.00" Height: 134.00"

Components:

Shipping Dimensions (Approximate): L 266"x125"110" (removal of carousel will reduce width)

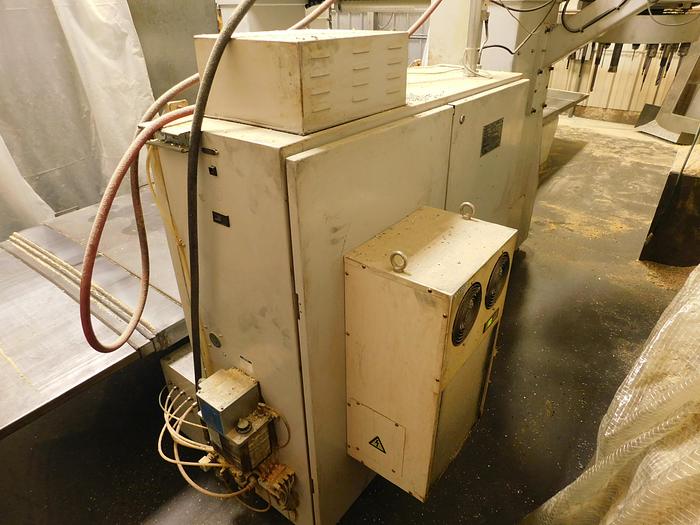

Electrical: 220V, 3ph

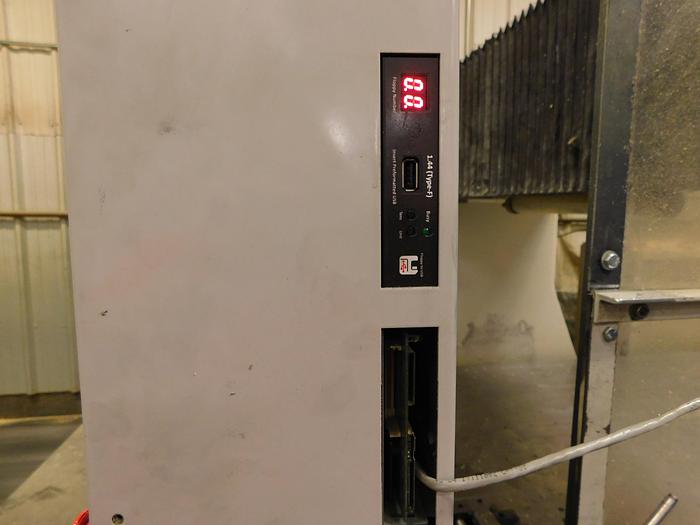

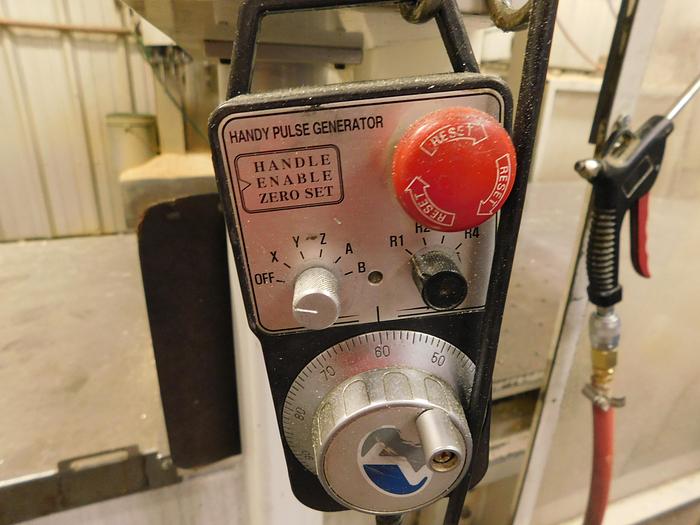

Equipped With: Remote Jog Handle, 3-1/2" Floppy Drive, Riggid Tapping

KEYBOARD JACK W/KEYBOARD CENTURION 7 CONVERSATIONAL CONTROL RIGID TAPPING SPINDLE ORIENTATION REMOTE HANDWHEELS

**PLEASE NOTE: Machine Vise and Tooling NOT INCLUDED**
