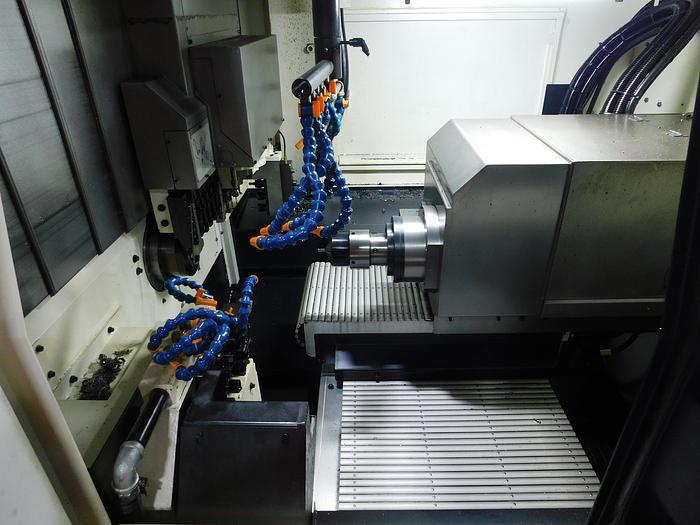

Ganesh Gen Turn SL42Y2 Hybrid 42MM 8-Axis CNC Swiss Machine

Make: Ganesh Gen Turn

Model: SL 42 Y2

SN: 0266

Year: 2021

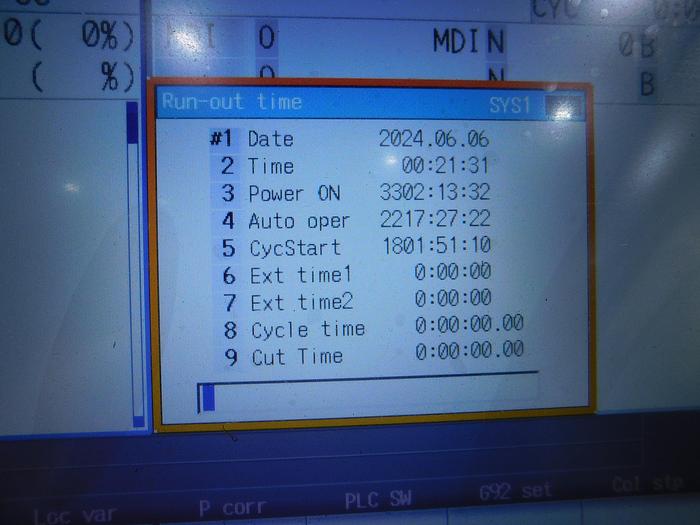

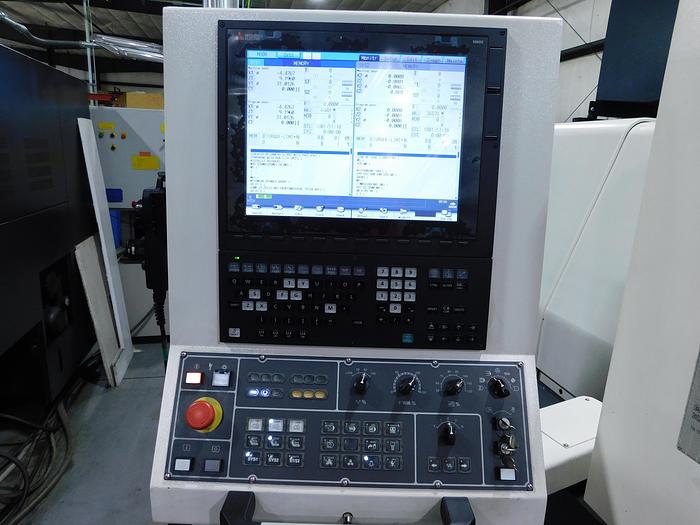

Control: Mitisubishi

MAIN SPINDLE

Spindle Speed Max: 6,000 rpm

Spindle Motor:

10 HP (15 min)

7.5 HP (Constant)

Collet Style for Main & Subspindle: Traub-42 / 173E

Collet Closer Style: Lever Action

Bar Diameter, w/o guide bushing: 1-5/8"

(42mm)

Maximum Turning Length: 4.13"

(105mm)

Spindle Bore Diameter: 1.732"

(44mm)

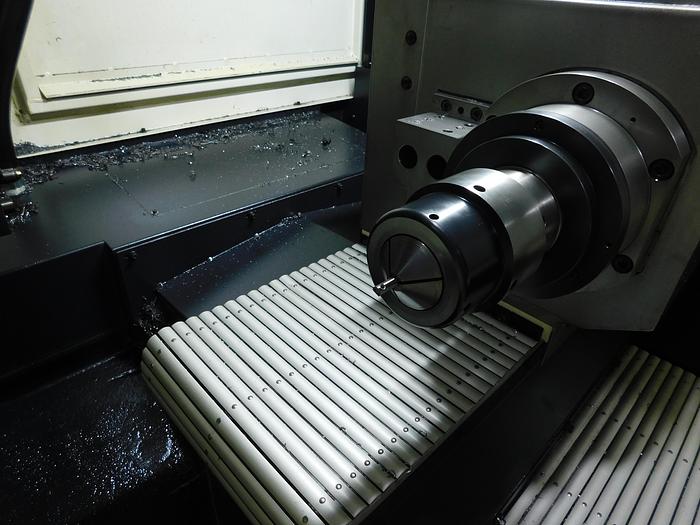

SUB-SPINDLE

Speed: 6,000 rpm

Spindle Bearing:

Quad Duplex Pair

Main Spindle Servo Motor:

10 HP (15 min)

7.5 HP (Constant)

Collet Style:

Traub-42 / 173E

Max. Barstock Diameter: 1-5/8"

(42mm)

Spindle Bore Diameter: 1.732"

(44mm)

Maximum Workpiece Length for Front Ejection: 110mm

AXIS

Main Spindle Stroke: 12.20"

(310mm)

Rapid Traverse Rate, X/Y/Z-1, X/Y/Z-2: 944 ipm

(24 m/min)

X1, Z1 Axis Motor Power: 2 HP

(1.4 kw)

X2, Y1, Y2, Z2 Axis Motor Power: 1 HP

(.75 kw)

X1, Y2 Linear Ways: Ball Bearing

X2, Y1, Z1, Z2 Linear Ways: Roller Bearing

Machine Dimensions: 121"x67"x83"

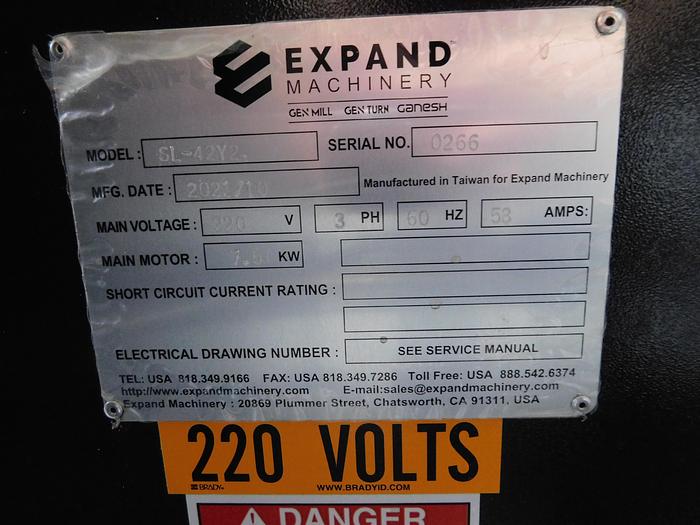

Power Requirements: 220 Volt, 60 Hz, 3-Phase, 80 Amps, 30 kVA

Air Requirement: 85 psi @ 6 cfm

Features:

Bar Capacity to Ø1-5/8”,

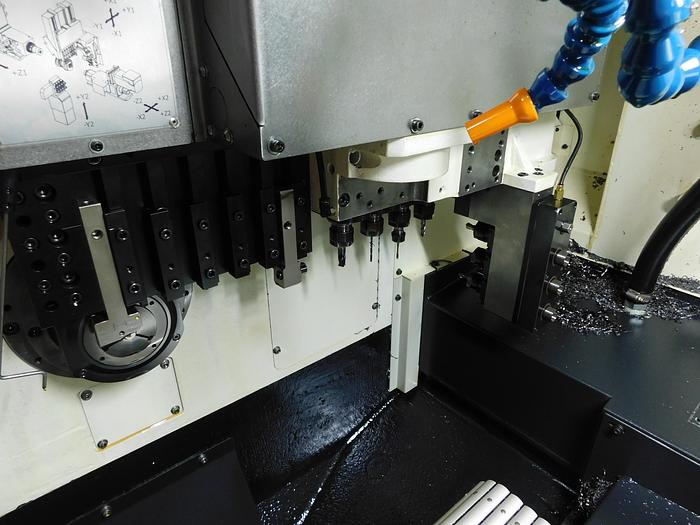

3-Bank Axial Live Tool,

Double “Y” Axis and Double “C” Axis,

Simultaneous Main & Sub-Spindle Machining,

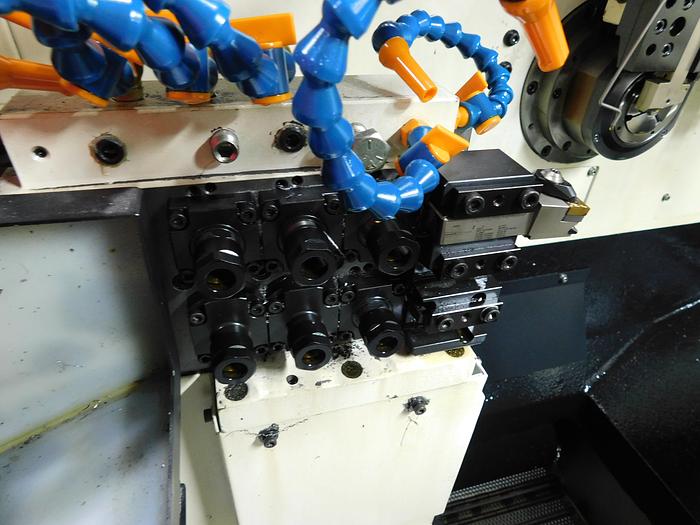

30-Tools with 8-Driven Tools, Standard

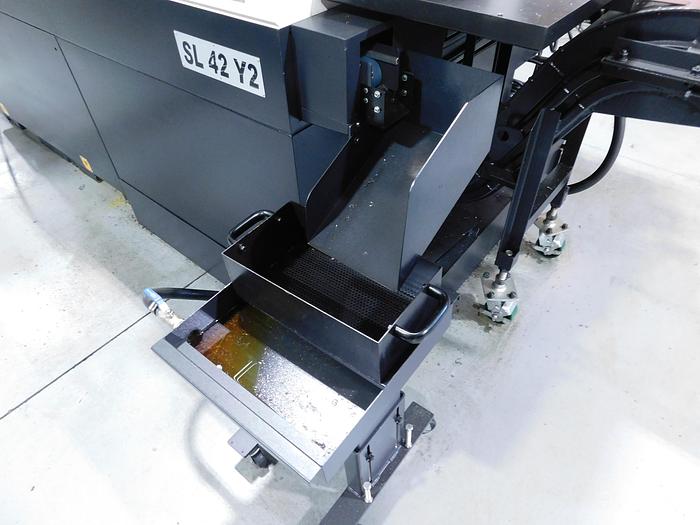

Parts Conveyor,

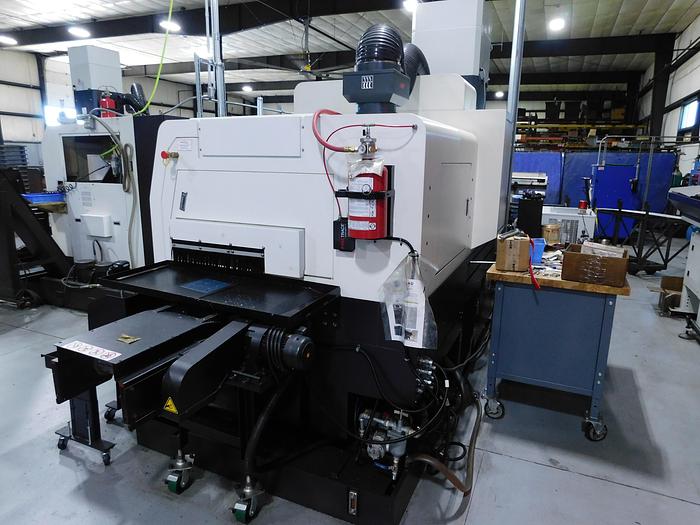

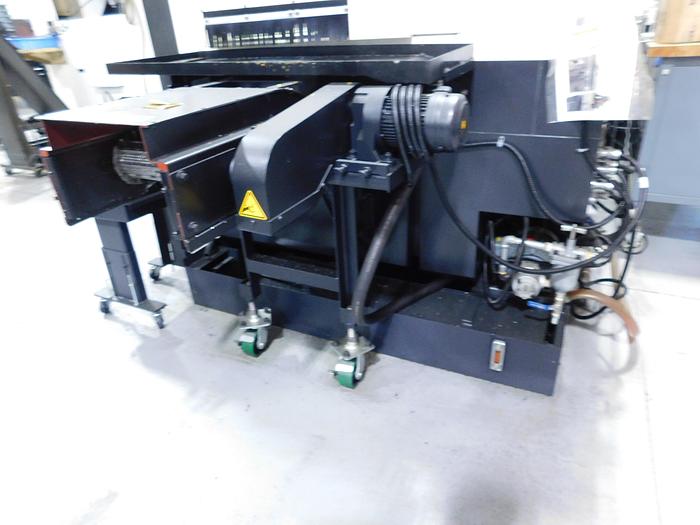

Chip Conveyor,

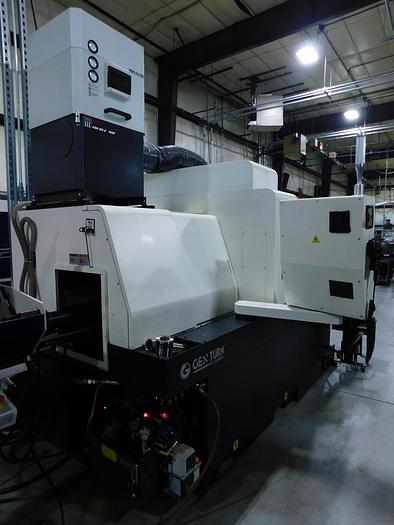

2021 Mistbuster 850 Filtration and

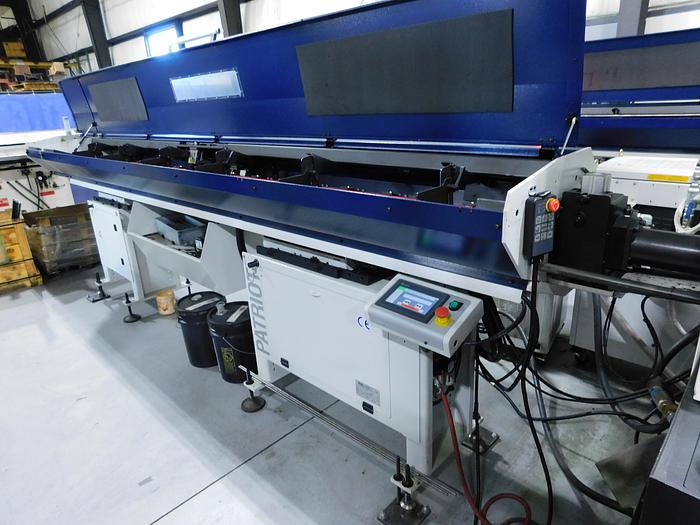

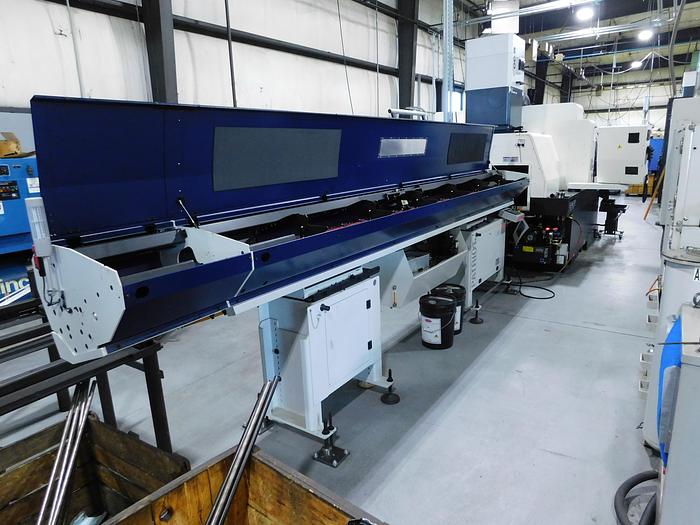

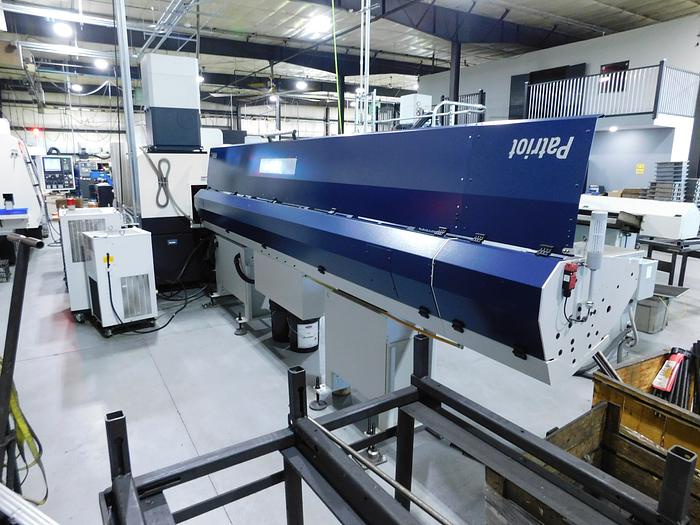

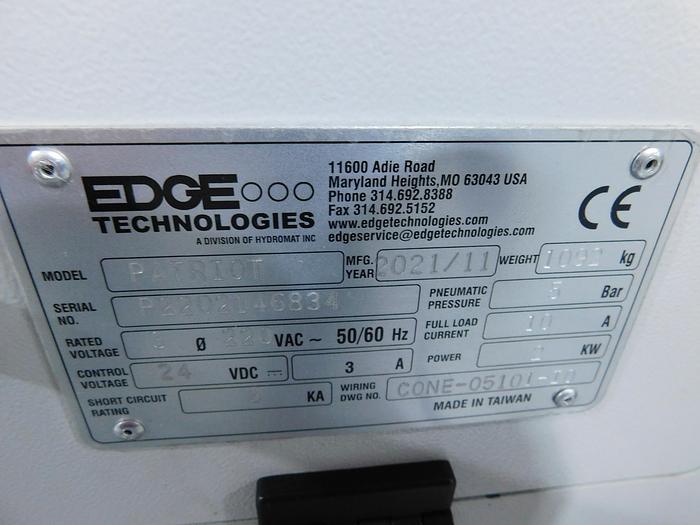

2021 Edge 193” Bar Feeder.
