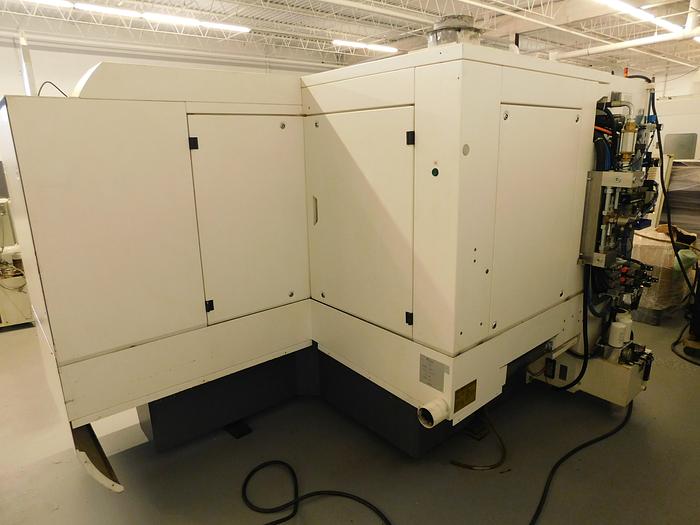

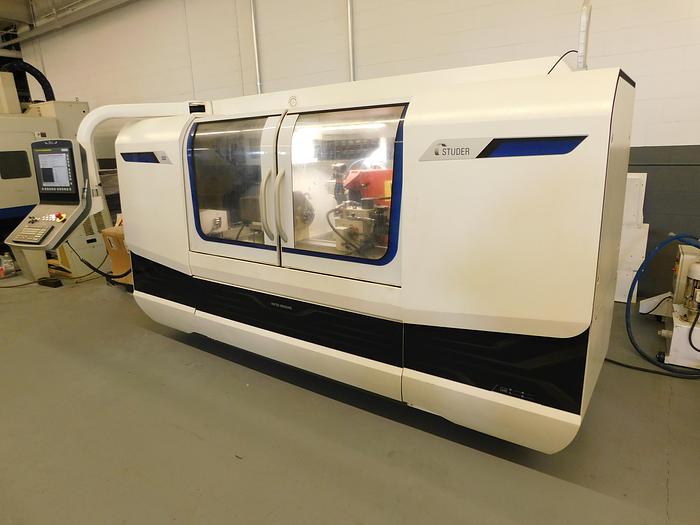

Studer S33 Universal Cylindrical CNC Grinder Fanuc

Make: Studer

Model: S33

Year: 2018

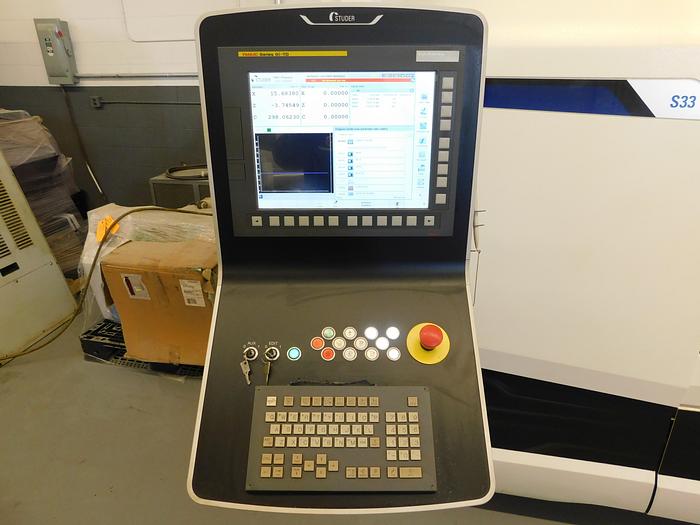

Controls: Fanuc Oi-TD

Capabilities and Features: 350mm x 1000mm

OD Grinding Wheel Dimension: 500 x 63 x 203,2mm

X-Axis Travel: 285mm

Z-Axis Travel: 1000mm

Resolution: 0,0001 mm

Max. work piece weight between centers: 80kg

Swivel Table: -15 - +225 °

Indexing: B-axis Automatic 1° Hirth Coupling

Grinding wheel size: 500 x 63 x 203,2mm

Peripheral speed max: 50 m/sec

Motor power capacity: 14.47HP / 11kW

Number of revolutions: 1 - 1,500Rpm

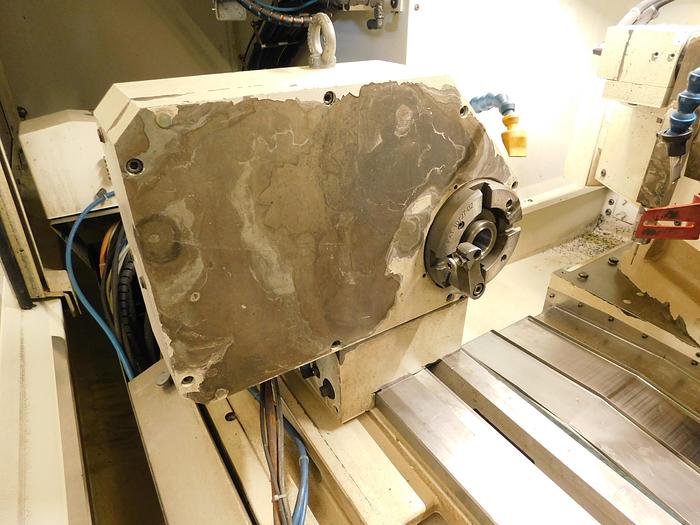

Workhead Motor Power capacity: 1,6 / 3kW

Spindle passage: 30mm

Fitting taper: MK 5

Center Height: 175mm

Workload: 80kg

C-Axis: 0,0001 °

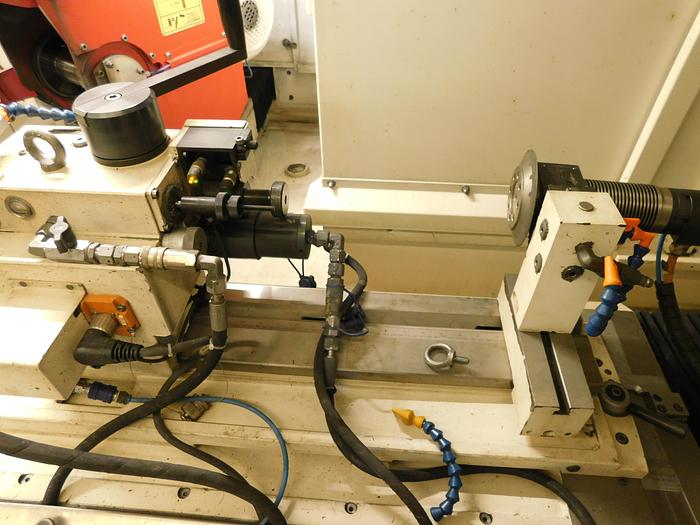

Tailstock: yes

Tailstock: - Taper Center Size: MK 4

X-Axis Travel: 285mm

Z-Axis Travel: 1000mm

Feed speeds-X: 0,001 - 10.000 mm/min

Feed speeds-Z: 0,001 - 20.000 mm/min

On Time Hours: 13,351

Machine Grinding Hours: 5979:42:21

Dimensions of the machine: 5,0 x 3,5 x 2,5 m

Weight of the machine: 8,000Lbs.

Includes: GRANITAN BASE, Straight Grind, Angle Grind, Hydraulic System, Electronic Hand Wheel, Wheel Head Changing Station - with auto door for ease of access, Tailstock, Chuck, Table mount auto Wheel Dresser, Swivel Workpiece -table 8.5 degrees, Direct Travel measuring system, 0,0001mm (Linear), Paper Filter, Coolant System and all Manuals
