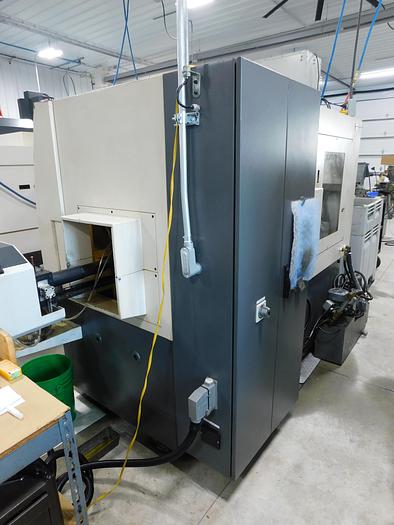

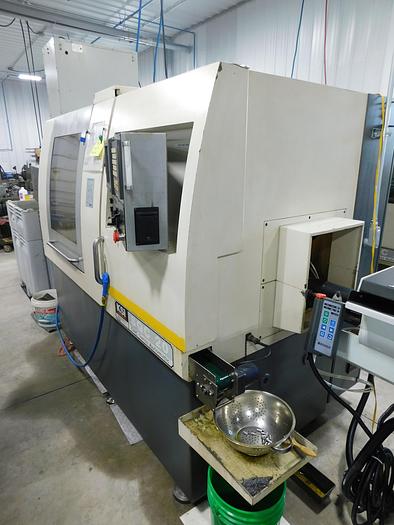

KSi SQC20 CNC Swiss Turning Center

Make: KSi

Model: SQC20 CNC Swiss Lathe

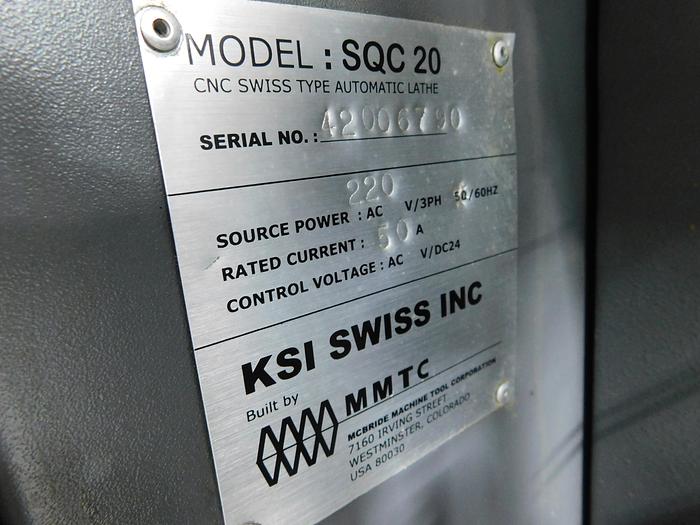

S/N: 42006790

Year: 2006

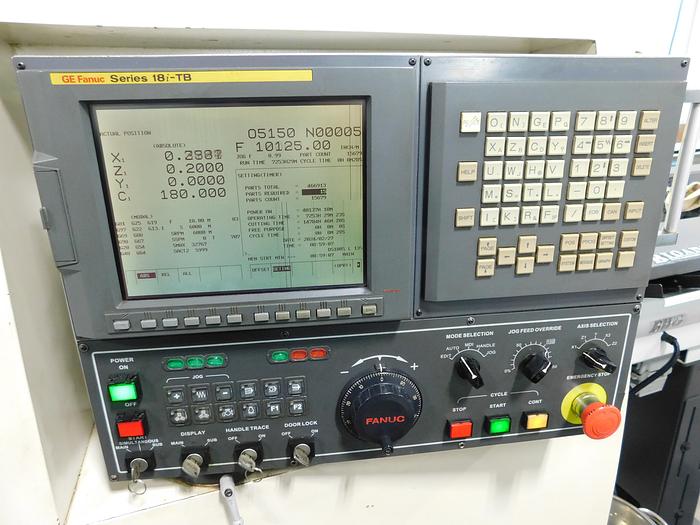

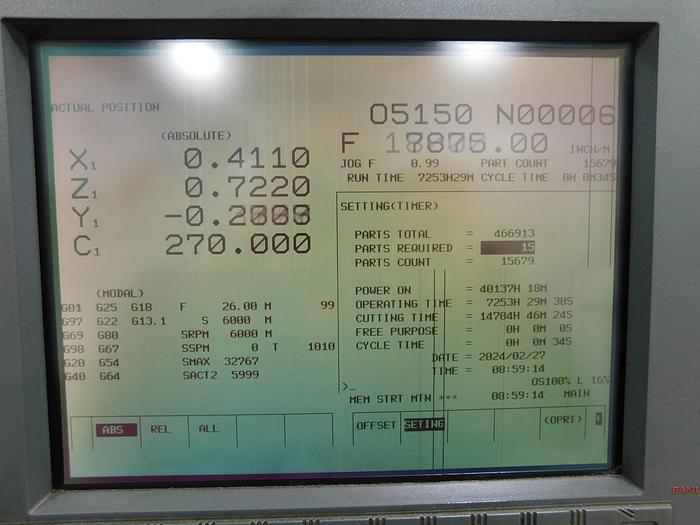

Controls: Fanuc 18-iTB (7-axis)

Main Collet Sub Side: TF25

Guide Bushing: TD25

Live Tool Collet: ER16

Main Spindle

Max Bar Diameter 20mm (0.78")

Max Machining Bar Length (1) Chucking 8.26"

Main Drill/Tap 12mm/M10

Cross Drill/Tap 10mm/m8

Main Spindle Positioning C Axis .001"

Main Spindle Speed 8,000 RPM

No. Main Spindle Turning Tools (Fixed) 5 Standard

Tool Shank Size 12mm

Main Spindle Cross Live Tools (Live) 4 Standard

No. Y Axis Tool Block (Fixed) 5 Standard

Headstock Collett TF 48

Guide Bushing Capacity ??? (TD25)

Sub Spindle

Sub Spindle Chucking Diameter: 38mm

Sub Spindle Speed: 8,000 RPM

Sub Spindle Positioning C Axis: .001"

Back-end Face Drill/Tap: 10mm/m8

Spindle RPM Mill/Drill Main & Sub: 8,000 RPM

Back Working Live Spindle Mill/Drill: 4,000 RPM

No. Face Tools (Sub Spindle) (Fixed) 1 Standard

No. Face Tools (Sub Spindle) (Live) 2 Standard

No. Face Tools (Back End) (Live) 3 Standard

No. Face Tools (Back End) (Fixed) 1 Standard

Sub Spindle Collet TF 25

Total No. of Fixed Tools 12 Standard

Total No. of Live Tools 9 Standard

Total No. of Tools 21 Standard

Mechanical Driven Rotary Guide Bushing Standard

Main Spindle Horsepower 7.5 HP

Sub Spindle Horsepower 3.5 HP

Cross Drill/Mill Unit 1.5 HP

Back End Face Tools 1.3HP

Electrical: 220V, 3ph, 60A

Dimensions

Machine: 11'x64"x93"

Chip Conveyor: 85"x30"

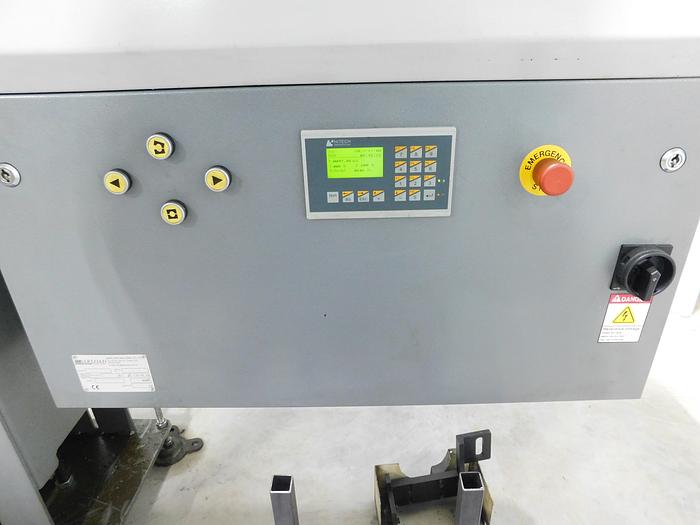

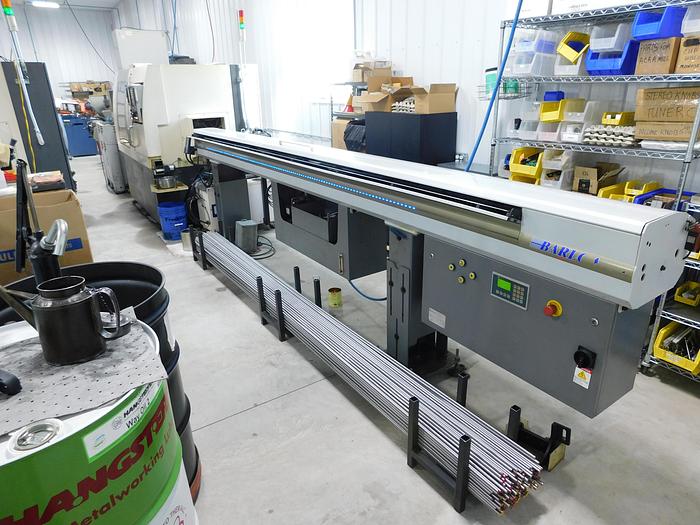

Bar Feeder: 186"x19"x48"

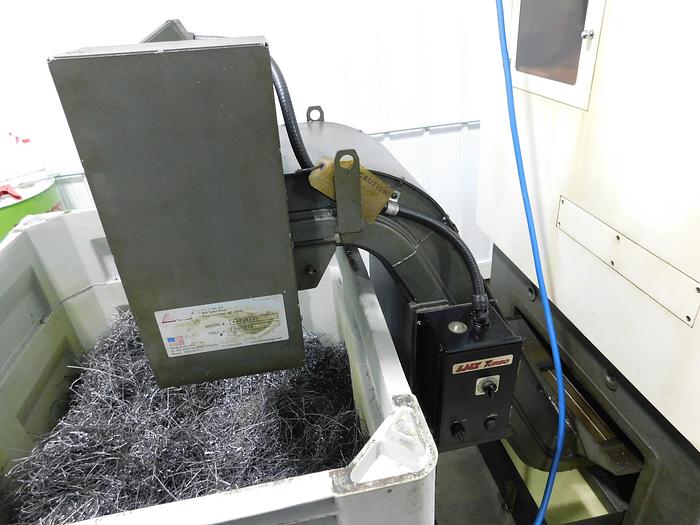

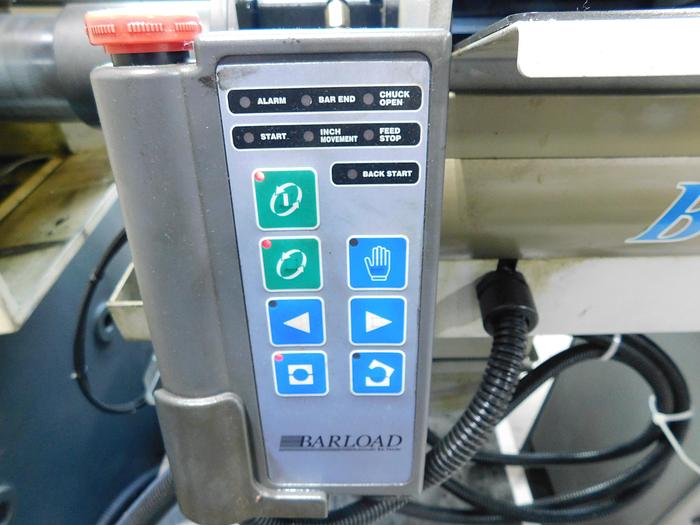

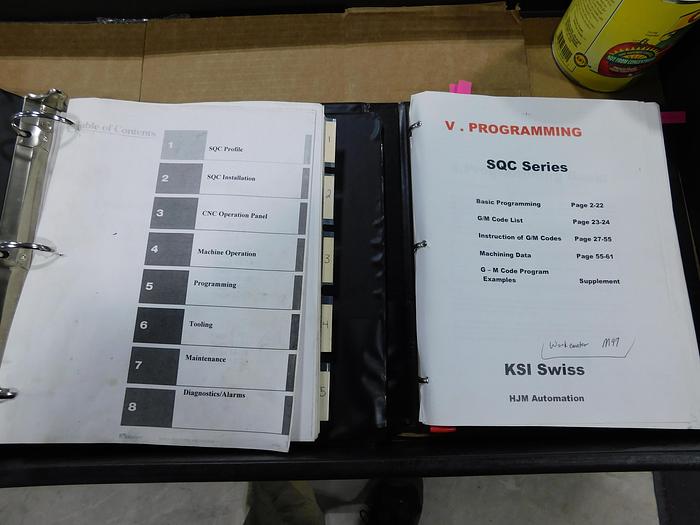

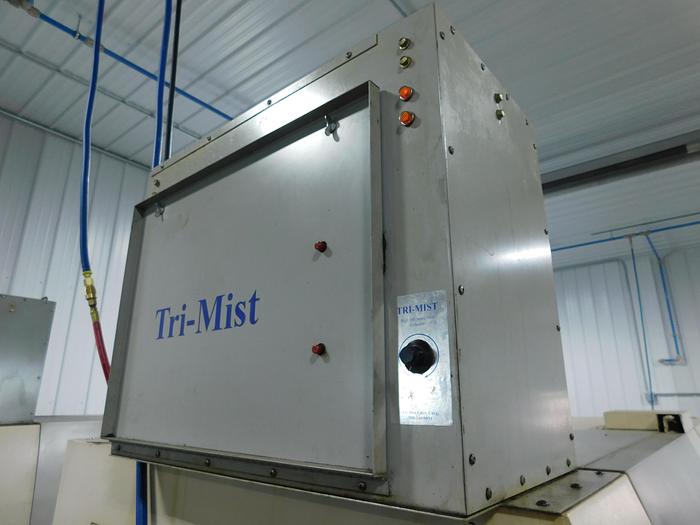

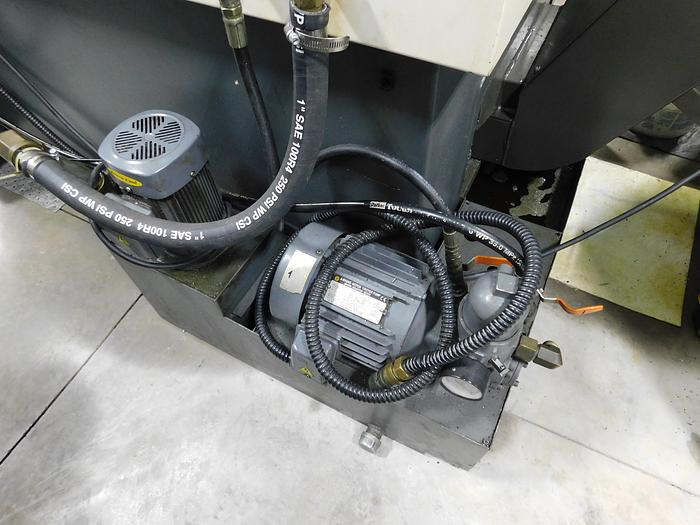

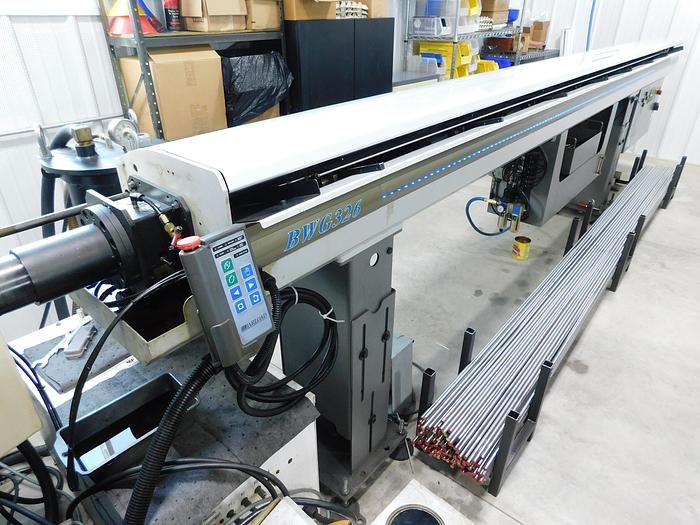

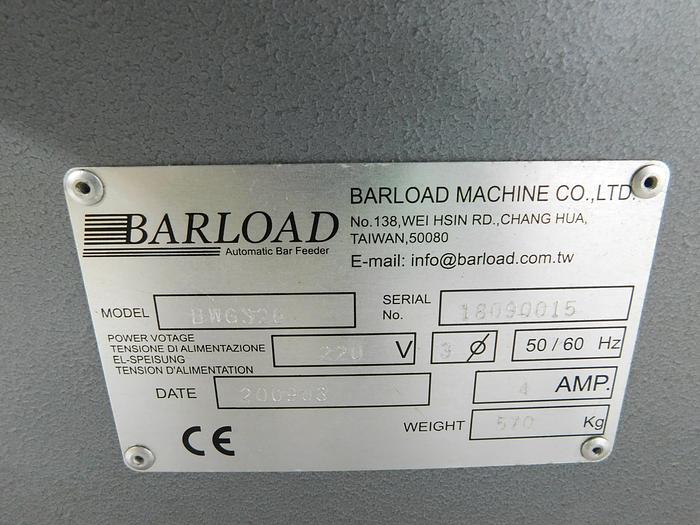

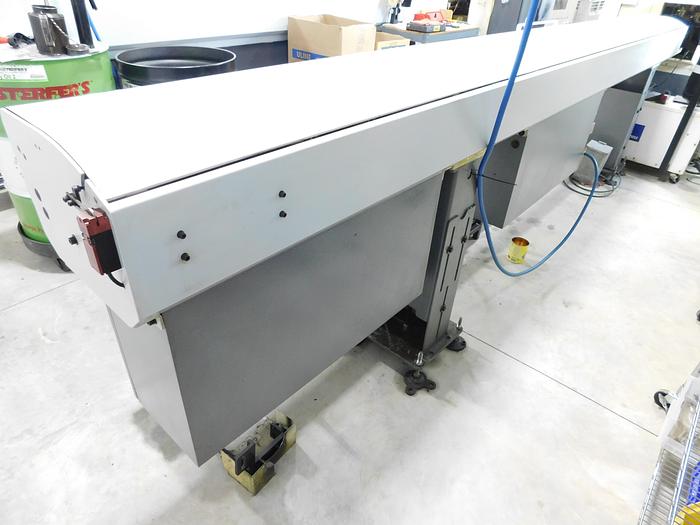

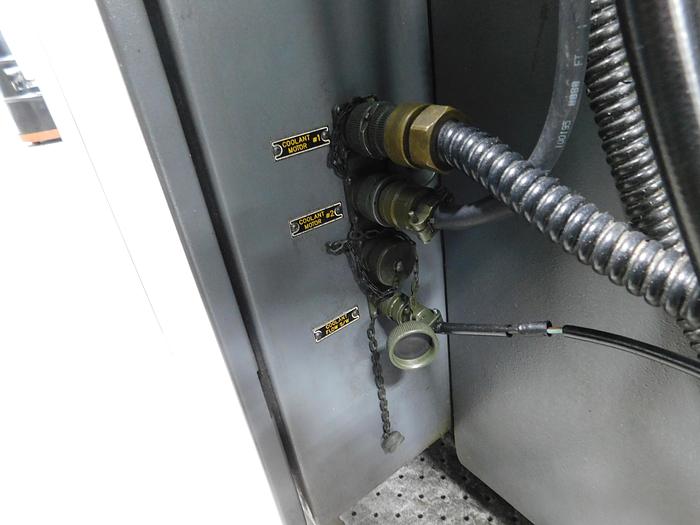

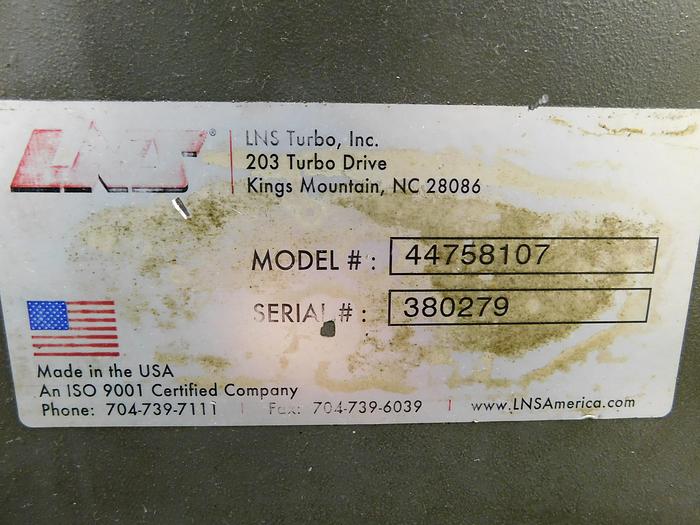

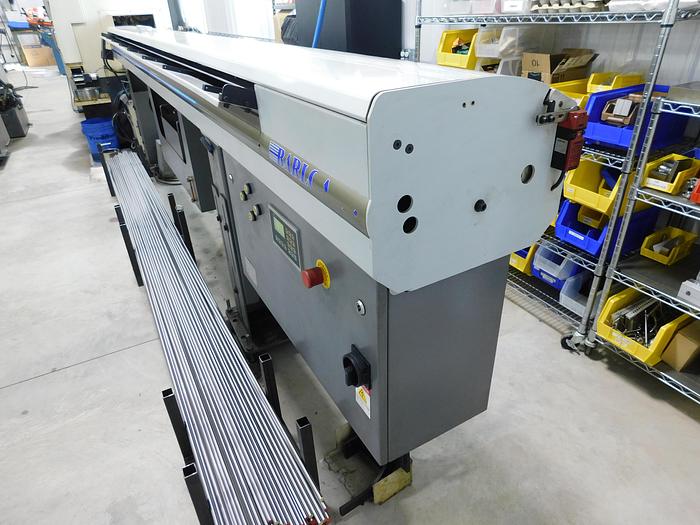

Equipped with: Parts Catcher, Parts Conveyor, Sub Spindle Ejector, All Live Spindles Have Rigid Tap, 9-Live Tool Capable (Installed Live Tools; 4 Cross/2 Face/2 BW), Barload #BWG326 Bar Feeder, TriMist Mist Collector, LNS #44758107 Chip Conveyor, Coolant Pan with coolant pump with additional Auxiliary coolant Pump, and all Available Manuals.
