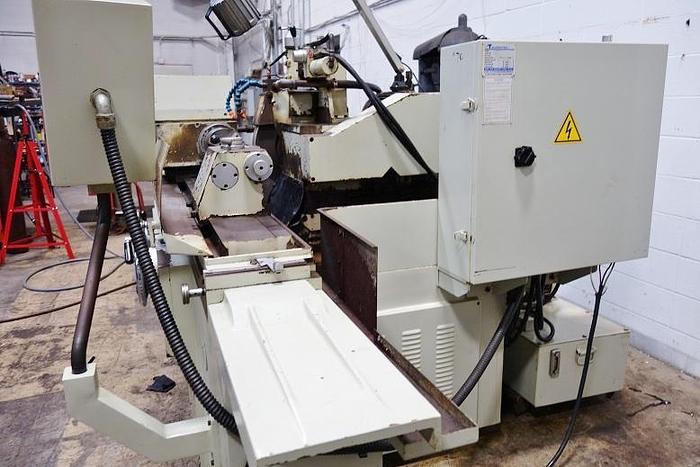

Supertec Cylindrical Grinder

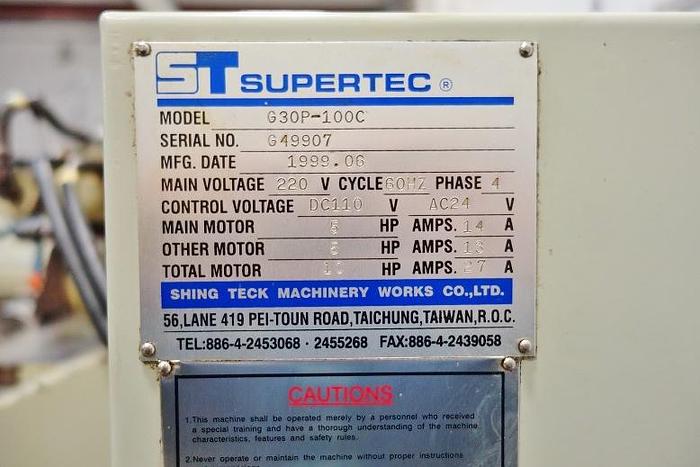

Make: SuperTec

Model: 630-100C

SN: 649907

Distance between Centers: 40”

Swing Over Table: 12-1/4”

Max Grinding Dia: 12”

Max load between Centers: 330 Lbs

Swivel Angle R to L Plus Minus 30 degree

Infeed Travel: 45”

Hand Feed Travel: 7.8”

Hand wheel Per Revolution: .01”

Wheel Infeed: .05”

Auto incremental in Feed: .00005”-0.999”

Grinding Wheel Size: 16"Dia. x 2"Wide x 5”Arbor

Wheel Speed : 1,650 RPM

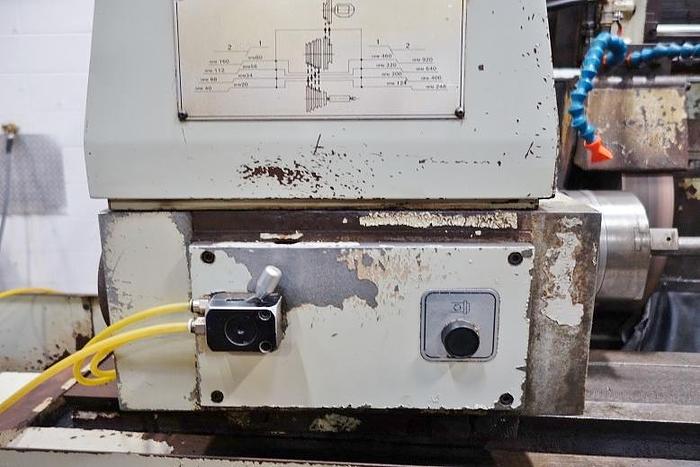

Work Head Spindle Speeds: (16 Steps) 20-920 Rpm

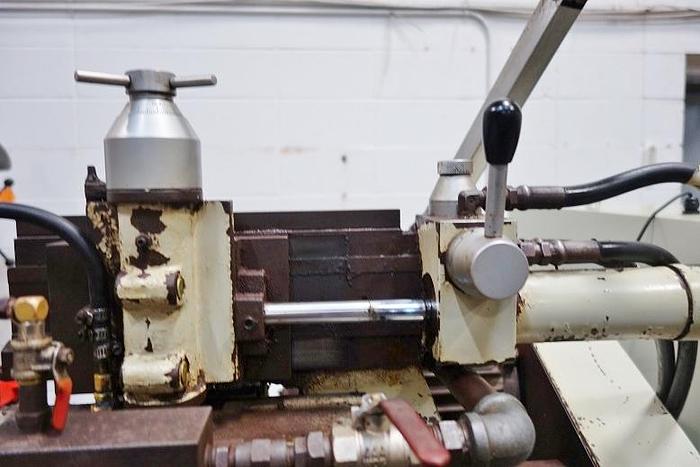

Tails Stock Taper: MT 4

Horsepower 5 HP

Machine 230V 3PH

Over All Dimensions: 136"x89"x77”

Weight approximately: 10,500Lbs
