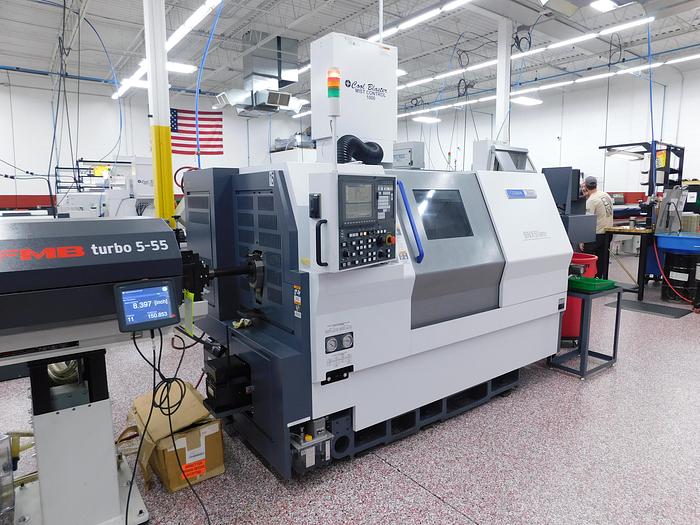

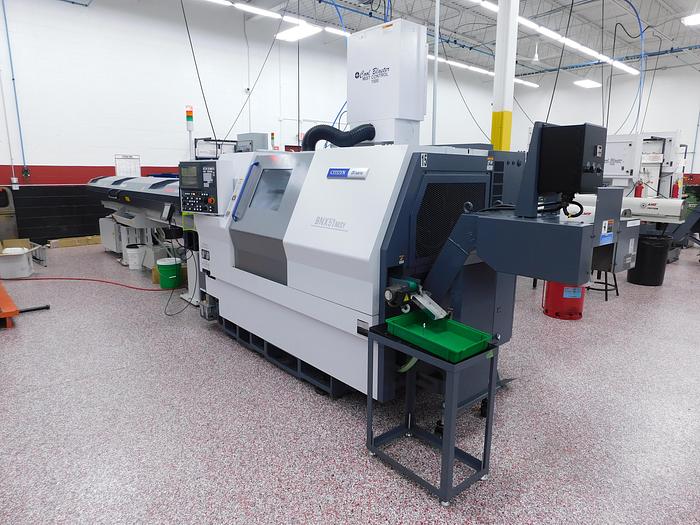

2021 Citizen Miyano BNX 51MSY Twins Spindle CNC Turning Center

Sold

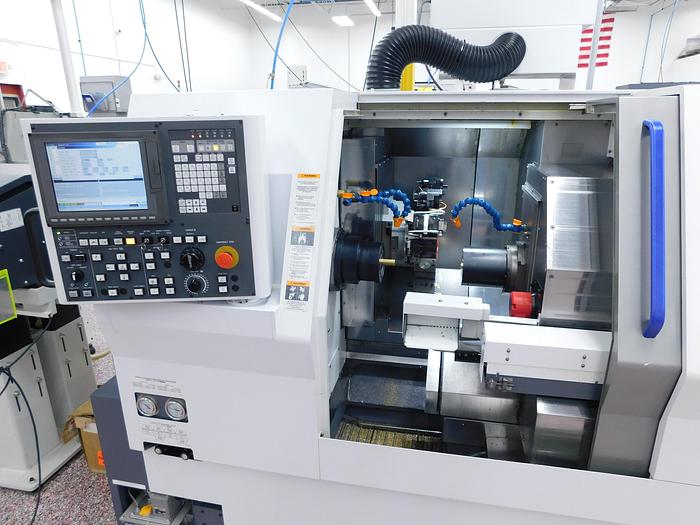

2021 Citizen Miyano BNX 51MSY Twins Spindle CNC Turning Center

$215,500 (USD)

Location:Fridley, MN

Description

Make: Citizen Miyano


Model: BNX51MSY CNC Twin Spindle Turning Center


S/N: EE0131


Year: 2021


Control: M70Z


SPECIFICATIONS:

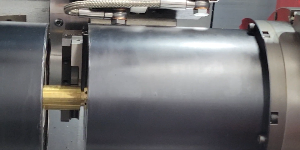

Diameter of std cutting

Spindle #1: 51mm (2″)

Spindle #2: 51mm (2″)

Chuck size Spindle #1: 6"

Spindle #2: 5"

Max. machining length: 150mm (5.9″)


Number of spindle: 2


SPINDLE SPEED RANGE:

Spindle #1: 5,000rpm

Spindle #2: 5,000rpm


I.D. DRAW TUBE:

Spindle #1: 52mm

Spindle #2: 43mm

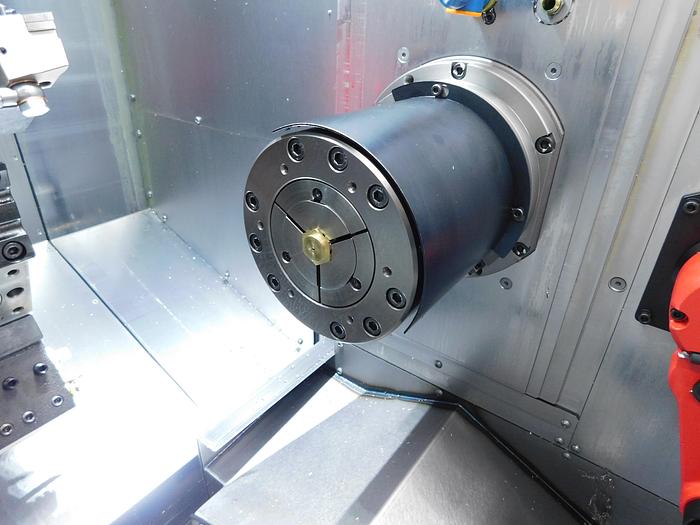

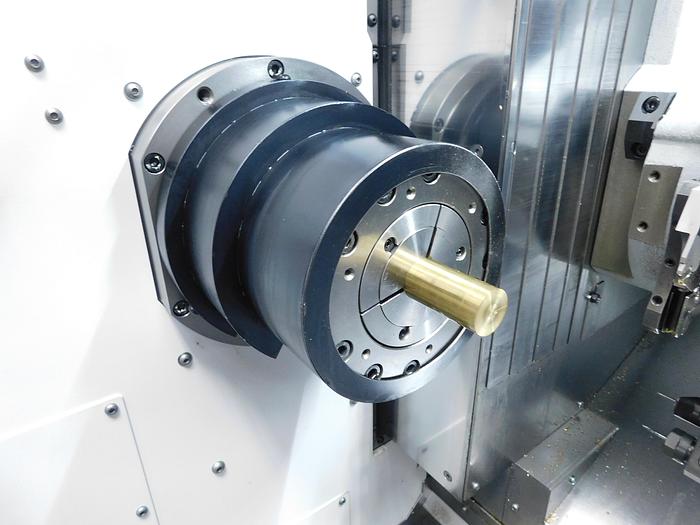

COLLET CHUCK:

Spindle #1: H-S22, (DIN177E – option)

Spindle #2: H-S22, (DIN177E – option)


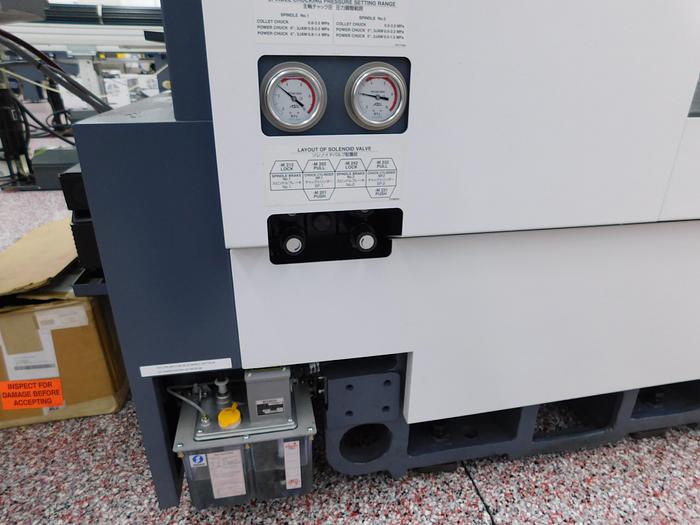

POWER CHUCK:

Spindle #1: 6″ thru-hole chuck

Spindle #2: 5″ thru-hole chuck

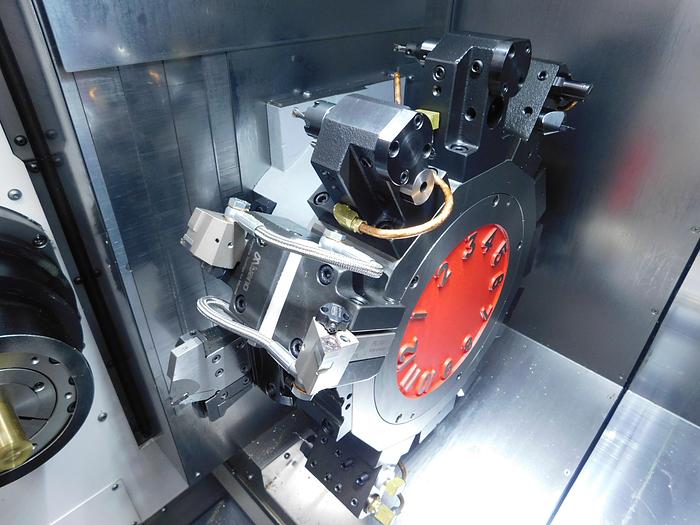

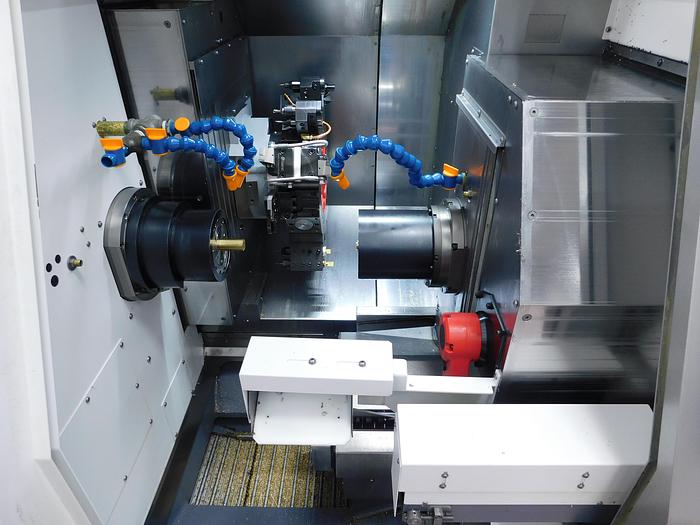

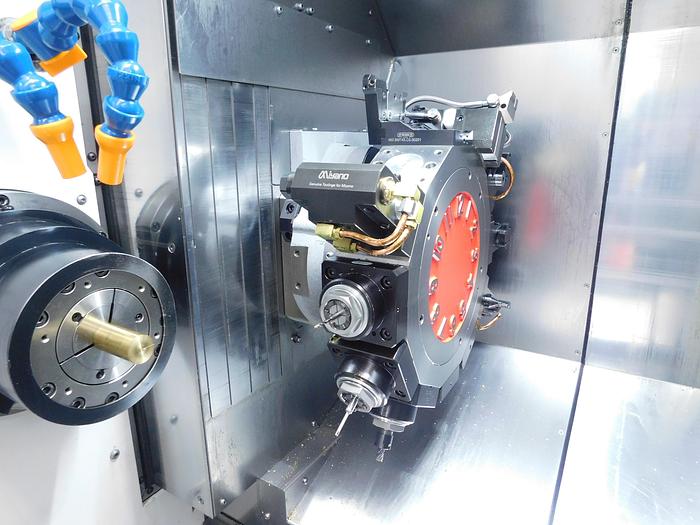

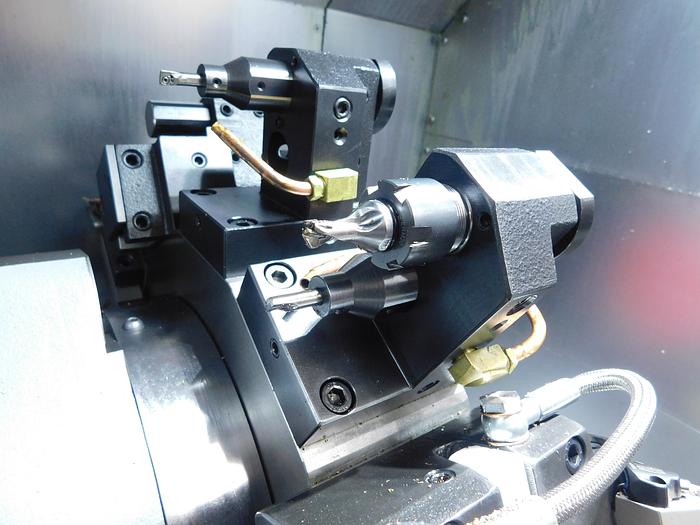

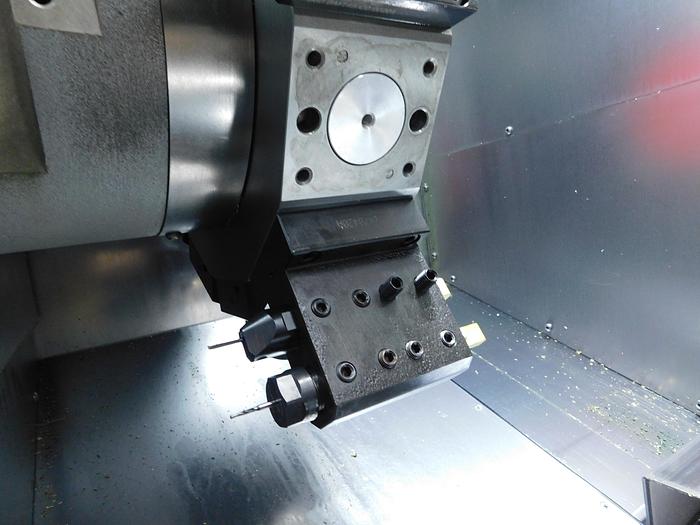

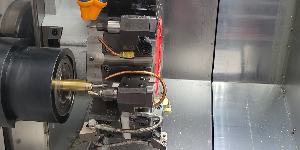

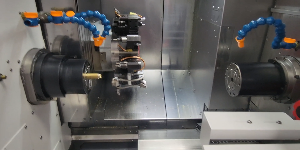

NUMBER OF TURRET: 1

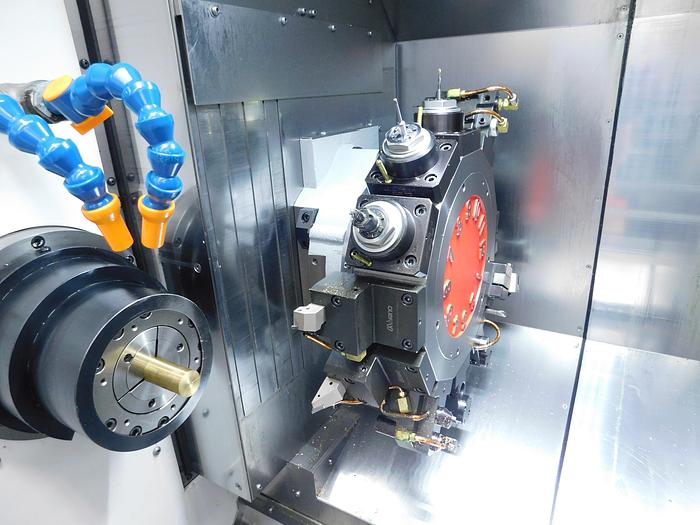

Turret #1: 12 station Shank height of square turning tool: ¾” Sq.

Diameter of drill shank: 1″ Dia.

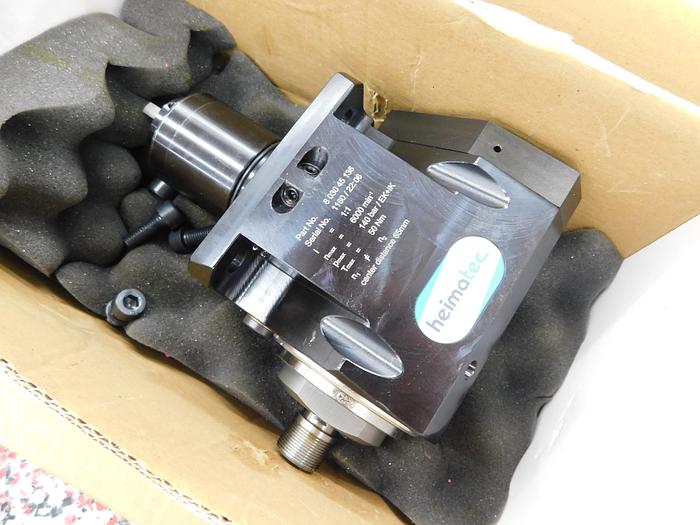

REVOVLING TOOLS:

Number of revolving tool Turret #1: Max. 12

Type of revolving tool Turret #1: Single clutch

Tool spindle speed range Turret #1: 6,000 min-1

Machining capacity Drill Turret #1: Max. 13mm Dia.

Tap Turret #1: Max. M12 ×1.75 (S45C-D)


SLIDE STROKE:

Turret slide stroke

X1 axis: 165 mm

Z1 axis: 300 mm

Y1 axis: 80 (± 40) mm

Spindle slide stroke

X2 axis: 86 mm

Z2 axis: 553 mm


FEED RATE:

Rapid feed rate

X1 axis: 20 m/min

Z1 axis: 20 m/min

Y1 axis: 12 m/min

X2 axis: 20 m/min

Z2 axis: 20 m/min


MOTORS:

Spindle Drive

Spindle No. 1: Cs 15/11 kw (15 min/cont.)

Spindle No. 2: Cs 7.5/5.5 kw (15 min/cont.)

Revolving tool drive: 4.0 kw

Slide: 1.5 kw (Z1), 1.2 kw (X1, Y, X2, Z2)

Hydraulic oil motor: 1.36 kw

Lubricating oil motor: 0.004 kw

Coolant pump: 0.25 kw × 1, 0.18 kw × 1

Turret index motor: 1.0 kw


ELECTRICAL:

Voltage: AC 200/220 ± 10% 50/60 Hz ± 1%

Capacity: 33 KVA

Air supply: 0.5 MPa

Fuse: 100 A


TANK CAPACITY:

Hydraulic oil tank capacity: 2.6 gal

Lubricating oil tank capacity: 1 gal

Coolant tank capacity: 79 gal


EQUIPPED WITH:

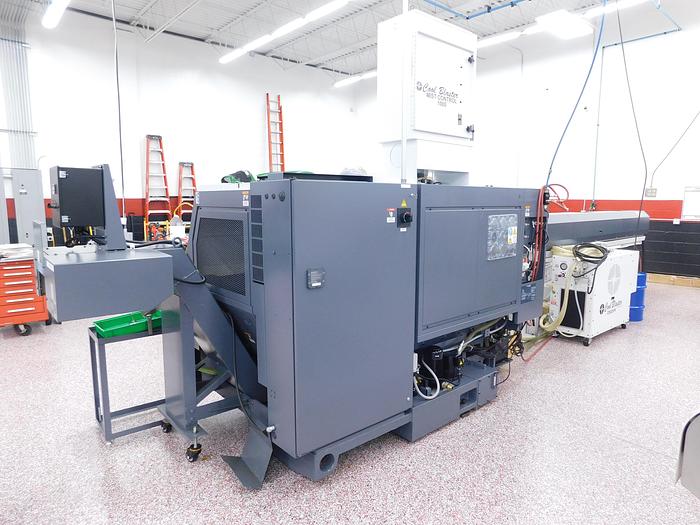

Chip Conveyor

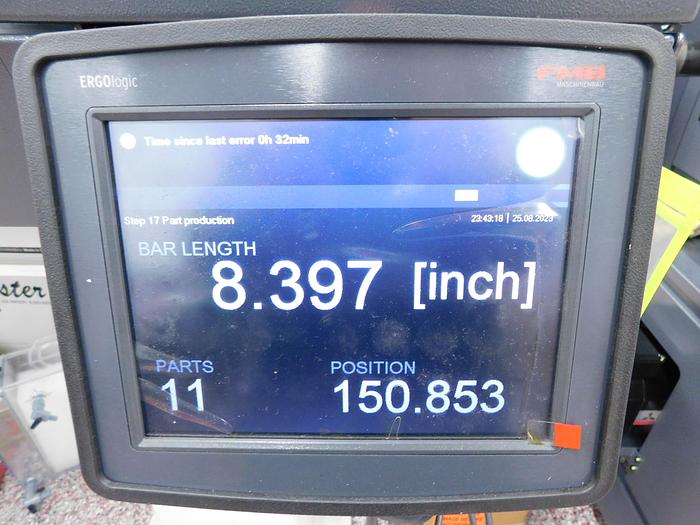

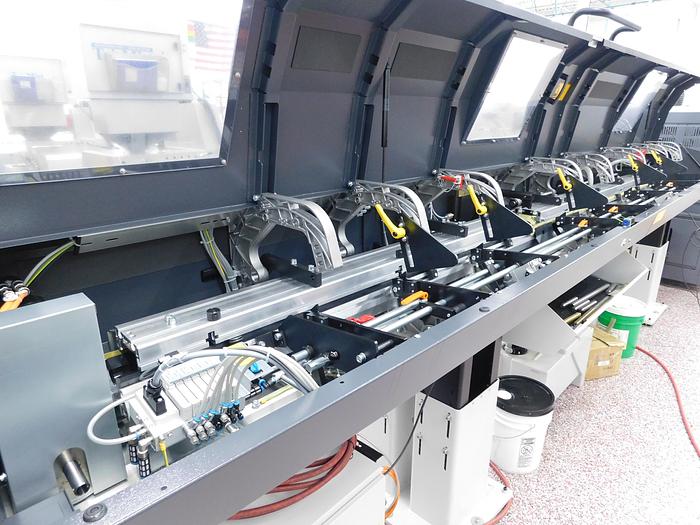

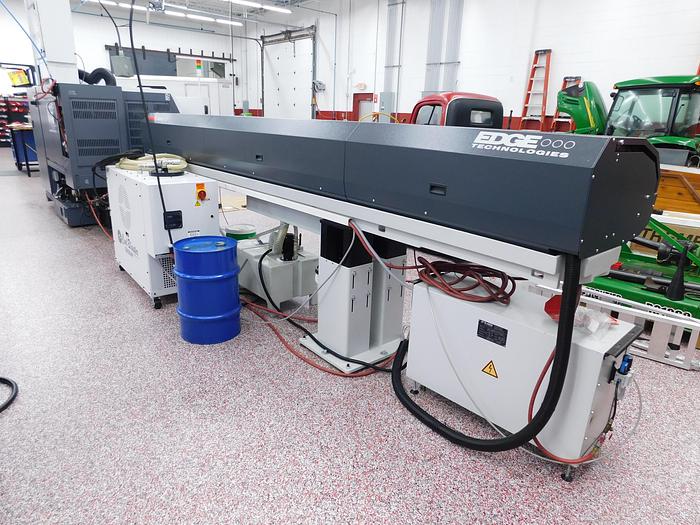

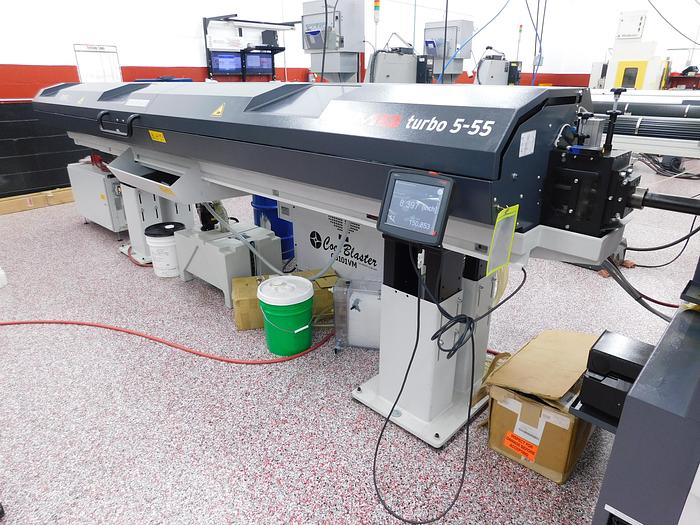

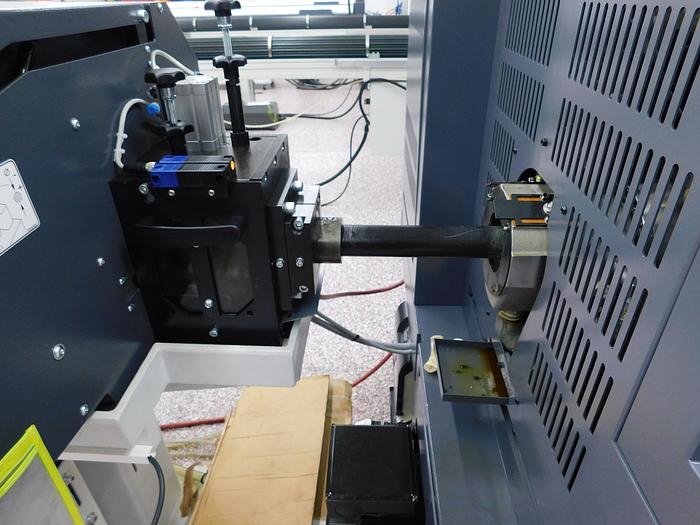

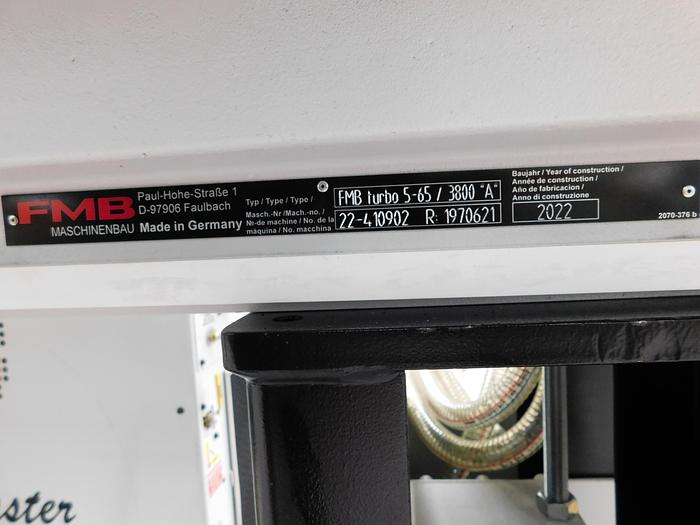

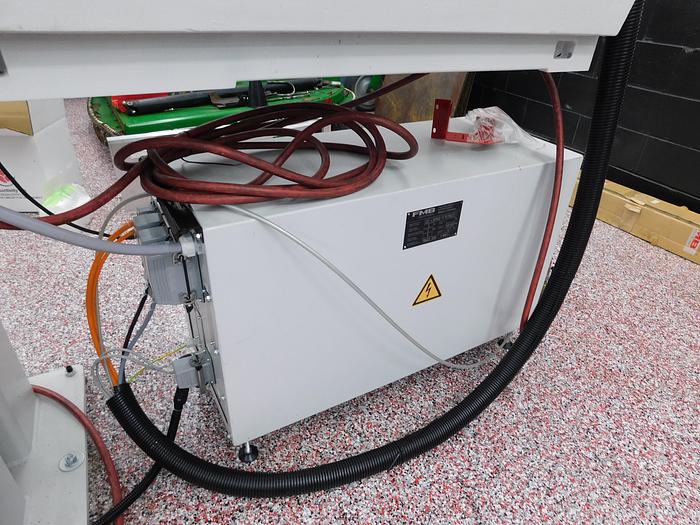

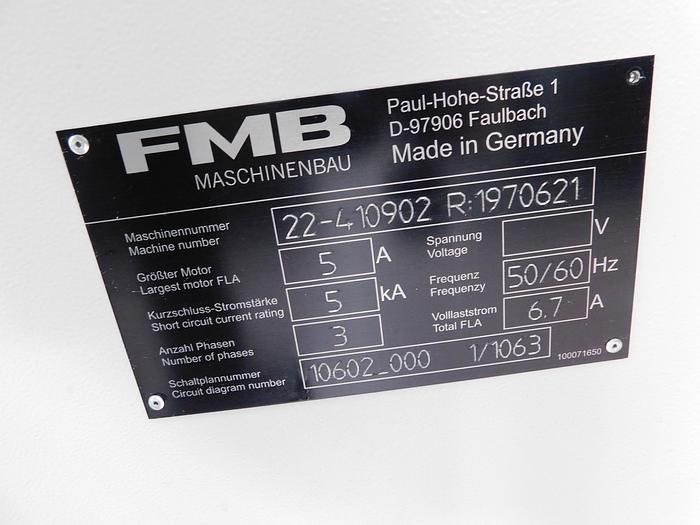

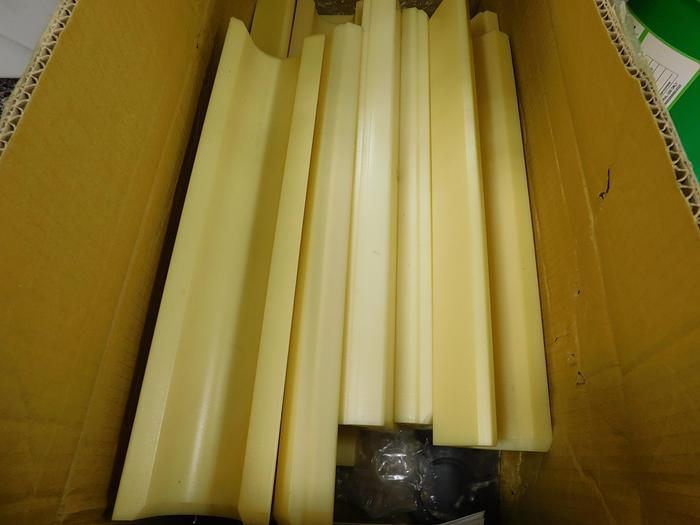

FMB Turbo 5-55 Magazine Barfeed

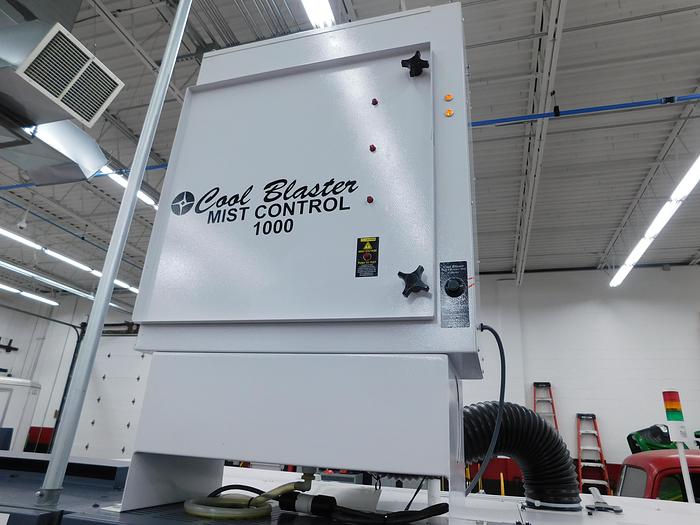

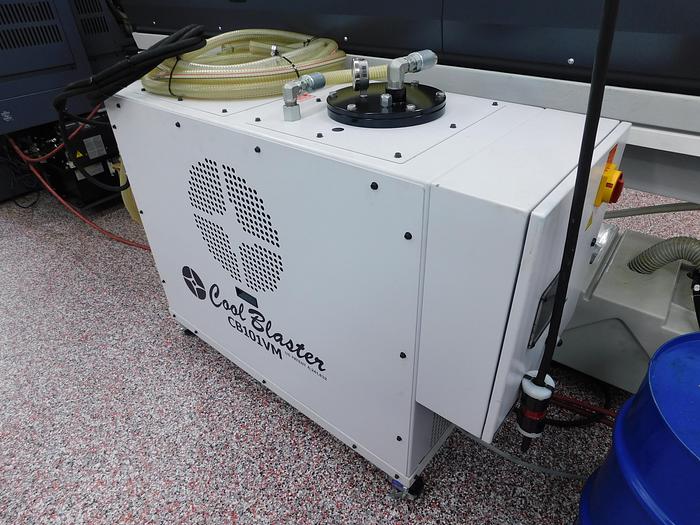

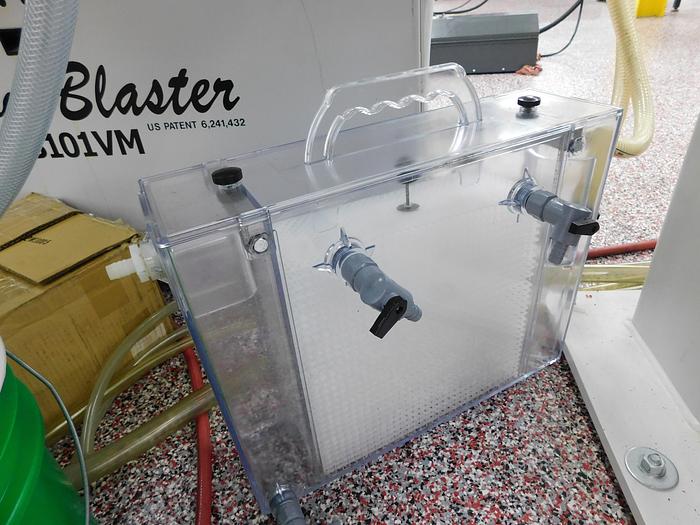

Cool Blaster 1000 Mist Collector

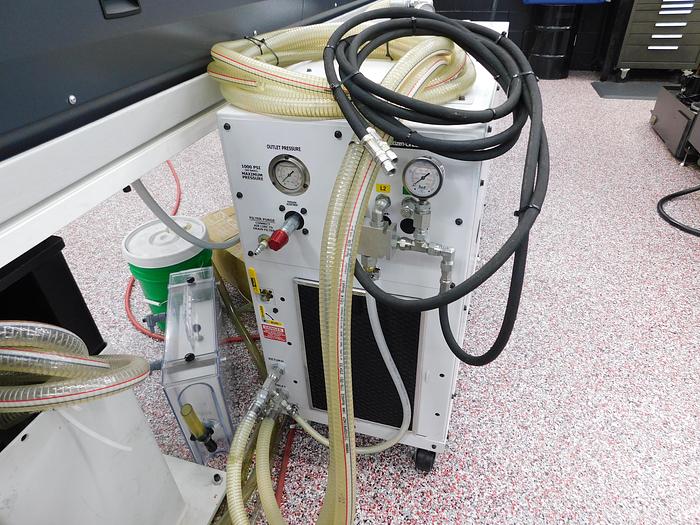

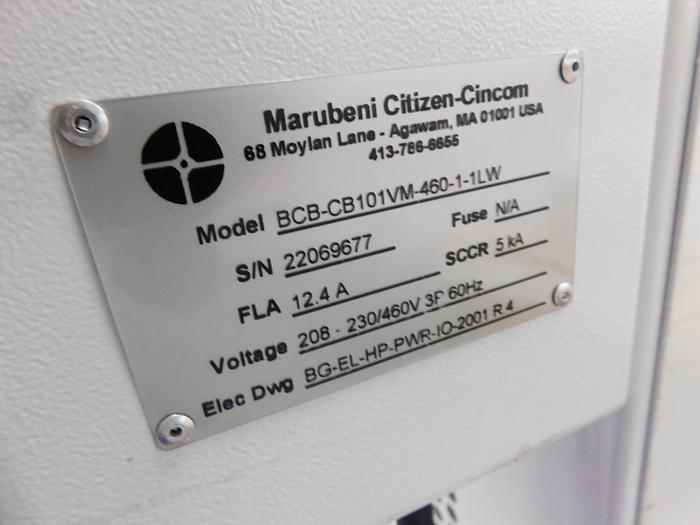

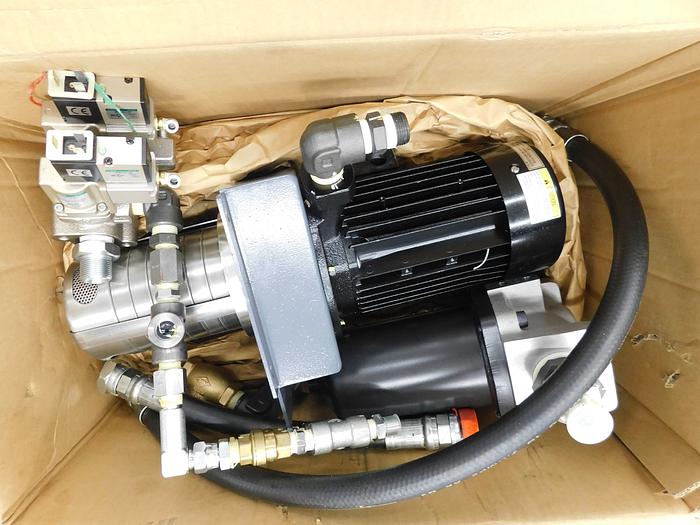

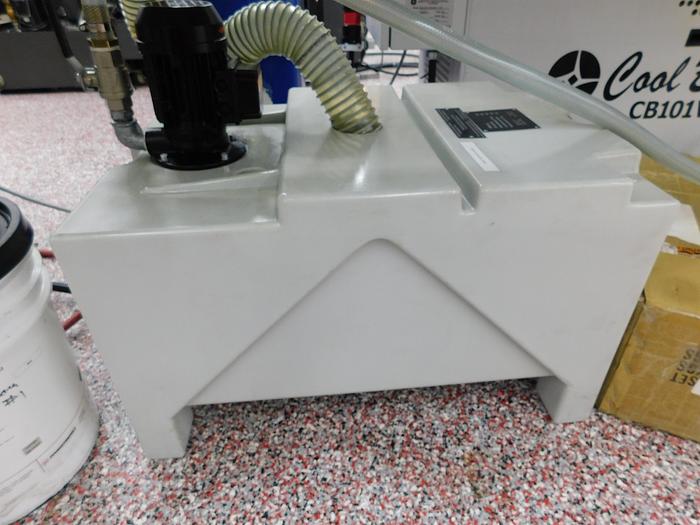

Cool Blaster CB101VM Single Line High Pressure System

Parts Catcher & Parts Conveyor

Tool Monitor

Tool Life Management

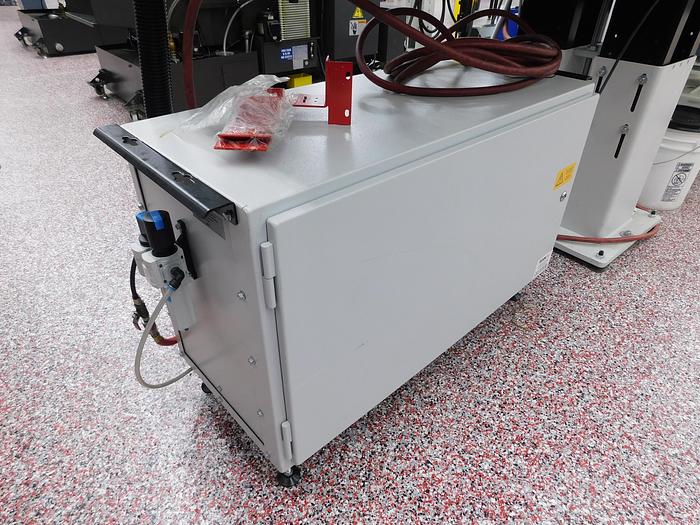

High Voltage Conversion Kit

PH Horn Cutoff System

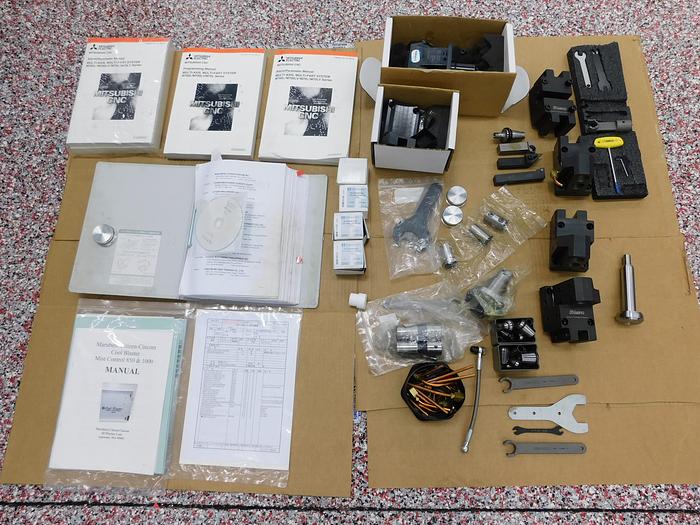

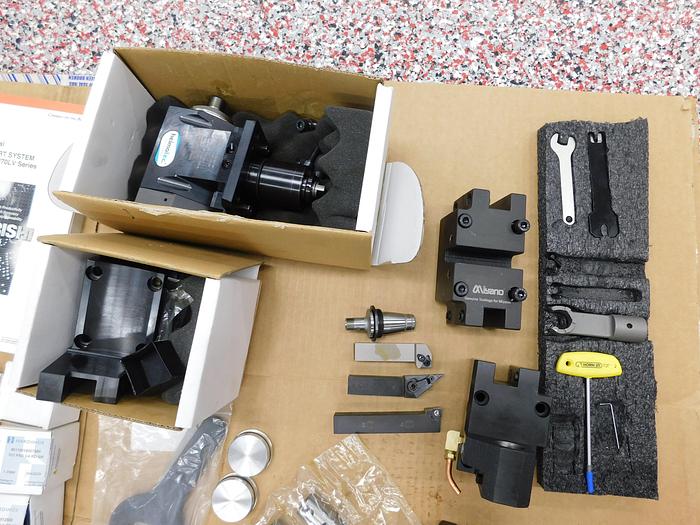

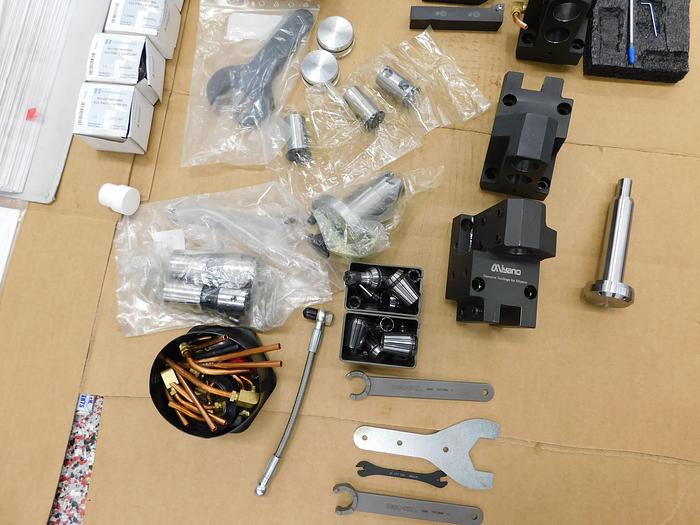

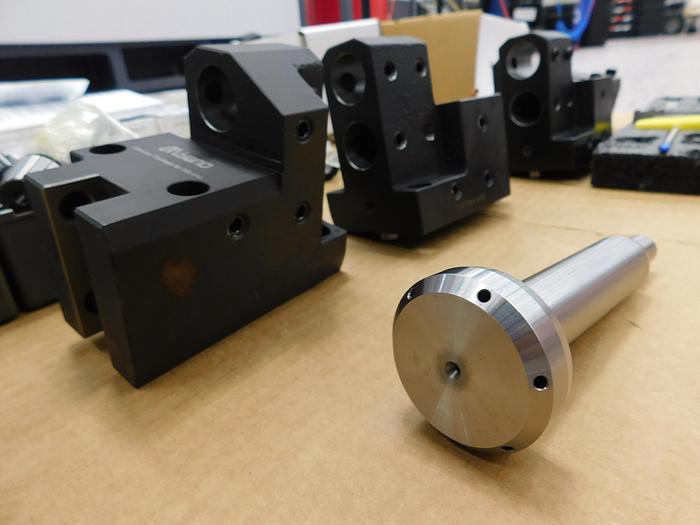

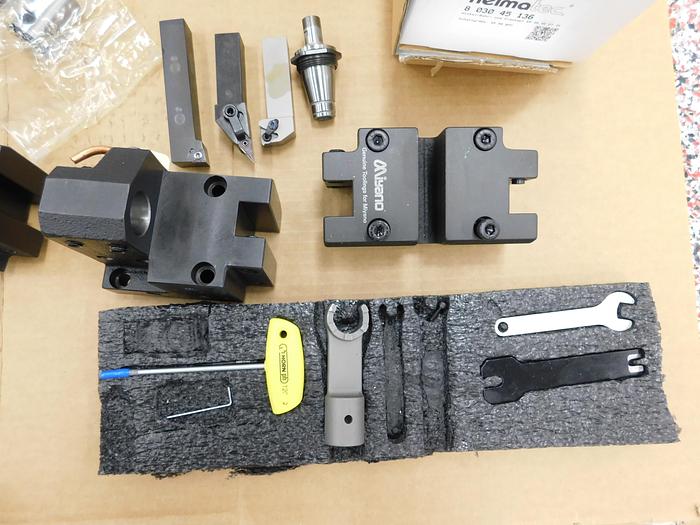

Assortment of Tooling

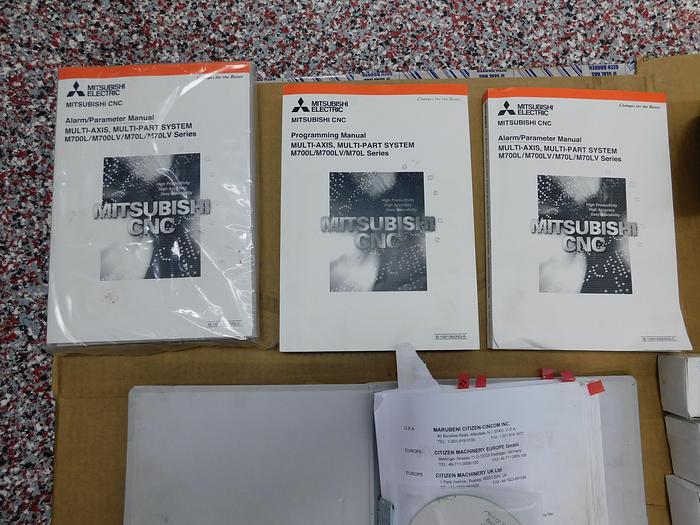

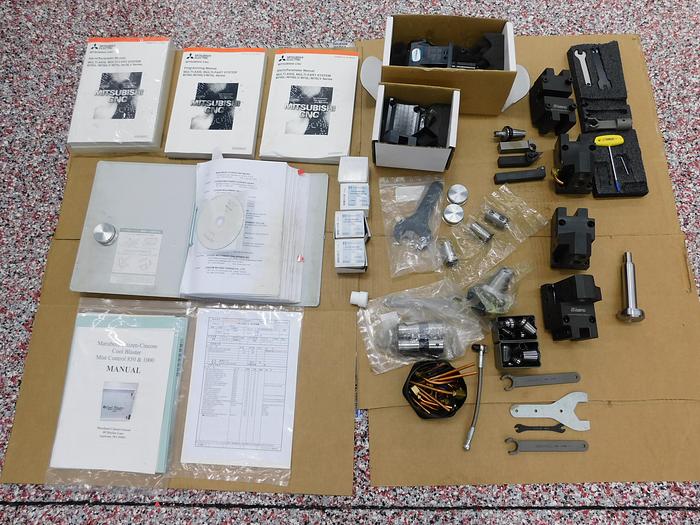

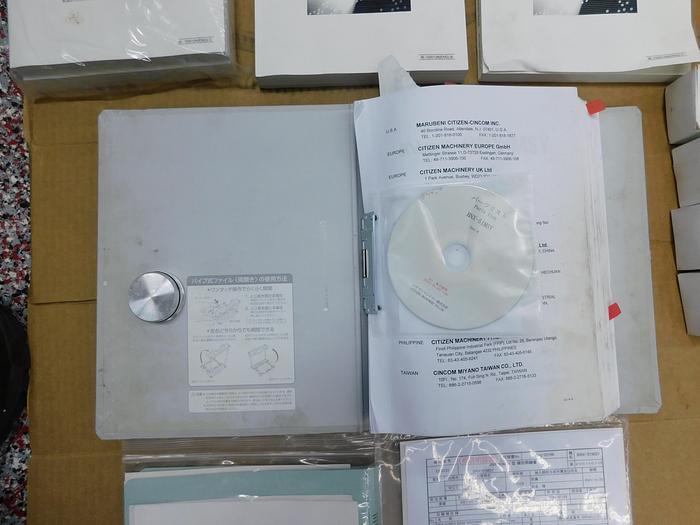

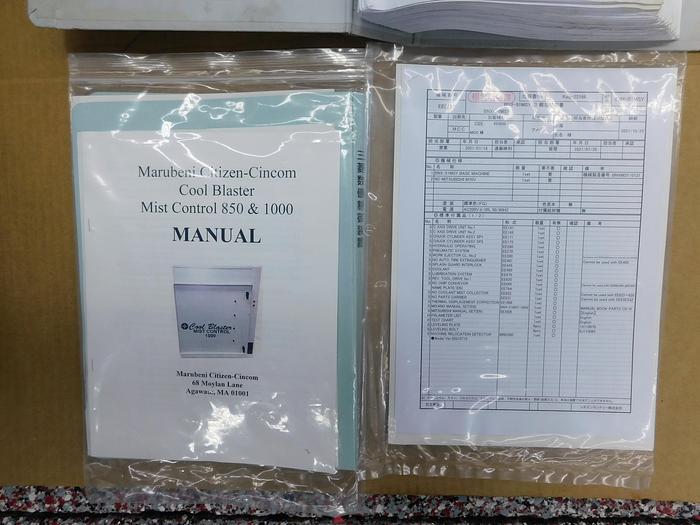

All Available Manuals


DIMENSIONS:

Mill: 120"x70"x112"

Chip Conveyor: 124"x32"x72"

Chip Blaster: 56"x21"x45"

FMB Bar Feeder: 204"x36"x58"

Specifications

ManufacturerCitizen Miyano
ModelBNX 51MSY CNC Turning Center
Year2021
ConditionUsed
