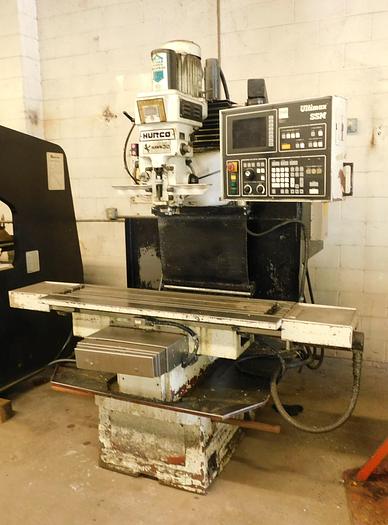

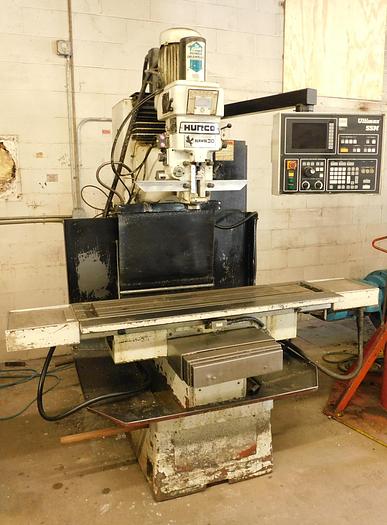

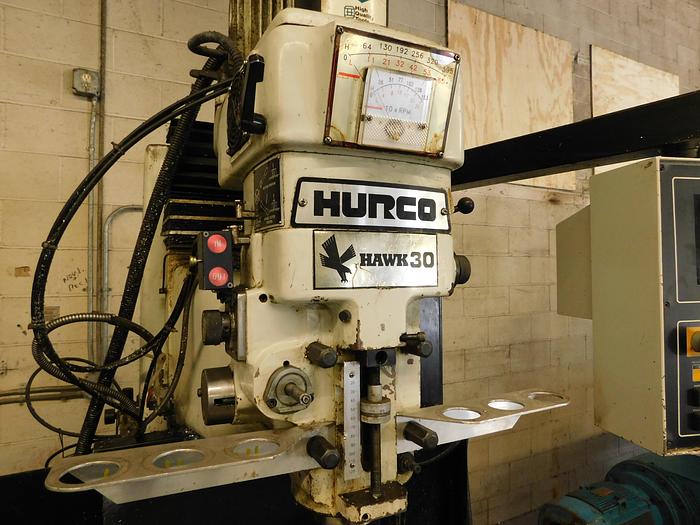

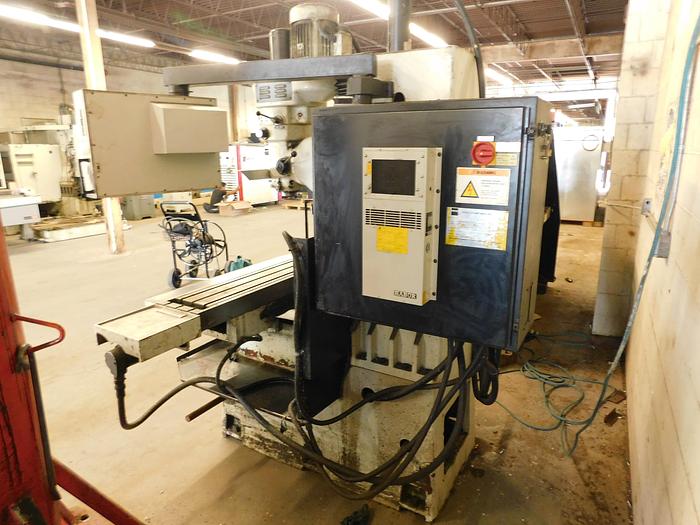

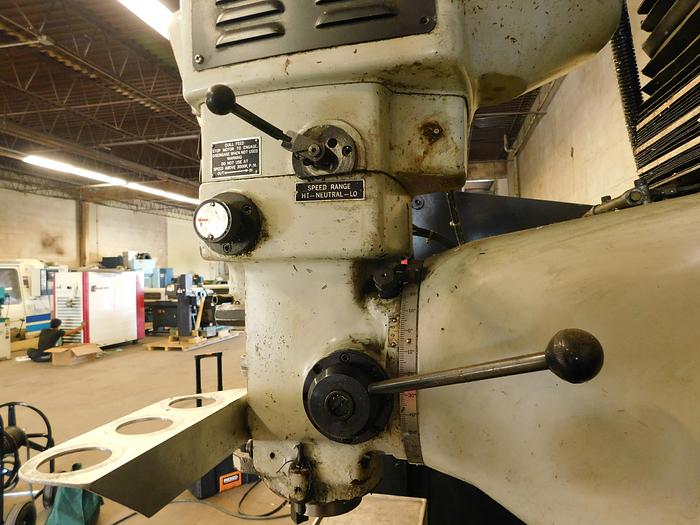

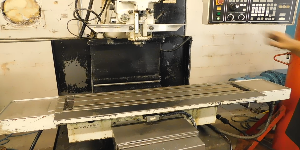

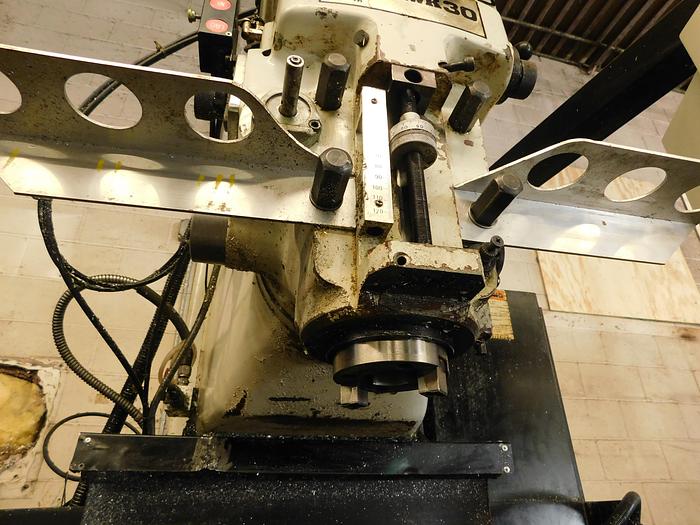

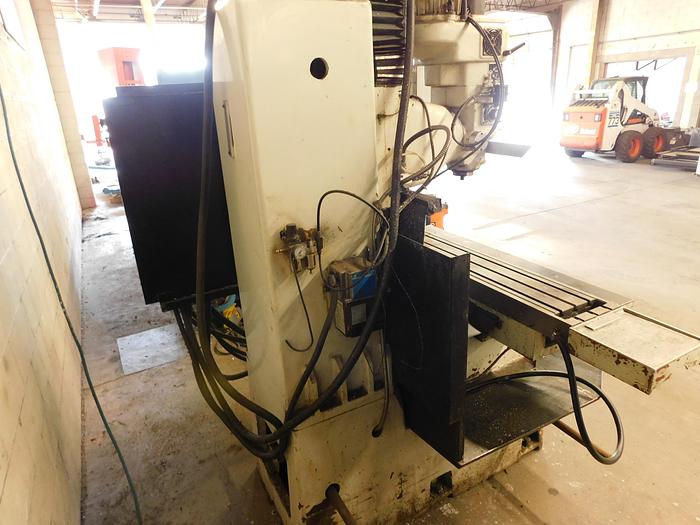

Hurco Hawk 30 SSM CNC Mill

Make: Hurco

Model: Hawk 30 SSM

Year: 1991

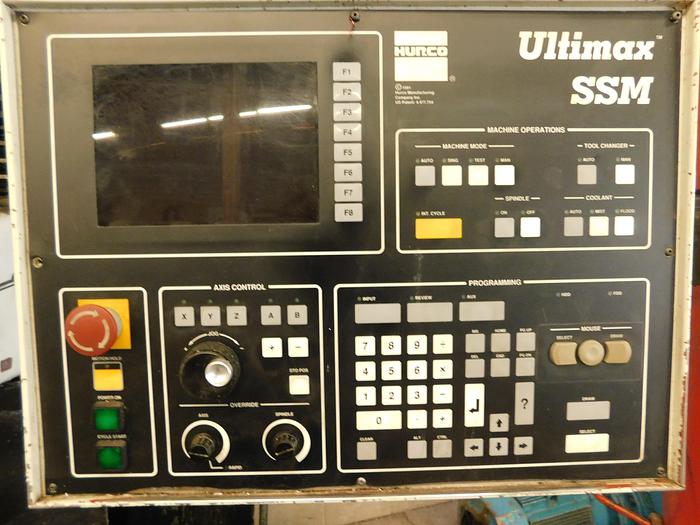

Controls: Hurco Ulitmax SSM CNC 3-Axis

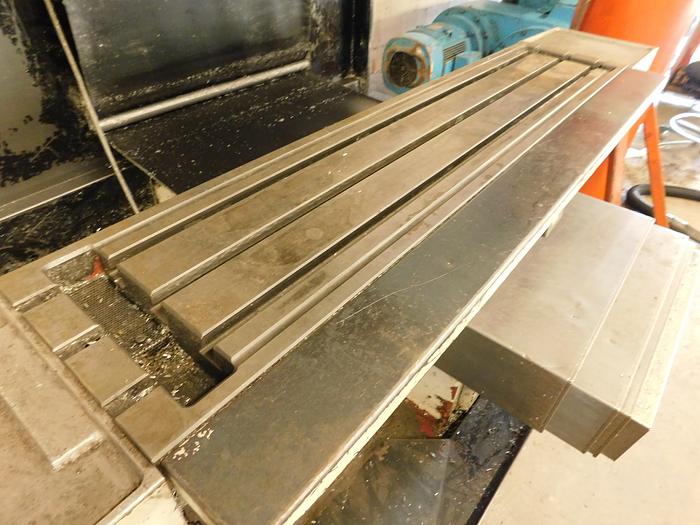

Table Size: 52’ x 11”

Spindle Speeds: to 3,800 RPM

X-Axis Travel: 35”

Y-Axis Travel: 18”

Z-Axis Travel: 20”

Maximum Table Weight: 770 Lbs.

Distance, Spindle Nose to Table Top: 2.4”

Min. 22.4” Max.

Distance, Face of Column to Spindle

Center: 18”

Quill Diameter: 3.94”

Quill Travel: 5”

Feed Rates: X & Y Axis—400 IPM Max

Z Axis- 250 IPM Max

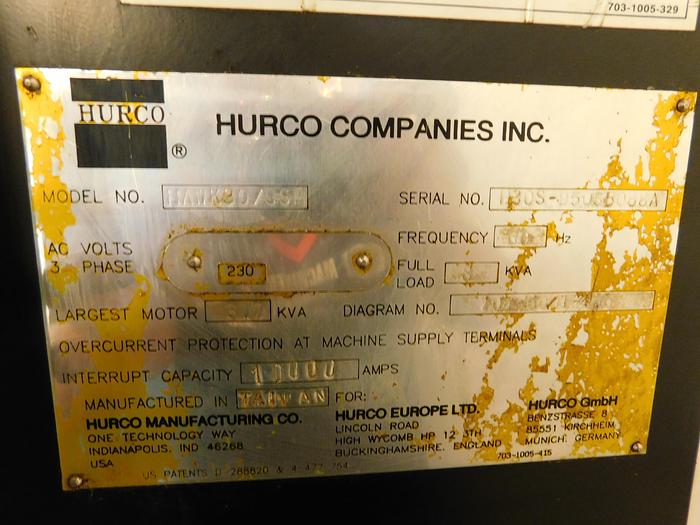

Electrical: 220V, 3Phase

Machine Weight: 5,000 LBS

Equipped With:

Hardened and Ground Ways,

Programmable Spindle Speeds,

Automatic Lubrication,

Coolant System and

Power Draw Bar.
