Daewoo Puma 200C CNC Turning Center

Make: Daewoo

Model: 200C

Serial No: PMP 00346

Year: 1997

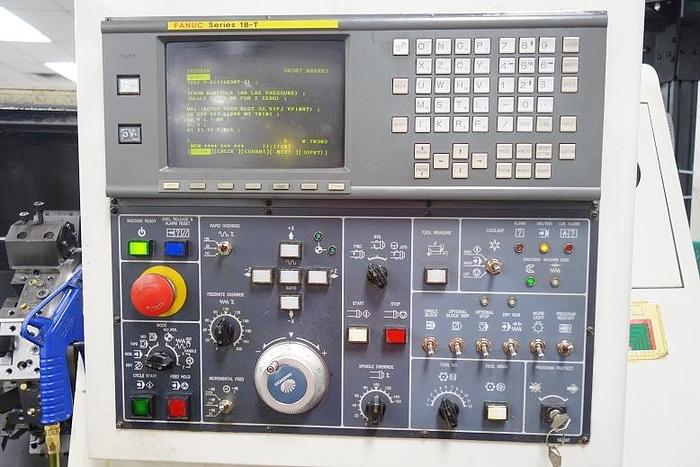

Control: Fanuc 18T

Collet Nose 5C

Max Diameter Bar Capacity: 2.56"

Max Swing Over Bed / Carriage 20.08" / 12.99"

Max Turning Diameter / Std. 13.78" / 8.27"

Distance Between Centers: 20.8"

Max Machining Length: 15.75"

Spindle Motor: 20 / 15 HP

Spindle Speed: 45 - 4500 RPM

Spindle Bore: 2.99"

Spindle Nose: A2-6

Spindle Torque: 188 ft. lbs.

Rapid Traverse Rates(X / Z): 800 / 1000 IPM

X-Axis Travel: 9.53"

Z-Axis Travel:17.32"

Tailstock Taper MT #4

Machine Dimensions: 104"x64"x68"

Machine Weight: 9,010 lbs.

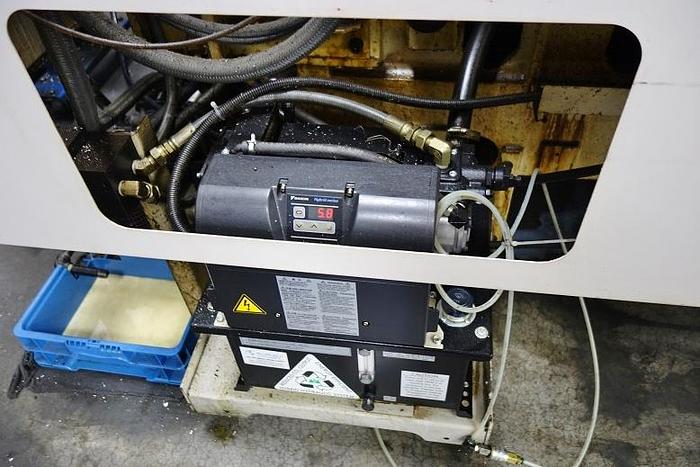

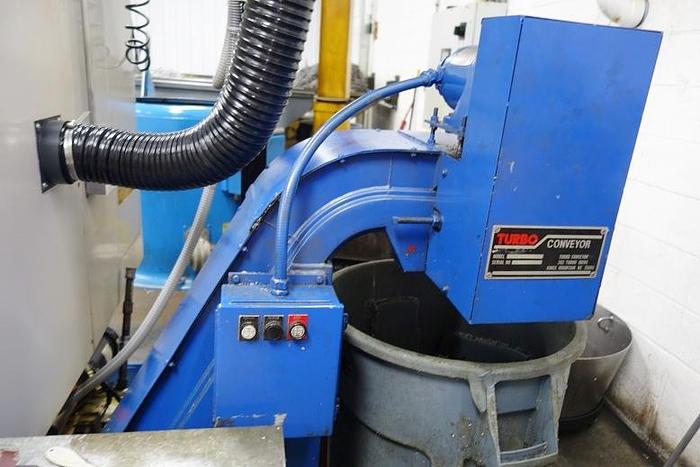

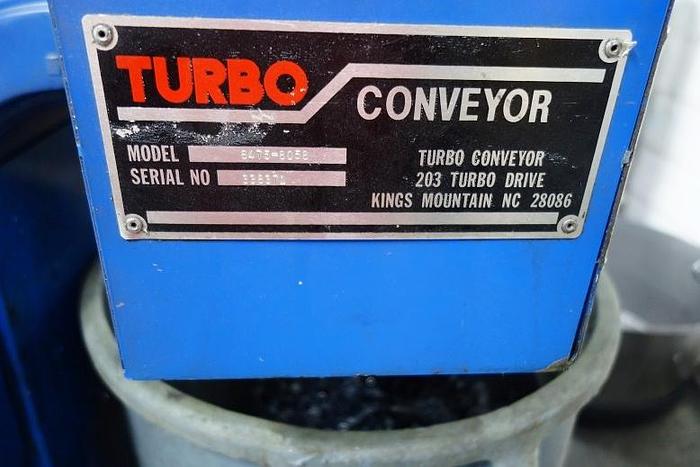

FEATURES: New Hydraulic Pump, Multiple Tool Holders Holders, Turbo Chip Conveyor, Programmable and Manuals.
