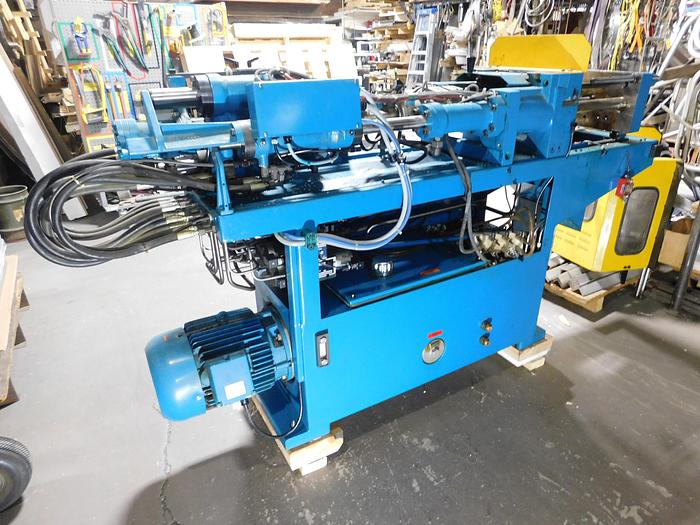

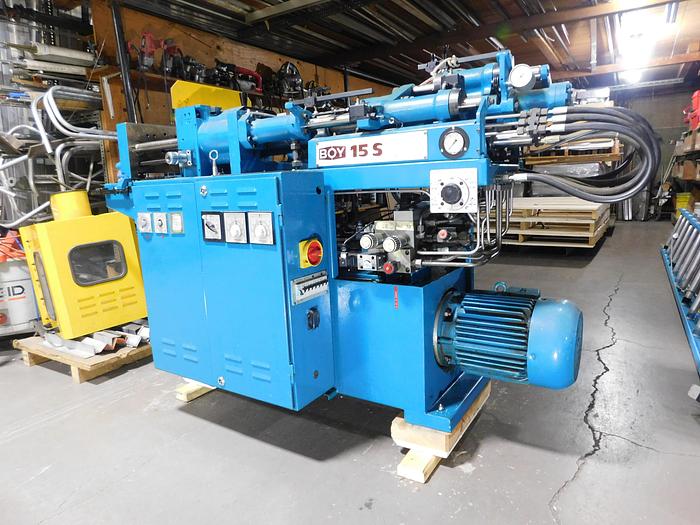

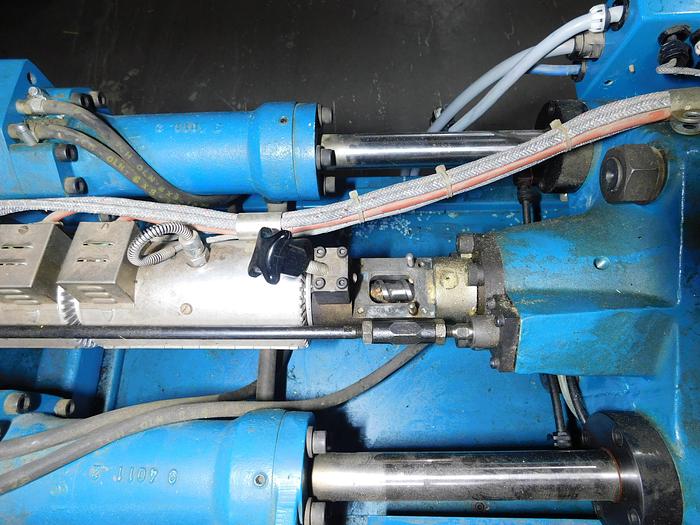

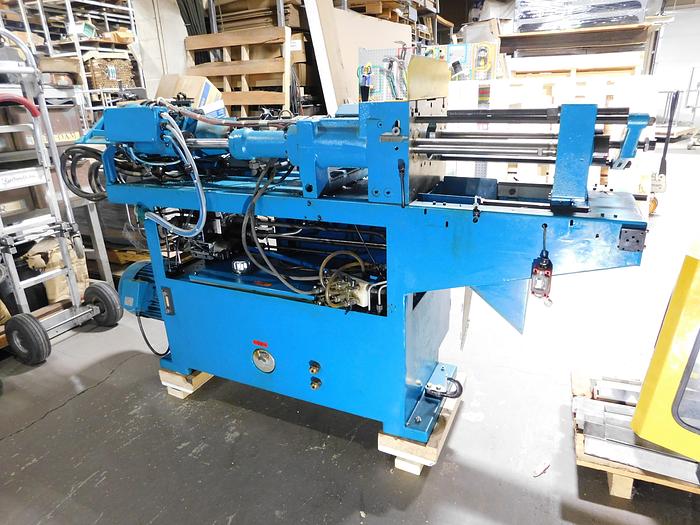

BOY 15S Injection Mold Machine 15Ton

Make: Boy

Model: 15/S

Serial: 11527

Year: 1976

Capacity: 15 Ton

Shot Size: 1.12 Oz

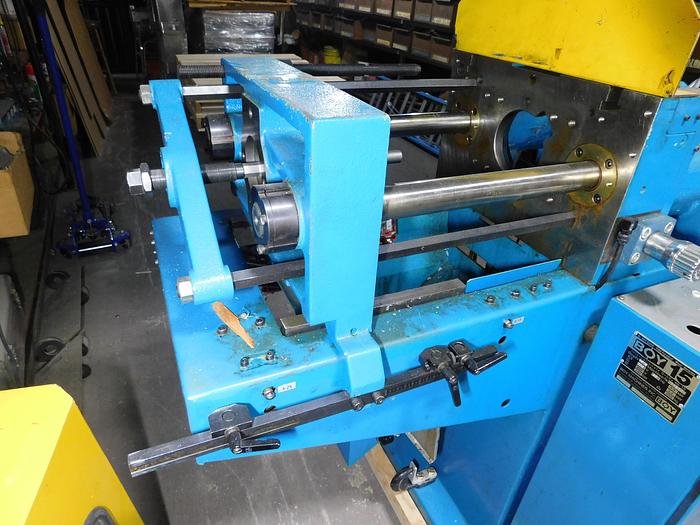

Hydraulic Clamp

Tie bars: 10" x 10"

Platen: 15.75" x 15.75"

Clamp Stroke: 7.87"

Daylight Max: 15.7"

Mold Height: 7.87" Min

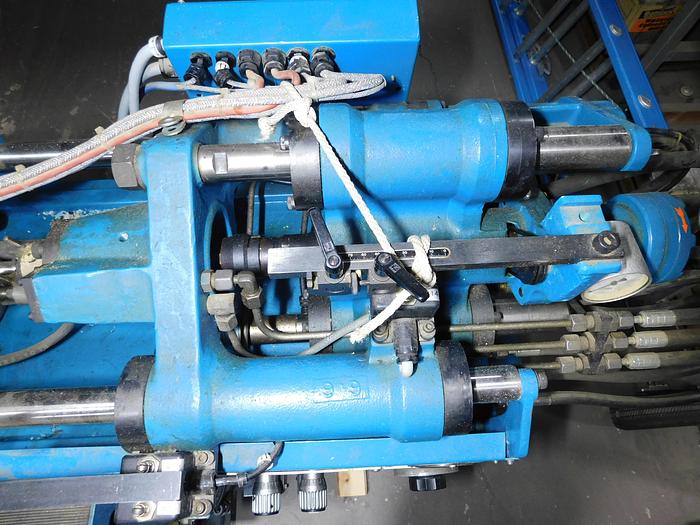

Screw Diameter: 0.94" (24 mm)

Injection Pressure: 18,100 PSI

Screw Speed: 10-310 RPM

Ejector Stroke: 3.15"

Motor: 7 HP

Heater: 3 kW

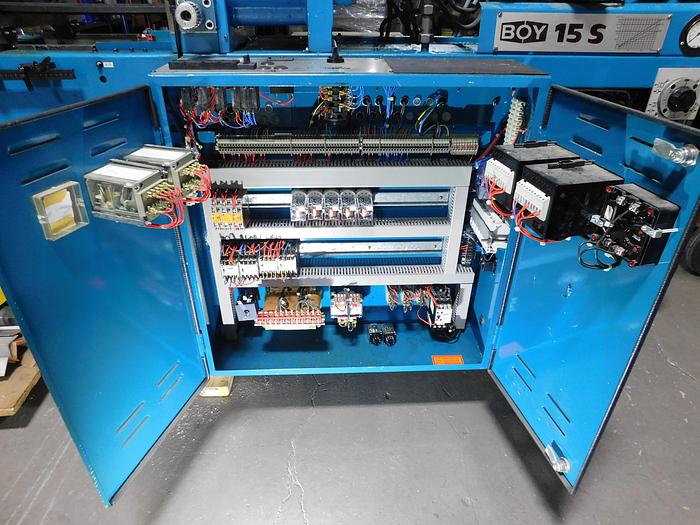

Electrical: 220V / 3Ph / 60 Hz
