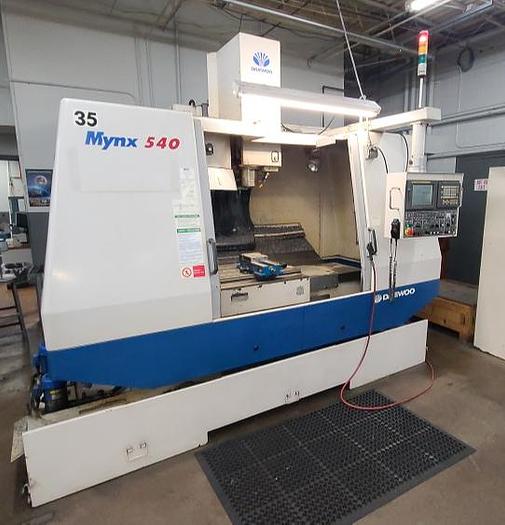

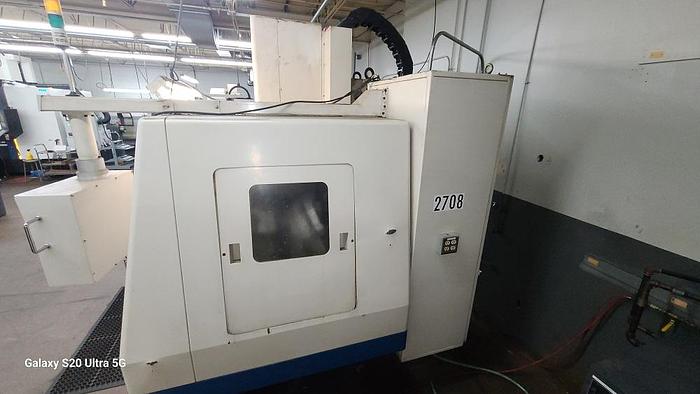

Daewoo Mynx 540 CNC Vertical Machining Center

Make: Daewoo

Model: Mynx-540

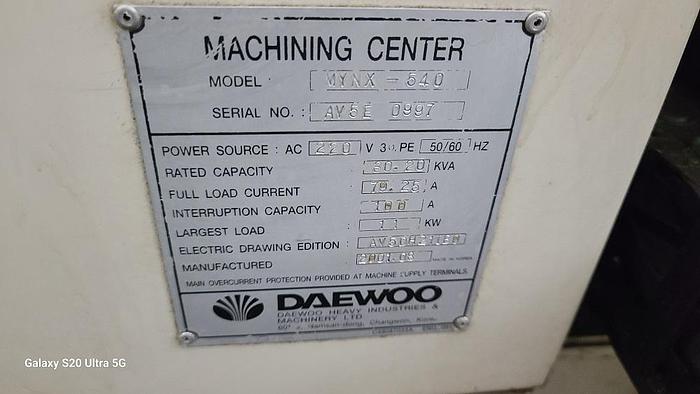

Serial Number: AV5E0997

Year: 2001

Control: Fanuc 21iM

Spindle: 8,000 RPM

Travels:

X-Axis: 40.2″

Y-Axis: 20.0″

Z-Axis: 20.2″

Rapid Traverse Rates: 1,181″ Per Minute

Feed Rates: 593″ Per Minute

Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

Table: 47.2″ x 19.7″

T-Slot Width: 5/8″

Max Weight on Table: 1,800 Lbs

Taper Size: 40

Speed Range: 0 – 8,000 RPM

Spindle Type: Direct Drive

Spindle Power: 20 HP

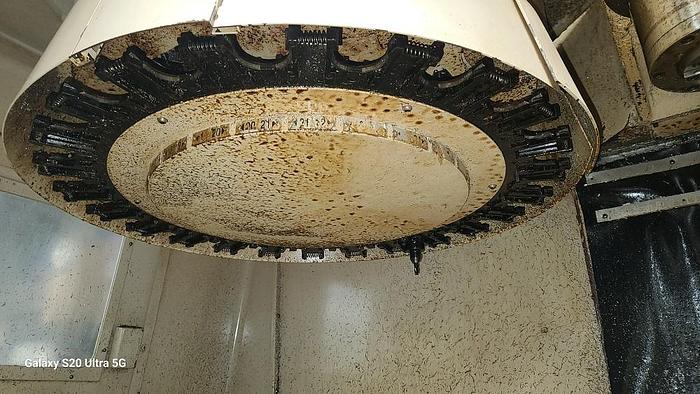

ATC Capacity: 30

Tool Weight: 17.6 Lbs

Max Tool Dia: 5.9″

Max Tool Length: 11.8″

Tool Changing Time: 1.5 Seconds

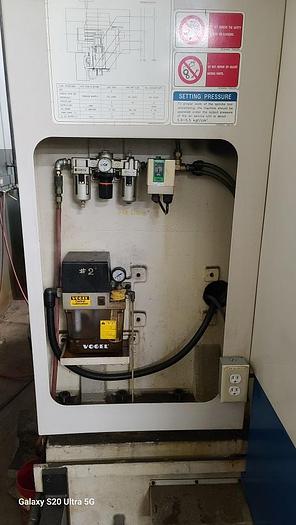

Air Required: 80 psi, 4 scfm

Electrical: 220v / 66FLA / 3Ph

Overall Dimensions: 140″ x 100″ x 110″ High

Overall Dimensions: 170″ x 100″ x 110″ High W/Chip Conveyor

Weight: 16,500 lbs

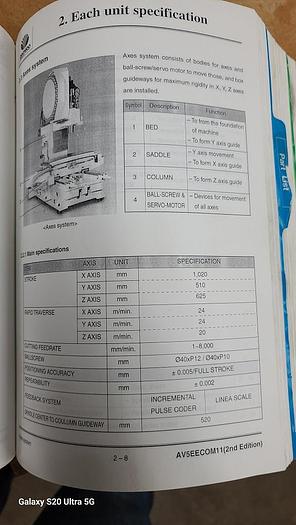

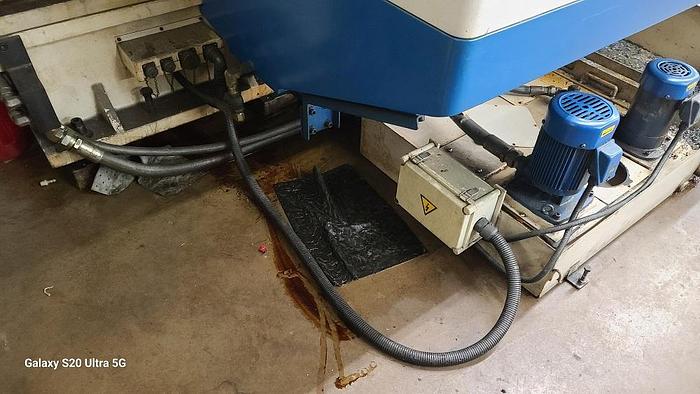

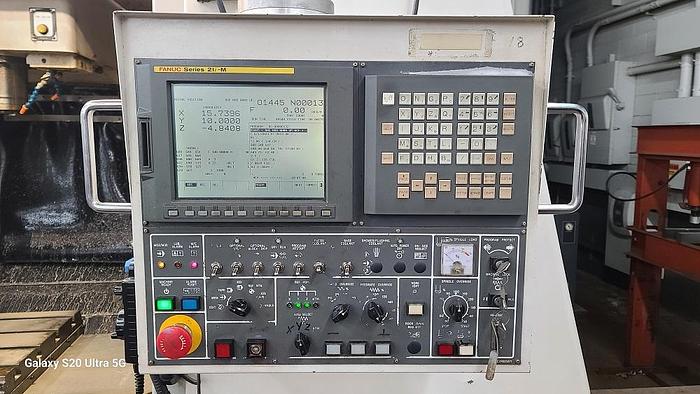

Includes: Pendant Control, Rigid Tapping, Brushless servo drive motors on all axis, Telescopic way covers, Flood Coolant system and Manuals.

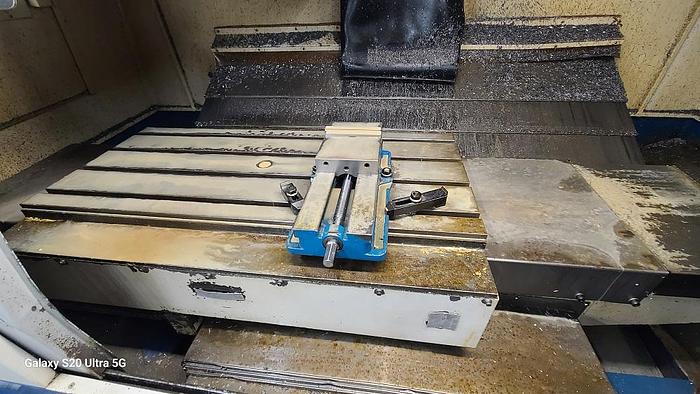

Note: Vise Not Included
