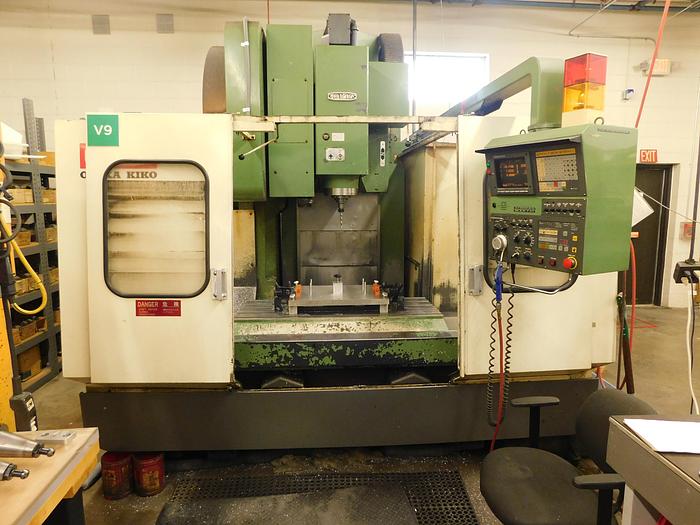

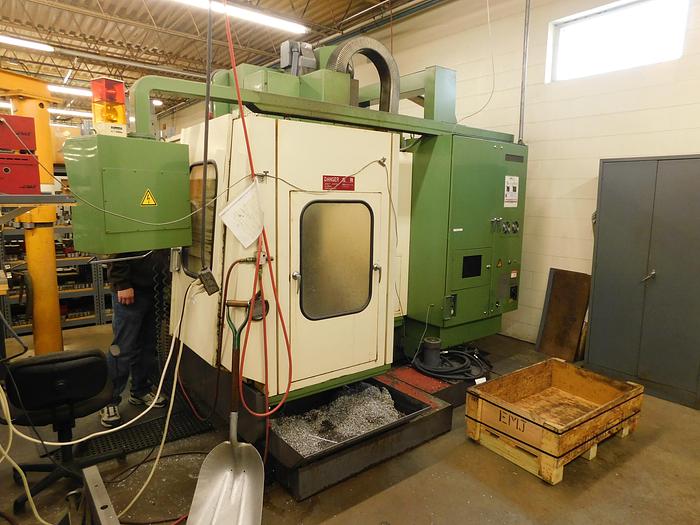

OKK PCV510 CNC VMC

(Subject to buyers to verification)

Make: OKK

Model: PCV 510

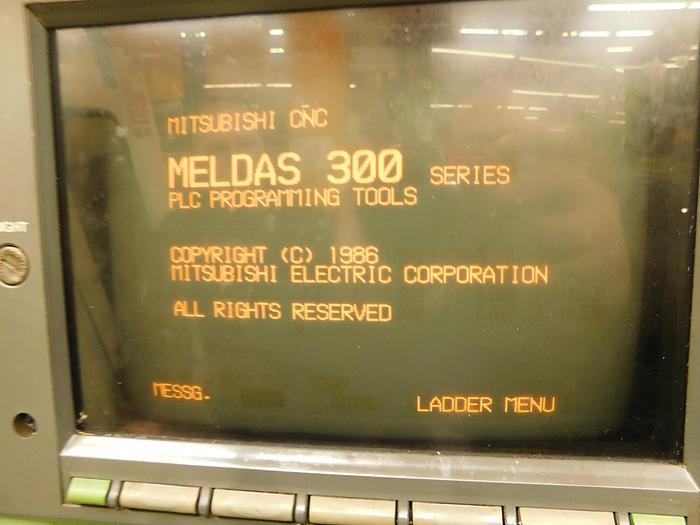

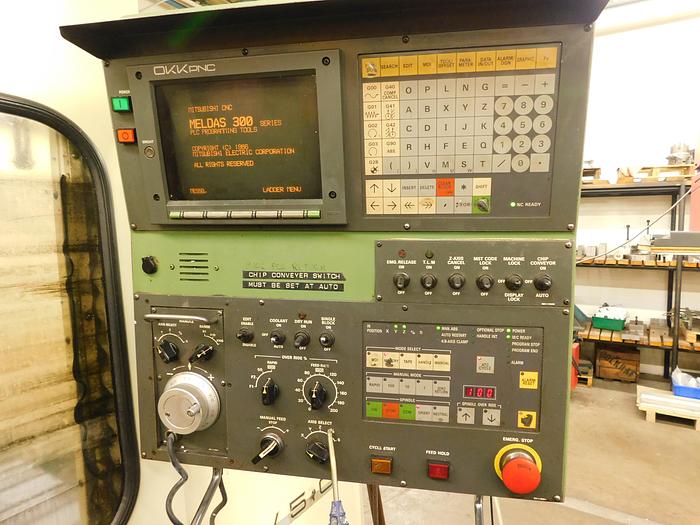

Control: Mitsubishi

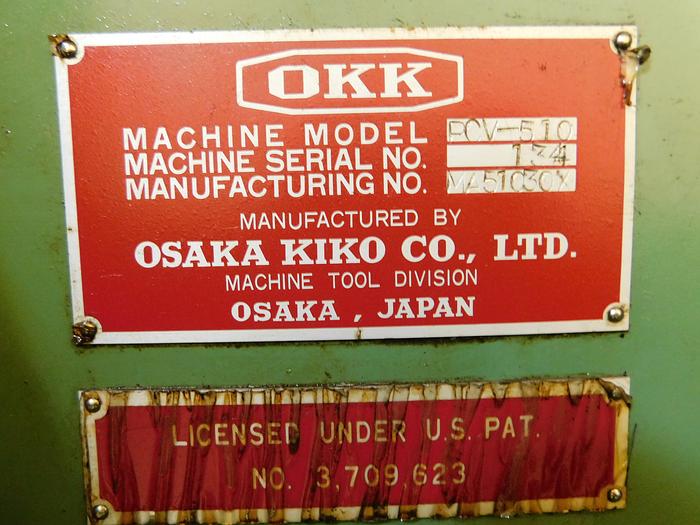

Serial No: 134 MA 510 30 X

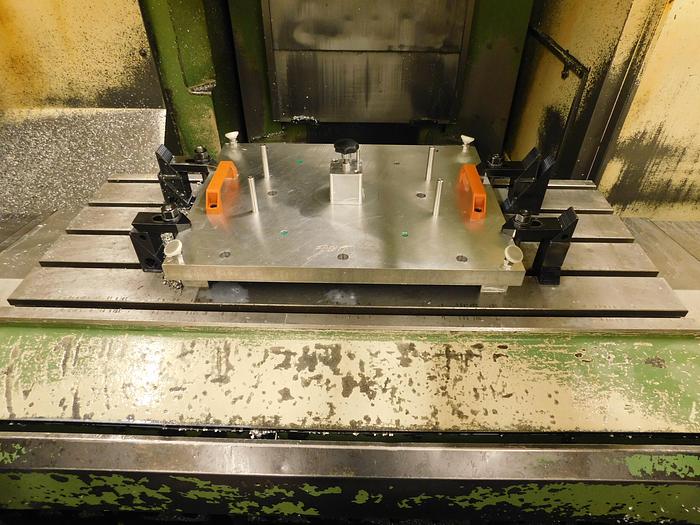

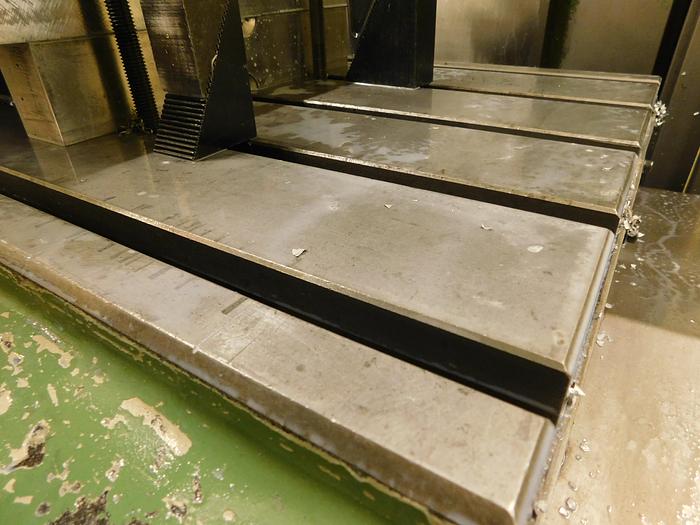

Table Size:  50” x 20.47” (Fixtures and hold downs not included)

Table Travel:  (X) 40.16"  (Y) 20"  (Z) 20"

Table Load Capacity:  2200 Lbs.

Table Top to Spindle Nose:  7.87” - 27.95”

Spindle Center to Column:  22.05”

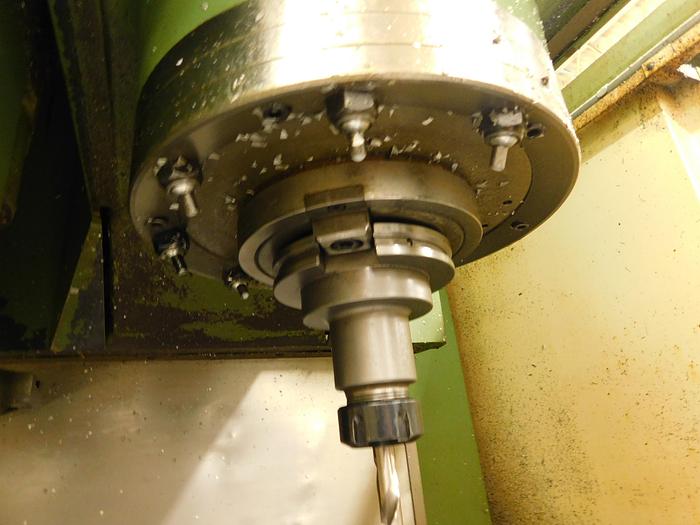

Spindle Taper:  CAT-50

Spindle Speed:  30 - 6000 RPM

Spindle Motor:  AC 15/10 HP

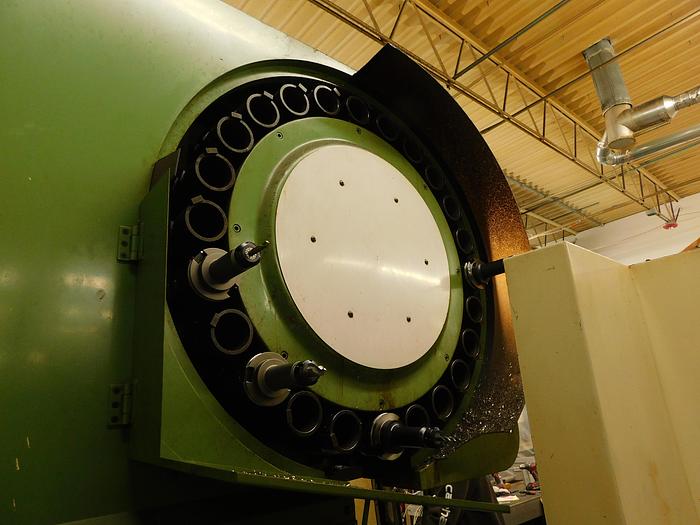

Tool Magazine:  24 ATC

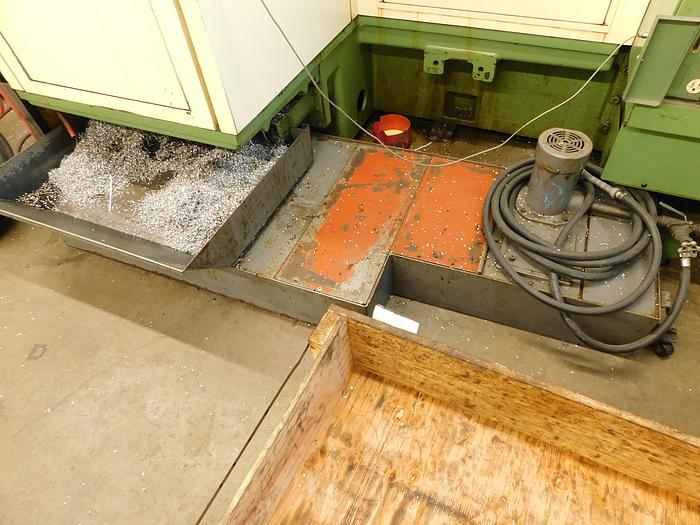

Chip Conveyor (Screw Type,

Rapid Traverse Rate:  (X, Y) 630 IPM  (Z) 472 IPM

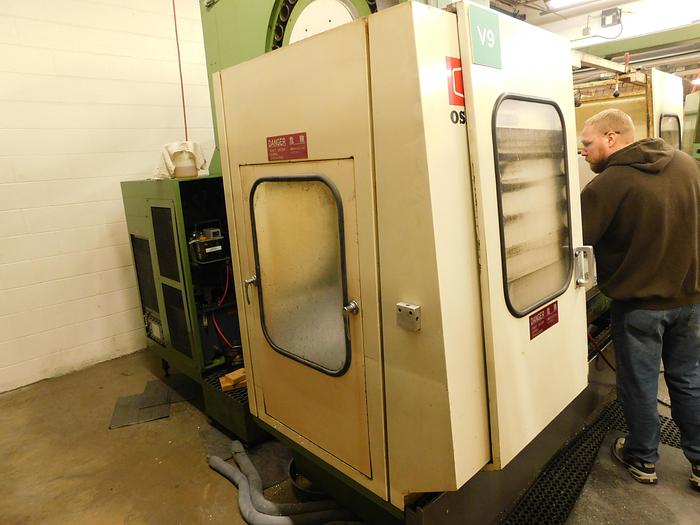

Full Splash Guards

Moving Column Design

Linear Guideways on All Axes

Machine Weight:  16,500 Lbs.

All items are sold AS-IS and AS-Inspected

THIS MACHINE IS STILL IN PRODUCTION. AT OUR CLIENTS REQUEST, THE FACILITY IS NOT OPEN TO THE PUBLIC FOR INSPECTIONS. IF PURCHASED & PAID BEFORE 2/13/23 R&R CAN PROVIDE A BASIC LIFT AND LOAD ONTO YOUR CARRIER AT A REDUCED RATE OF $500 LOADED OUT THE DAY OF 2/13/23
