Hitachi Seiki HT20J CNC Lathe
Sold
Hitachi Seiki HT20J CNC Lathe
$8,950 (USD)
Location:New Hope, MN
Description

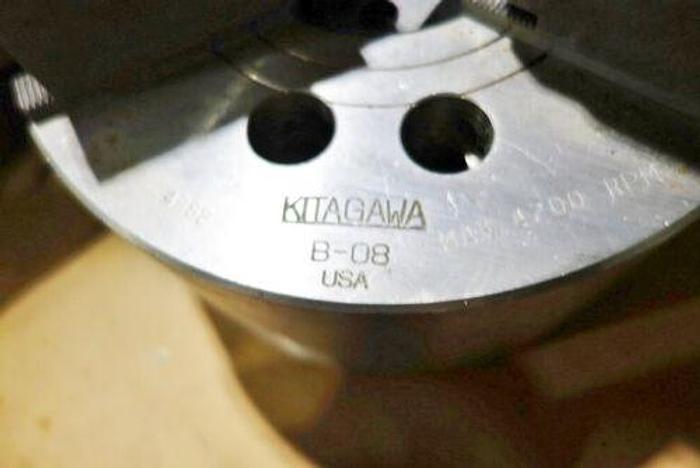

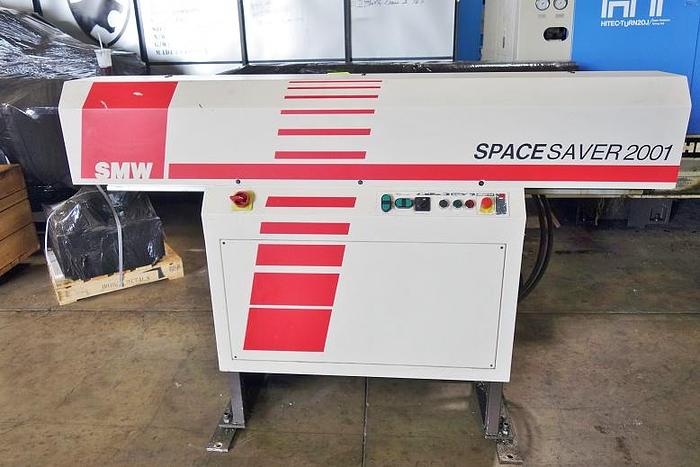

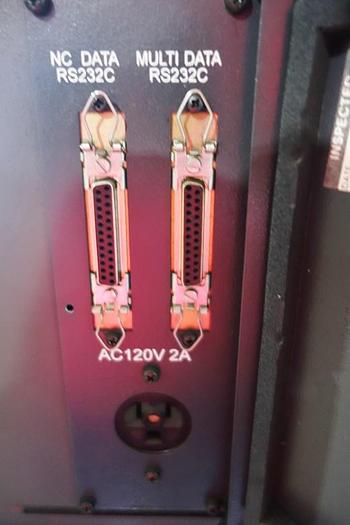

RAPID TRAVERSE RATE Equipped With: Kitagawa 8″ 3-Jaw CNC Chuck, Assortment of over 20 K45 tool holders, SMW Model 2001 Space Saver Bar Feeder, RS-232C PORT INTERFACE FOR DNC OPERATION, Takes an 8″ HYD Chuck. (No chuck is available with machine), TOOL EYE (AUTOMATIC TOOL PRESETTING ARM), FULLY PROGRAMMABLE TAILSTOCK BODY & QUILL, RIGHT DISCHARGE LIFT-UP TYPE CHIP CONVEYOR, STANDARD COOLANT SYSTEM WITH TANK & PUMP This machine can be inspected under power in Mpls, MN. If you would like to come inspect this machine. Please contact me to schedule an inspection. This machine will be sold as-is and as-inspected.
Specifications
Manufacturer | Hitachi Seiki |
Model | HT20J |
Year | 1998 |
Condition | Used |
Serial Number | 3674 |

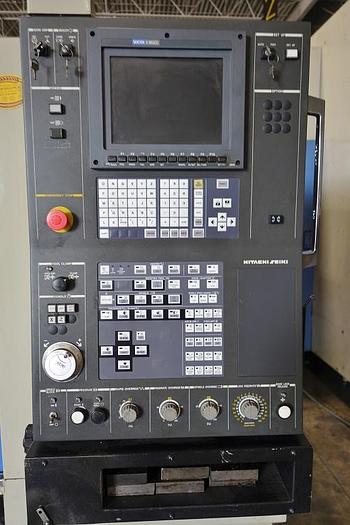

Control | Seicos J Multi (Yasnac J300L) |
Swing over bed | 17.7″ |
Maximum turning diameter | 13.38″ |
Maximum turning length | 15″ |
X axis travel | 8.46″ |
Z axis travel | 15.75″ |

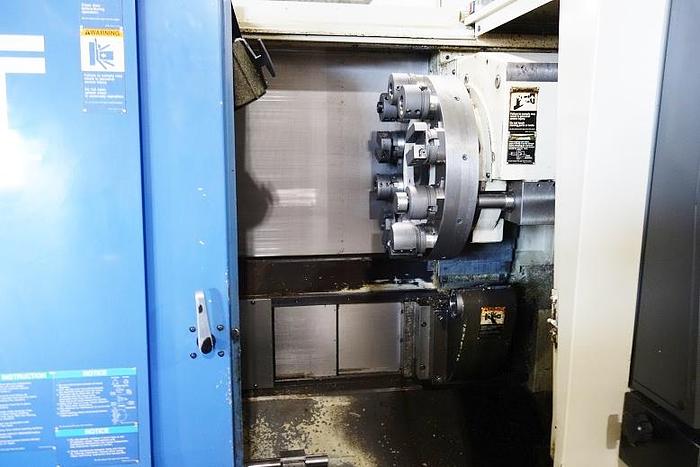

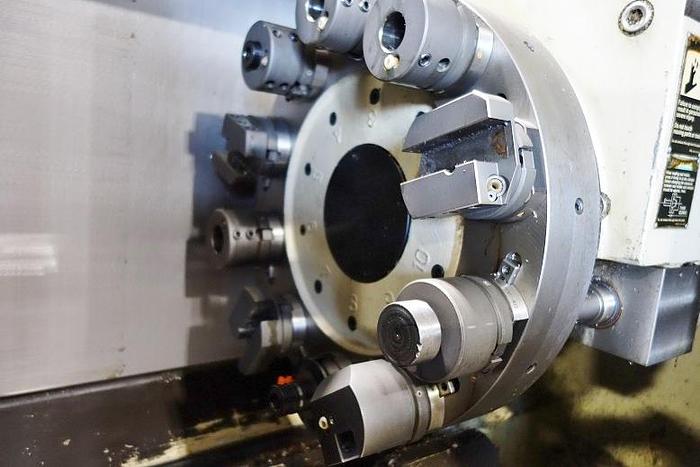

Turret capacity | 12-Position |
X axis | 1181 IPM |
Rapid traverse rate z axis | 1181 IPM |
Spindle nose | A2-6 (Chuck not included) |
Spindle bore | 2.32″ |
Maximum bar capacity | 1.9″ |
Spindle speed | 5,000RPM |
Spindle motor | 20HP |
Tailstock quill taper | #5MT |
Tailstock body travel | 11.8″ |
Machine approximate dimensions | 139″ x 82″ x 80″ |
Machine weight | 10,500LBS |
